Product Details:

Place of Origin: zhengzhou China
Brand Name: Sinolion machinery

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $3,500.00 - $4,500.00/sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case.
Supply Ability: 50 Set/Sets per Month gold trommel screening plant
Get Best Price Contact Now

Detail Information
Applicable Industries: Manufacturing Plant, Energy & Mining Showroom Location: United States, Italy, Brazil, Pakistan, India, Mexico, Australia
Condition: New Type: Gravity Separator
Production Capacity: 98% Voltage: 220V/380V
Weight: 520 KG Warranty: 1 Year
Marketing Type: Ordinary Product Machinery Test Report: Not Available
Video Outgoing-inspection: Provided Warranty Of Core Components: 6 Months
Core Components: Motor, Pump, Gearbox, Other Key Selling Points: Easy To Operate
Port: Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

Specifications

Trommel screeners

If you need to screen alluvial rock gold by watering and panning. It is better to use this kind of machine to improve productivity. This a good assistant for workers to operate. Our customer will maximize economic benefits from that than lack of this machine. More and more owners of this business area are in favor of or have used this product.
There is a brief introduction below.

Trommel screeners of 10-20 tons per hour


1、Mini trommel screener

We specially produce the trommel screener with capacity 10-20 tons per hour.If our customer don't need large machine, it is necessary to choose our mini trommel screener,which is our hot selling products.

***The mini trommel screen is so portable that one male can hold, pull, and move it.
***The mini trommel screen is very diverse performance, with mesh pole diameter from 5-9 mm , with a sluice box and a discharge plate.
***The mini trommel screen can be connected with centrifuge and shaker table,and some other our products for a complete producing line.

Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 0
model
GMTS 0519
mesh material
manganese wire weaving
mesh pole diameter
5-9 mm
drum diameter
500 mm
drum length
1900 mm
feed hopper size
 800*790 mm
machine size
3000x1000x1800 mm
structurer
feeding hopper, screen drum, chassis, wheel, sluice, transmission device
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 1
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 2
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 3


2、Middle size trommel screener

We provide model GMTS 1020 with capacity 10-20 tons per hour, which is larger size than mini trommel screen.It is popular among many customer who need screen the alluvial sand soil about 10 tons per hour.

***The water pump and motor or diesel generator can be installed in the head of the machine, which is convenient for workers to move.
***The drum is rotary by power of chain connected with reducer and motor, which makes drum working sustainable.
***The mini trommel screen is very diverse performance, with mesh pole diameter from 5-9 mm , with a sluice box and a discharge plate.
***Model GMTS 1020 trommel screen can be connected with centrifuge and shaker table,and some other our products for a complete producing line.
model
GMTS 1020
mesh material
manganese wire weaving
mesh pole diameter
5-9 mm
drum diameter
1000 mm
drum length
2000 mm
machine size
3390×1400×2140 mm
input
less than 300 mm
structurer
feeding hopper, screen drum, chassis, wheel, sluice, transmission device
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 4
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 5
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 6

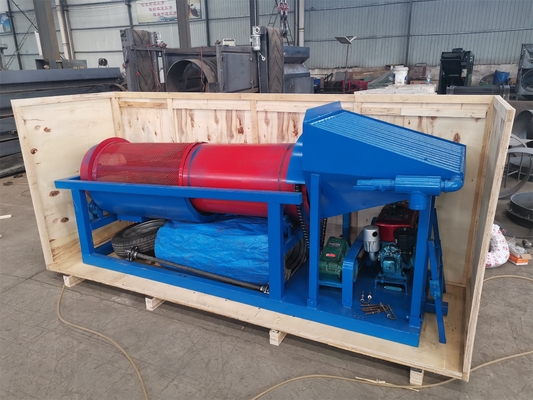

Packing & Delivery
model
GMTS 0519
GMTS 1020
packing size
4 square meter
10 square meter
type of shipping
LCL
LCL
packing
Wooden box
Wooden box
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 7
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 8
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 9
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 10
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 11
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 12
Customer Visit
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 13
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 14
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 15
Comany Information
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 16
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 17
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant 18
Related Products

The complete sets

We provide the whole complete sets for trommel screener, sluice box, centrifuge , shaker table and so on, which displays below.
