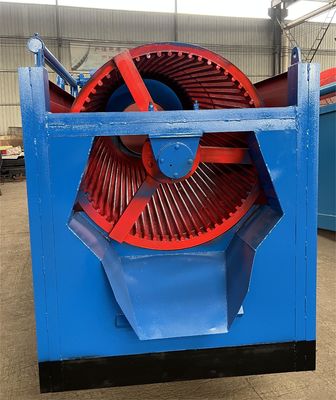

The screen adopts high manganese steel woven screen, which has high efficiency and long service life.The screen is divided into two parts, the first half is smaller than 5mm, and the second half is larger than 5mm. The cylinder has a double-layer structure, and the inner layer is connected to the outer screen by a round steel screen bar structure, which helps prevent direct impact of large materials. The screen greatly extends the service life of the outer screen and improves the screening efficiency of the outer screen.
 |

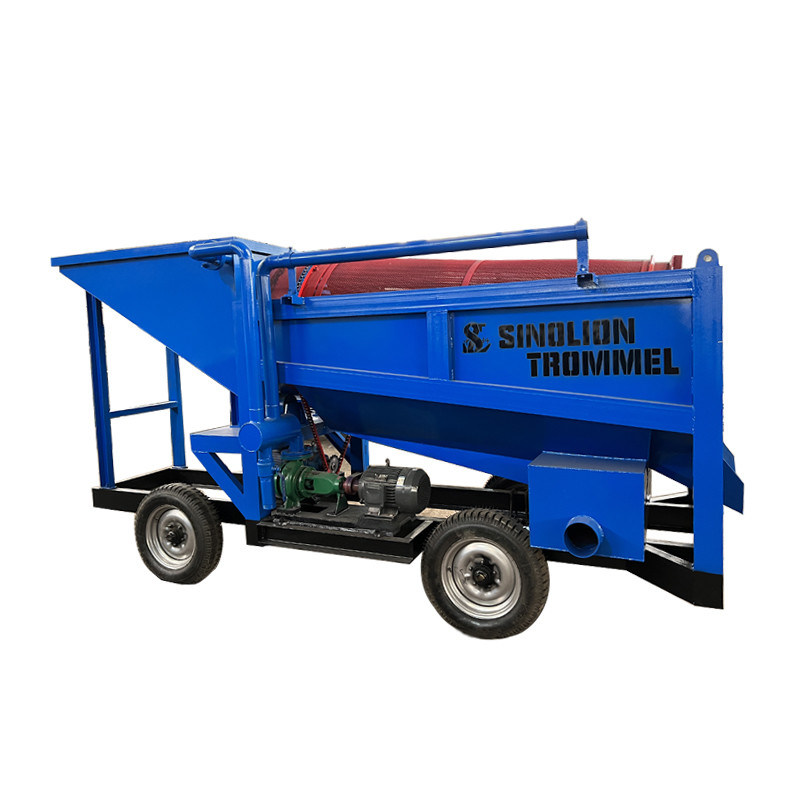

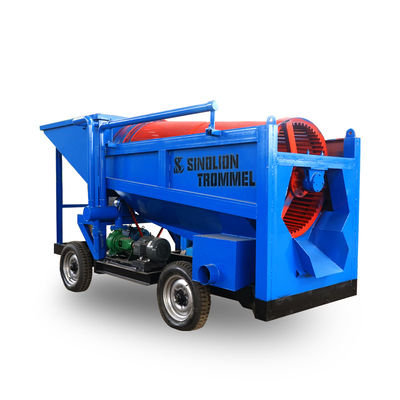

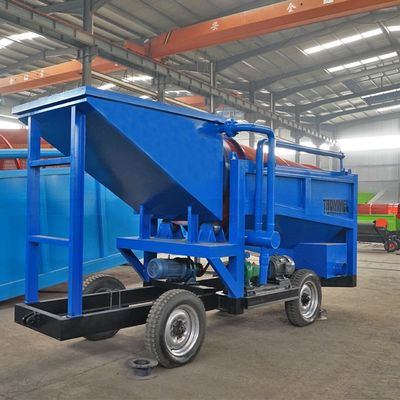

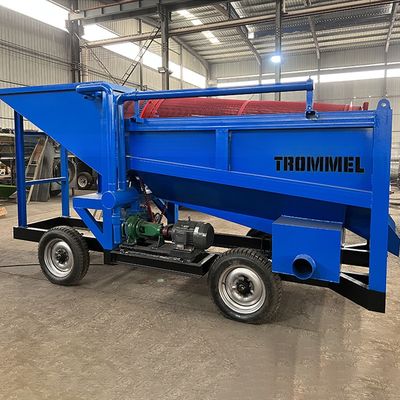

Competitive Mining Equipment for 4350x1350x2350mm Trommel Gold Washing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $5,310.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 10-30TPH | Voltage: | 380V |
| Dimension(L*W*H): | 4350x1350x2350mm | Weight: | 1200 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox, Other |
| Key Selling Points: | Competitive Price | ||
Product Description
Product Description
The mini gold screen equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.
The drum screen mainly consists of motor, reducer, drum device, frame, and inlet and outlet.

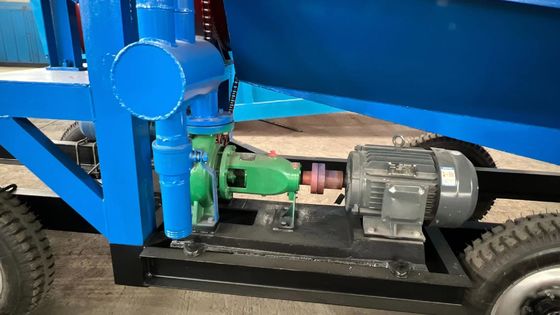

The material first passes through the grille to filter out large pieces of material, and then passes through the bin and enters the screen cylinder. At this time, the high-pressure water in the water pipe cleans the material. At the same time, the motor drives the screen cylinder to rotate through the chain, and the material particles in the screen cylinder follow. The screen drum rotates to a certain height and is thrown down by gravity. It is filtered through the screen while cleaning, forming cleaning and screening.
The above are the supporting equipment of GMTS1020. If you need it, we will configure it for you.
Specification
Model | GMTS-1000x2000 | ||||||
Drum Diameter | 1000mm | ||||||
Drum Length | 2000 mm | ||||||
Gearbox | XWD4-9 | ||||||
Towing Hook | Include | ||||||
Tires Size | 650-16 | ||||||
Rubber Tires Quantity | 4 pieces | ||||||
Spray Pipe Material | Galvanized seamless pipe | ||||||
Capacity | 10-30 tons/hour | ||||||
Engine | Diesel engine Electric engine | ||||||
Sluice Box | 1000x6000mm | ||||||
Grizzly | Steel bar diameter 20-30mm Bar spacing 50mm Input hopper: 0.9m³ | ||||||
Packing & Delivery
Company Profile
FAQ
Q1: How long is the delivery time？
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
