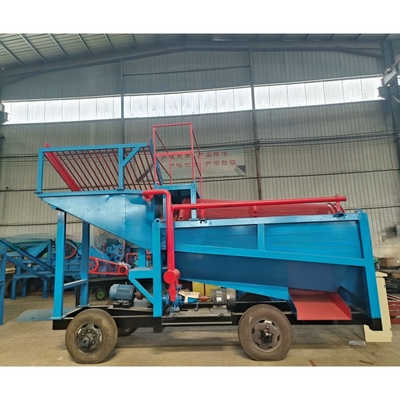

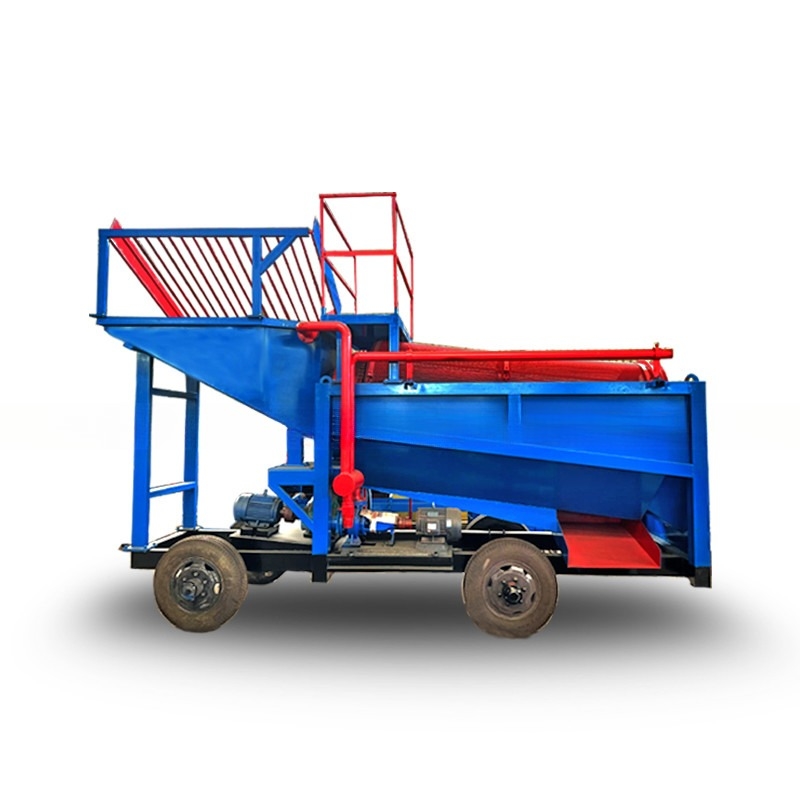

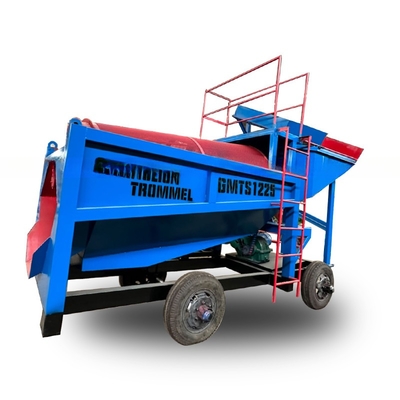

Mobile Trommel Gold Washing Plant for Alluvial Gold Processing Line Mining Equipment
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $7,750.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Egypt, United Kingdom, United States, France, Germany, Brazil, None |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 30-50t/h | Voltage: | 380V/415V/440V |
| Dimension(L*W*H): | 4.3*1.65*2.22m | Weight: | 1200 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox |
| Key Selling Points: | Patented Product | Application: | Alluvial Gold Washing |
| Product Name: | Gold Wash Plant | Processed Materials: | Separating Mine |
| Installation: | Under Guidance | Function: | Screening\separation\sorting\sieving |
| Usage: | Mining Concentration | Material: | Steel |
| Capacity: | 30-50t/h | After Sale Service: | One Year |
| Color: | As Your Request | ||
Product Description
Product Description
The mini gold screen equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.The processing capacity of this equipment can reach 30-50t/h per hour, which is suitable for mineral processing sites, and the recovery rate of screened gold can reach 90%.

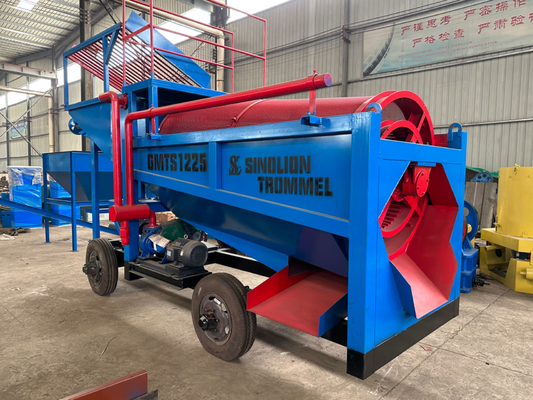

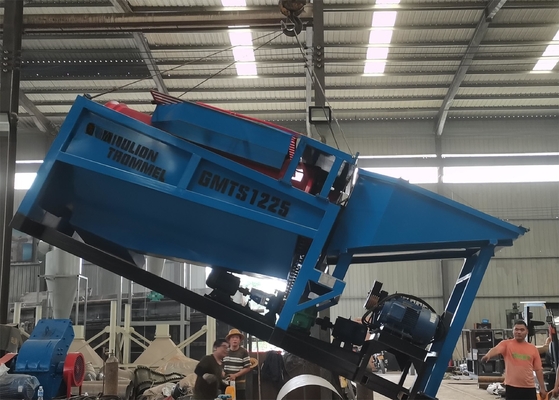

Gold Mobile Trommel Screen 1225 can be washing and screening.When the alluvial gold and placer gold enter the drum device, due to the incline and rotation of the drum device, the materials on the screen surface are flipped and rolled, so that the qualified materials are discharged through the outlet at the bottom of the rear end of the drum, and the unqualified materials are discharged through the outlet at the rear end of the drum. Discharge from the discharge port.

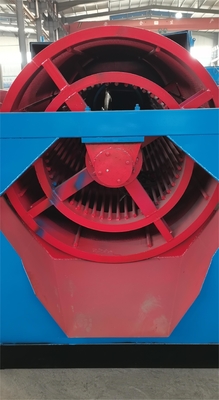

The screen is divided into two parts, the first half is smaller than 5mm, and the second half is larger than 5mm.Can better screen materials.The water pipes are distributed on the outside, which can better flush the materials in the barrel and prevent clogging.The water pipes are distributed on the outside, which can better enter and exit the materials and flush the materials in the barrel to prevent clogging. The water pipes are galvanized seamless pipes or round steel, which can solve the problem of non-durable water pipes and greatly improve the service life of the fuselage.The frame on the outside of the screen drum can effectively prevent the screen drum from moving backward during operation.
convenient and fast.
Products Details
Specifications
Model | GMTS-1200x2500 | ||||||
Drum Diameter | 1200mm | ||||||
Drum Length | 2500 mm | ||||||
Towing Hook | Include | ||||||
Mixing section length | 400mm | ||||||
Rubber Tires Quantity | 4 pieces | ||||||
Spray Pipe Material | Galvanized seamless pipe | ||||||
Capacity | 30-50 tons/hour | ||||||
Engine | Diesel engine Electric motor | ||||||
Sluice Box | 1000x6000mm | ||||||
Grizzly | Steel bar diameter 20-30mm Bar spacing 30mm Input hopper: 1.3m³ | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
Company Profile
Sincerely welcome to send your inquiry, you can get best quotation and professional service!
FAQ
Q1: How long is the delivery time？
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
