The cylinder is a single-layer screen, which is used when the materials do not contain bulk materials. The advantage of the single-layer screen is that the entire cylinder is lightweight, which can reduce the weight and energy consumption of the entire equipment.
 |
5-10tph Gold Washing Machine Mini Trommel Gold Concentrator for Construction Works
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 5-10TPH | Voltage: | 380V |
| Dimension(L*W*H): | 3000x800x1550mm | Weight: | 600 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Other |
| Key Selling Points: | Patented Product | Application: | Alluvial Gold Washing |
| Color: | Customized Making | Feeding Size: | 300mm |
Product Description
Product Description

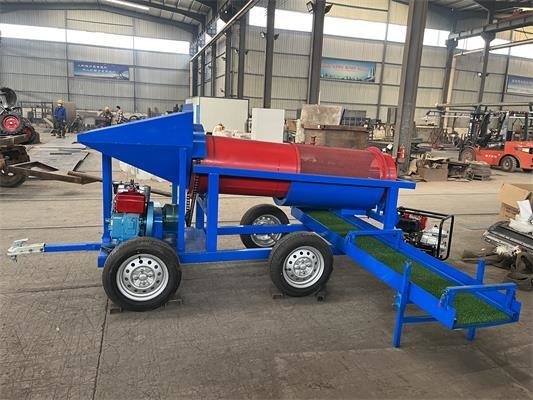

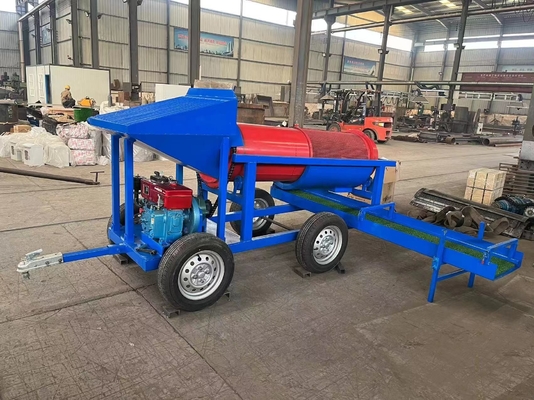

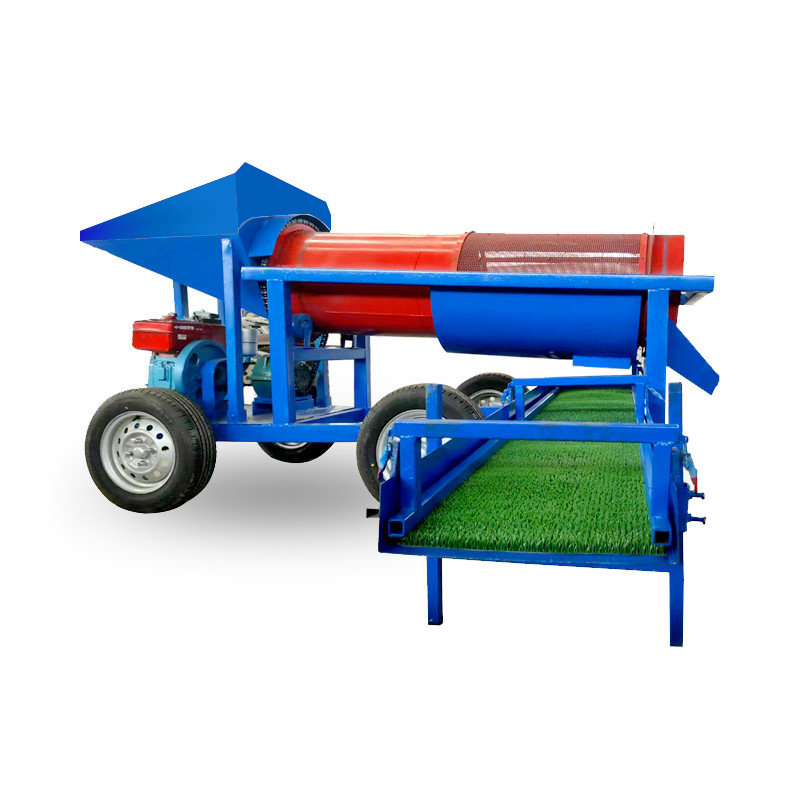

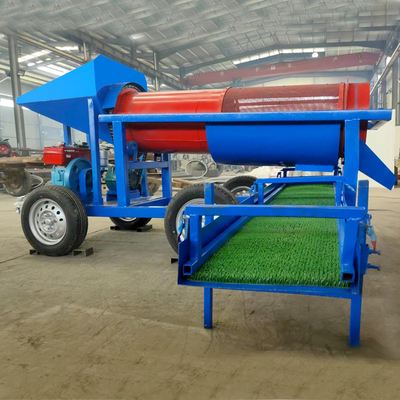

The mobile gold mining trommel screen is a movable gold separation platform, mainly used in dry land, beaches, and ancient rivers. It is a gravity mineral separation equipment with the characteristics of low investment, less labor, fast return on investment, simple operation, and flexibility.Suit able for placer gold and alluvial gold.GMTS0519 can process 5-10 tons of materials per hour, with a recovery rate of up to 90%
The gold washing trommel 0519 can be washing and screening. The gold selection drum screen machine is mainly composed of frame, bin, screen drum, idler assembly, transmission part, tire and other parts.The trommel screen is equipped with a diesel engine, which has a long service life and does not need to worry about outdoor power generation. It is economical, durable, safe and powerful.
The screen adopts high manganese steel woven screen, which has high efficiency and long service life. The screen is easy to replace and will not block.
Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collecting.

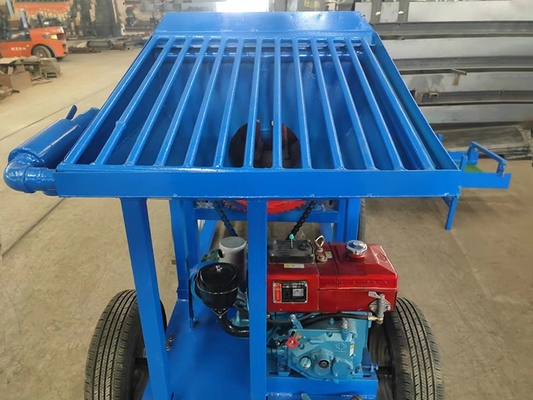

The grille can intercept large pieces of material outside, and smaller placer gold and alluvial gold enter the hopper for screening, which is beneficial to
improving the efficiency of the screening hopper.
Specification
Model | GMTS-500x1900 |
Drum Diameter | 500mm |
Drum Length | 1910mm |
Capacity | 5-10 tons/hour |
Power | 1.5kw |
Motor | Diesel engine |
sluice box | 350*1500mm Angle adjustable 2-8° |
Grizzly | Steel bard diameter 20mm Bar spacing 50mm Input hopper: 0.5m³ |
Weight | 600kg |
