Product Details:

Place of Origin: Henan, China
Brand Name: ZHENGZHOU SINOLION

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00/sets >=1 sets
Get Best Price Contact Now

Detail Information
Applicable Industries: Manufacturing Plant, Farms, Home Use, Construction Works , Energy & Mining, Other, Environmental Friendly, Metallurgical Industry, Chemical Industry Showroom Location: Canada, United States, Italy, Germany, Philippines
Condition: New Type: Gravity Separator, Mobile
Production Capacity: 5-10t/h Voltage: 220V/380V/440V
Dimension(L*W*H): 3.0m*0.8m*1.6m Weight: 600 KG
Warranty: 1 Year Marketing Type: New Product 2023
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Motor, Pump, Gear, Engine, Gearbox, Other
Key Selling Points: Easy To Operate Application: Alluvial Gold Washing
Product Name: Gold Mining Machine Keywords: Gold Separation Machine
Name: Gold Mining Wash Plant Color: As Your Request
Capacity: 5-10T/H Usage: Mining Concentration
Recovery Rate: 94-98% Processed Materials: Alluvial Gold Placer Gold

Product Description

Product Description
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 0
The mobile gold trommel screen is a movable gold selection platform, mainly used in dry land, beaches, and ancient rivers. It is a kind of gravity mineral processing equipment, which has the characteristics of less investment, less labor, quick return on investment, simple operation, and flexibility.
Specifition
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 1
GMTS 0519
Trommel diameter:500mm
Trommel length: 1910mm
Power: 5.5HP/ 1.5Kw
Capacity: 5-10 tons/hour
The size of the feed port:≤300mm
The size of the outlet: 0-100mm
Nozzle material: seamless pipe Nozzle diameter: 42 mm
Hopper size: 800*790mm
Round steel diameter: 20 mm
Round bar size: 50 mm
Hopper volume: 0.5 m3
Model
Trommel diameter
(mm)
Trommel length
(mm)
Capacity
(t/h)
Power
（kw）
GMTS0519
500
1910
5-10
1.5
Working Principle
The trommel screen is mainly composed of a motor, a reducer, a drum device, a frame, and a material inlet and outlet. The motor is connected with the roller device through the reducer through the coupling, and drives the roller device to rotate around its axis.
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 2

Raw material loading

Raw materials input through the inlet of the hopper will be pushed into the sieve by the strong water pressure of the spray head installed in the hopper.
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 3

Washing

Through the rotation of the drum sieve, the raw material is washed by water and selected through the gold pan.
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 4

Fine gold collection

The light soil and sand are washed away by the water, and the heavier gold will gather in the gold pan.
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 5
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 6

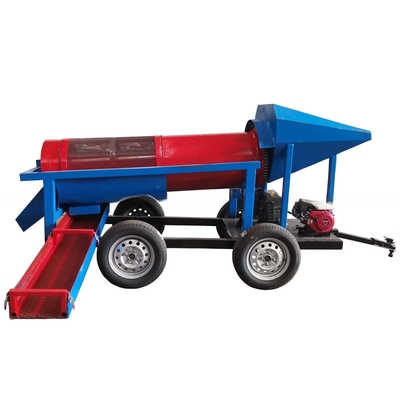

This GMTS0519 model generator can be equipped with electric motor, diesel engine or HONDA gasoline engine.
Product packaging
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 7
Our company
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 8

Zhengzhou Sinolion Machinery Co.,Ltd.

We are a high-tech company which professional manufacturing the production of mineral
processing equipment and municipal solid waste sorting plant, we supply complete solution design and service.
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 9

Our Core Advantages as below :

1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
Certifications
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 10
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 11
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 12
Contact us
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 13
Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. What is the material you want to process? Is the gold in the soil? It would be appreciated if you could send us a picture of your material. 2. How many tons of material do you want to process per hour?
Easy to Operate Gold Mining Plan 5-10t/h Small Gold Washing Machine Mini Gold Trommel 14
Sincerely welcome to send your inquiry, you can get best quotation and professional service!
