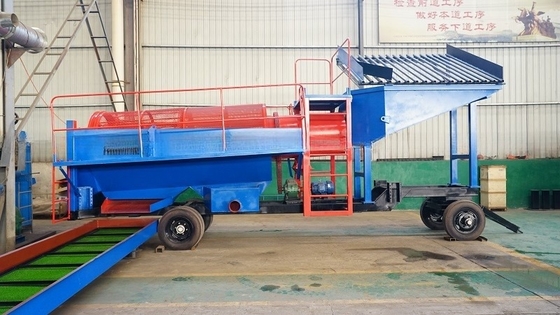

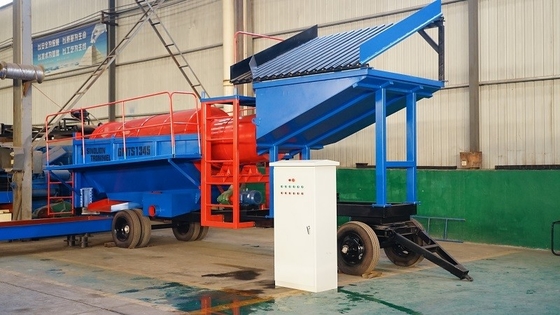

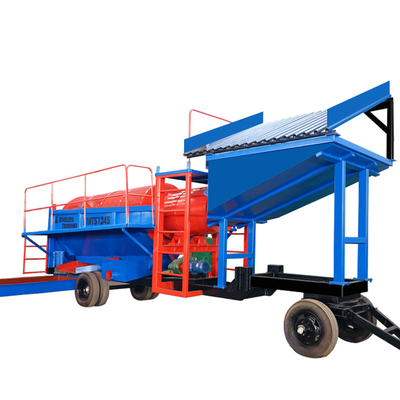

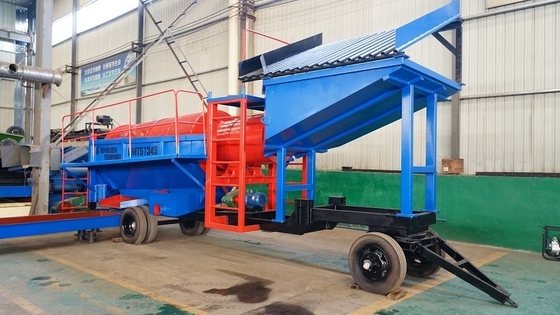

50-80t/h Rotary Gold Mining Trommel Screening Machine for Alluvial or Placer Gold
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $16,000.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Italy, Russia, Spain, Thailand, UAE |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 50-80t/h | Voltage: | 380V |
| Dimension(L*W*H): | 8500x2840x3800mm | Weight: | 5500 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox, Other |
| Key Selling Points: | Patented Product | Application: | Alluvial Gold Washing |
| Color: | Customized Making | ||
Product Description
Product Description
The mini gold screen equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.The processing capacity of this equipment can reach 50-80 tons per hour, which is suitable for mineral processing sites, and the recovery rate of screened gold can reach 90%.

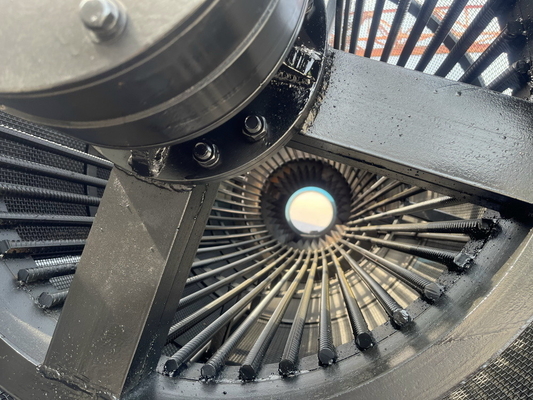

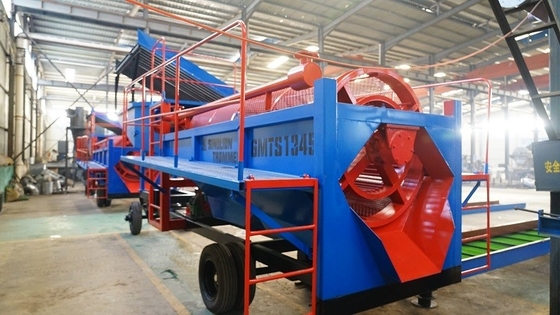

A mud mixing section is added to the front end of GMTS1345 trommel screen.The screen is divided into two parts, the hole diameter of the first half of trommel screen is smaller than 5mm, and the second half is larger than 5mm.Can better screen materials.There are workbenches on both sides of the trommel screen, and workers can stand on both sides to observe the operation of the machine.The water pipes are distributed on the outside, which can better flush the materials in the barrel and prevent clogging.The water pipes are distributed on the outside, which can better enter and exit the materials and flush the materials in the barrel to prevent clogging. The water pipes are galvanized seamless pipes or round steel, which can solve the problem of non-durable water pipes and greatly improve the service life of the fuselage.The frame on the outside of the screen drum can effectively prevent the screen drum from moving backward during operation.
Working principle
Gold Mobile Trommel Screen 1345 can be washing and screening.When the alluvial gold and placer gold enter the drum device, due to the incline and rotation of the drum device, the materials on the screen surface are flipped and rolled, so that the qualified materials are discharged through the outlet at the bottom of the rear end of the drum, and the unqualified materials are discharged through the outlet at the rear end of the drum. Discharge from the discharge port.Gold Mobile Trommel Screen 1345 is equipped with two discharging ports,which can collect more gold faster.
Specification
Model | GMTS-1300x4500 | ||||||
Drum Diameter | 1300mm | ||||||
Drum Length | 4500 mm | ||||||
Towing Hook | Include | ||||||
Mixing section length | 1500mm | ||||||
Rubber Tires Quantity | 4 pieces | ||||||
Spray Pipe Material | Galvanized seamless pipe | ||||||
Capacity | 50-80 tons/hour | ||||||
Engine | Diesel engine Electric engine | ||||||
Sluice Box | 1000x6000mm | ||||||
Grizzly | Steel bar diameter 20-30mm Bar spacing 35mm Input hopper: 2.4m³ | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
