380V Voltage Manganese and Sand Mining Machinery for South Africa Gold Mines at Sale
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $16,000.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Italy, Russia, Spain, Thailand, UAE |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 50-80t/h | Voltage: | 380V |
| Dimension(L*W*H): | 8500x2840x3800mm | Weight: | 5500 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox, Other |
| Key Selling Points: | Patented Product | Application: | Alluvial Gold Washing |
| Color: | Customized Making | ||
Product Description
Product Description

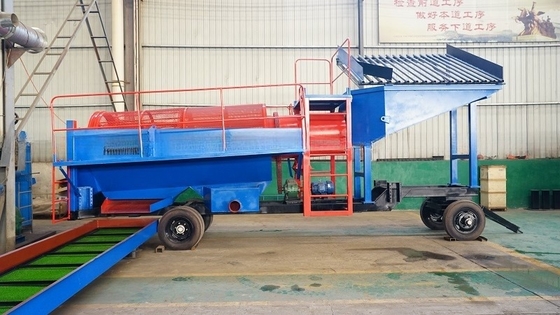

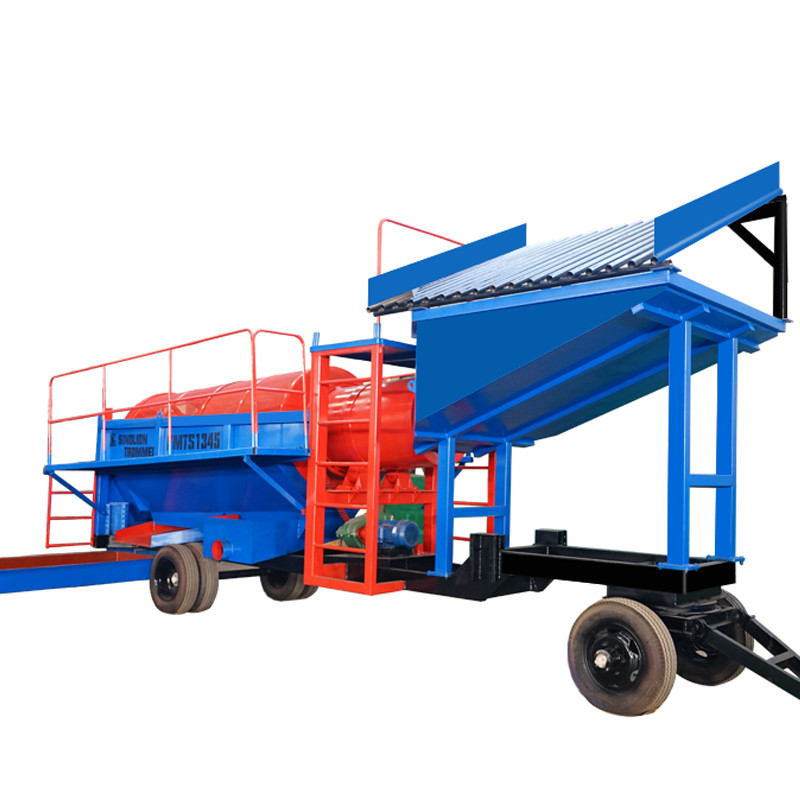

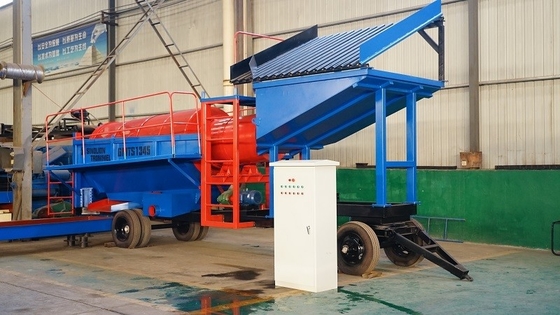

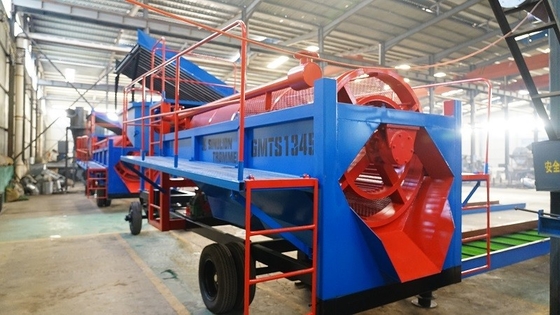

The mobile gold trommel screen 1345 is mainly used in dry land and beaches, it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on. GMTS1345 have a traction can rotate 180° for better fixation and movement. The processing capacity of this equipment can reach 50-80 tons per hour, which is suitable for mineral processing sites, and the recovery rate of screened gold can reach 90%.

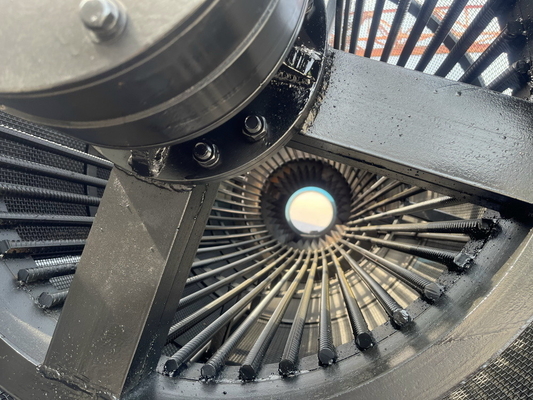

GMTS1345 has a mud stirring section of 1500mm, which can better break through hard materials and increase the recovery rate.The screen is divided into two parts, the hole diameter of the first half of trommel screen is smaller than 5mm, and the second half is larger than 5mm. Can better screen materials. There are workbenches on both sides of the trommel screen, and workers can stand on both sides to observe the operation of the machine. The water pipes are galvanized seamless pipes, which can solve the problem of non-durable water pipes and greatly improve the service life of the fuselage. The frame on the outside of the screen drum can effectively prevent the screen drum from moving backward during operation. The screen is double layer structure, and adopts high manganese steel woven screen, which has high efficiency and long service life.
Production Line
Specification
Model | GMTS1345 | ||||||
Drum Diameter | 1300mm | ||||||
Drum Length | 4500 mm | ||||||
Towing Hook | Include | ||||||
Mixing section length | 1500mm | ||||||
Rubber Tires Quantity | 4 pieces | ||||||
Spray Pipe Material | Galvanized seamless pipe | ||||||
Capacity | 50-80 tons/hour | ||||||
Engine | Diesel engine Electric engine | ||||||
Sluice Box | 1000x6000mm | ||||||
Grizzly | Steel bar diameter 20-30mm Bar spacing 35mm Input hopper: 2.4m³ | ||||||
Weight | 5500kg | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
FAQ
Q1: How long is the delivery time？
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
