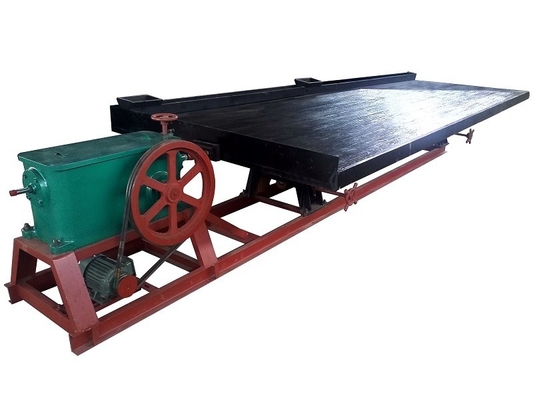

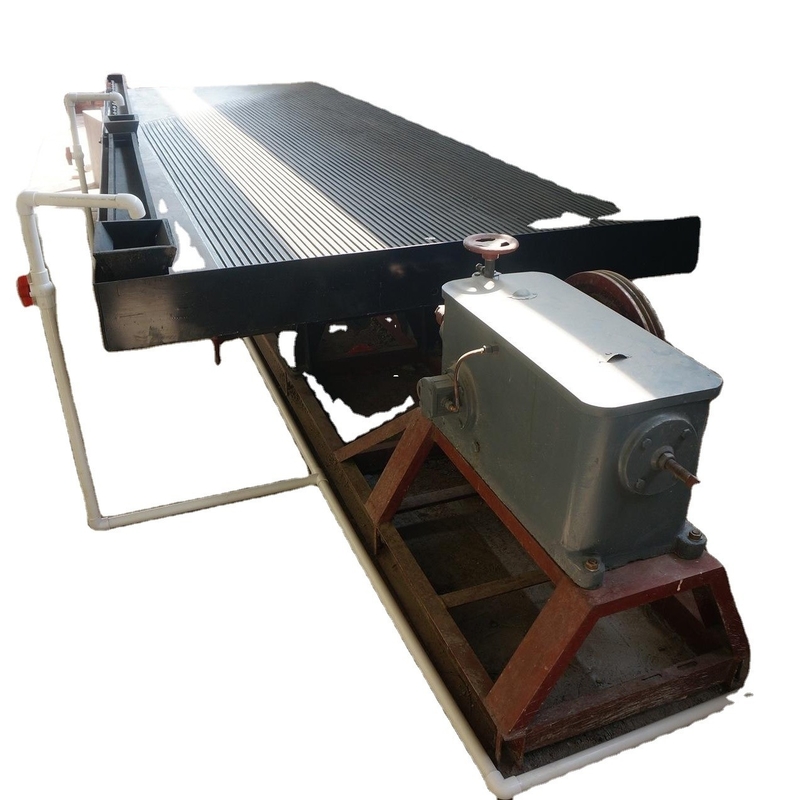

Construction Works Small Portable Gold Mining Equipment Shaker Table for Gold 650 KG
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,400.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Canada, United Kingdom, United States, Germany |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator, Gravity Separation |
| Production Capacity: | 0.5-1.2 Tons Per Hour | Voltage: | 380V/415V/440V( As Client Request) |
| Dimension(L*W*H): | 5630*1850*900mm | Weight: | 650 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Engine, Other |
| Key Selling Points: | Multifunctional | Application: | Gold, Chormite, Tungsten Ore, Tin, Tantalum Ore, Niobium Mine |
| Product Name: | Shaking Table | After-sales Service Provided: | Service Machinery Overseas |
| Usage: | Mining Concentration | Name: | Gold Mining Equipment Shaking Table |
| Color: | Clients' Request | Processed Materials: | Gold |
| Capacity: | 0.5-1.2 Tons Per Hour | ||
Product Description
Product Description
Shaking table for glod
Shaking table is one of the main equipments of gravity beneficiation in the gold processing equipment, mainly used in the separation of tungsten, tin, tantalum, niobium, iron, manganese, chromium, titanium, bismuth, lead, gold and other rare metals and precious metal ores , can also be used in coal mines. It can be used in different operations such as roughing, beneficiation, sweeping, etc., and separate coarse sand (2-0.5mm), fine sand (0.5-0.074mm), ore slime (-0.074) and other different particle sizes. Our compay have two models for gold shaking table, is 6-S and LY. You can select it according to your needs.
Working principle
The mineral processing process of the shaking table is carried out on the inclined bed surface with rebound strips. The ore particles are fed from the ore feed chute, and the horizontal flushing water is supplied from the water supply tank. When the ore particles are under gravity and the force of the transverse flow water, the bed surface is under the action of inertia and friction generated by reciprocating asymmetric motion, the materials are layered according to specific gravity and particle size. Therefore, ore particles with different specific gravity and particle size gradually flow down in a fan shape along their respective directions of movement, and are discharged from different areas on the concentrate end and tailings side respectively, and are finally divided into concentrate, medium ore and tailings.
Product Details
Specification
Specifications | Type 6-S | Type LY | ||
Bed surface size(mm) | 4520×1850×1560 | 2100×1050×850 | ||
Length*feed end width*concentrate end ore | ||||
Selection area(㎡) | 7.671111 | 2 | ||
Feeding particle size(mm) | coarse sand | 2-0.5 | 2-0.5 | |
fine sand | 0.5-0.074 | 0.5-0.074 | ||
slime | 0.074-0.037 | 0.074-0.037 | ||
Feeding concentration（%） | 10～30 | 10～30 | ||
Handling Capacity（t/h） | coarse sand | 1-2.5 | 0.4-0.8 | |
fine sand | 0.8-1.2 | 0.2-0.5 | ||
slime | 0.3-0.6 | 0.1-0.2 | ||
Water Consumption（t/h） | 0.5～3.5 | 0.2～1 | ||
Stroke（mm） | 8～36 | 12～28 | ||
Stroke times（times/min） | 240～380 | 250～450 | ||
Corss slope（degrees） | 0°～5° | 0°～10° | ||
Electric Motor | model | Y70L-4 | Y90L-4 | |
power（kw） | 1.1 | 1.1 | ||
rotating speed（r/min） | 1400 | 1400 | ||
V-belt（mm） | A-2000 | B-2007 | ||
Dimensions(mm) L*W*H | 5630×1850×900 | 3040×1050×1020 | ||
Weight（kg） | 650 | 350 | ||
