SLB60 Centrifugal Gold Refining Machine for Fine Gold Concentration Automatic Design
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $7,463.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Construction Works , Energy & Mining, Advertising Company, Other | Showroom Location: | Egypt, United Kingdom, United States, France, Germany, Philippines |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 30-40T/H | Voltage: | 220V Based On Customer's Needs |
| Dimension(L*W*H): | 1970*1670*1750mm | Weight: | 1000 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Engine, Gearbox, Other |
| Key Selling Points: | Automatic | Application: | Mining Separation |
| Capacity: | 30-40T/H | Product Name: | Centrifuge |
| Keywords: | Centrifugal Gold Concentrtor | Feature: | High Recovery Rate Easy |
| Usage: | Mining Concentration | Color: | As Your Request |
| Name: | Gold Ore Processing Equipment | Installation: | Under Guidance |
| Material: | Steel | ||
Product Description
Product Description
China Manufacturer STLB 60 Automatic Centrifugal Concentrator
STLB 60 sandstone gold centrifuge is a centrifugal mining equipment suitable for recovering placer gold, rock gold and alluvial gold in polymetallic ores. It is one of the important equipment for mineral processing. It is the most ideal choice for gold laundering. The STLB60 concentrator recovers finer natural metals than traditional gravity concentrators. It can be connected to the discharge port of the drum screen to further refine the gold. The feed is controlled by a pneumatic butterfly valve at the entrance. It is fully automatic and can flush automatically, which can reduce labor costs. It can flush automatically after 30 minutes of working. Periodically during the cycle, high-grade concentrate is removed from the concentrator. Our products have undergone rigorous testing and actual use, proving that our machines have the following excellent characteristics:
1.The utilization rate of recycled gold is 99%.
2.Easy and convenient installation.
3.We provide five specifications of centrifuges for you to choose.
2.Easy and convenient installation.
3.We provide five specifications of centrifuges for you to choose.

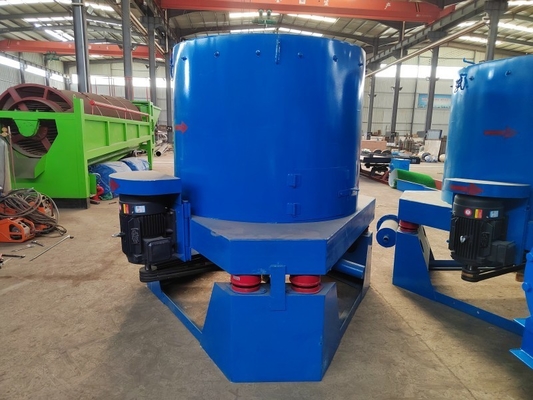

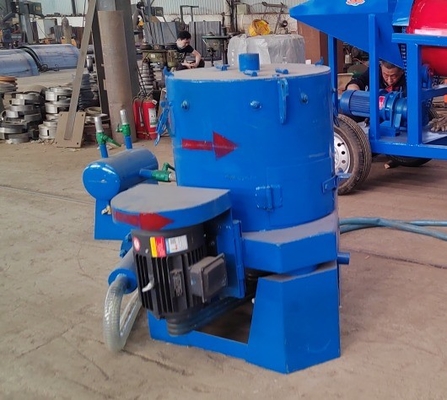

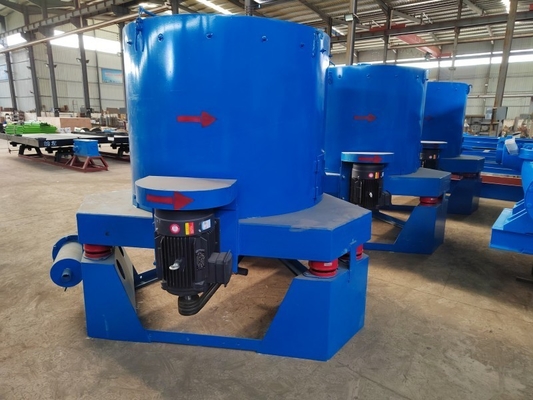

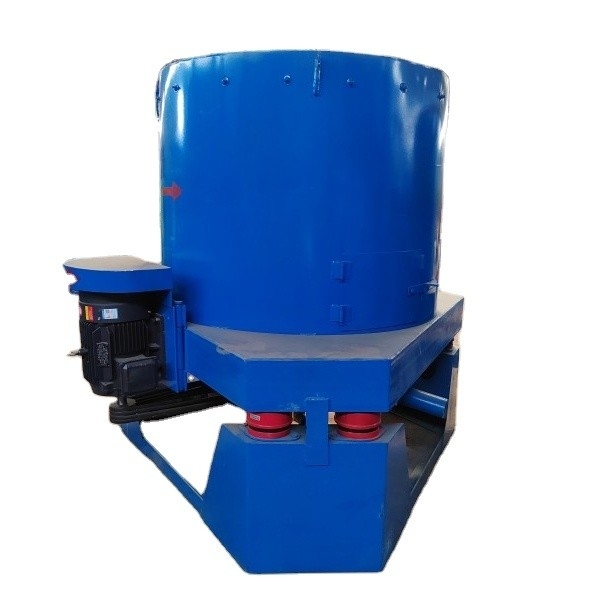

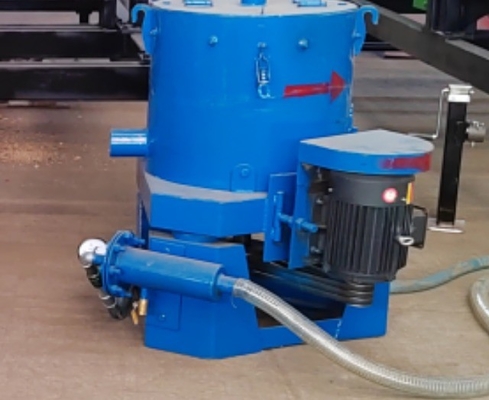

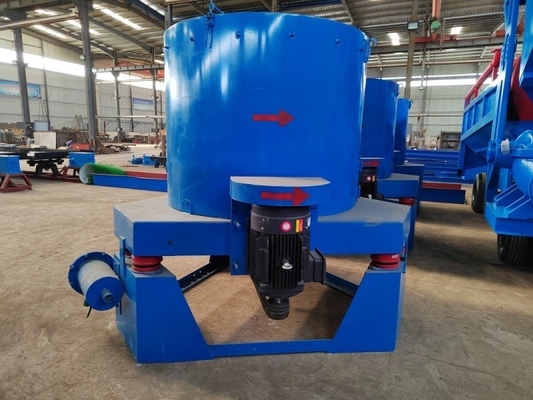

Product show
Specification
Model | STLB60 |
Feeding Capacity(t/h) | 8-12 |
Fluidization water Required(m3/h) | 7-10 |
Slurry Water Required(m3/h) | 8-12 |
Feeding Density(%) | 0-50 |
Feeding size(mm) | 0-5 |
Concentration Cleaning Up Cycle | Rock gold 1-3 Hours ,alluvial /sand gold 2-6 Hours |
Concentrate weight(Kg) | 30-40 |
Power(KW) | 4 |
Weight(Kg) | 1970*1670*1750 |
Overall dimensions(mm) | 1000 |
Case
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
