The cylinder is a single-layer screen, which is used when the materials do not contain bulk materials. The advantage of the single-layer screen is that the entire cylinder is lightweight, which can reduce the weight and energy consumption of the entire equipment.
 |
1.5 Kw Mini Trommel Plans Small Gold Trommel Wash Plant 600 KG Suitable for Alluvial Gold
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining | Showroom Location: | Germany, India, Spain |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 5-10TPH | Voltage: | 380V |
| Dimension(L*W*H): | 3000x800x1550mm | Weight: | 600 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox, Other |
| Key Selling Points: | Competitive Price | Color: | Customized Making |
| Application: | Alluvial Gold Washing | Power: | 1.5 Kw |
| Material: | Steel | ||
Product Description
Product Description

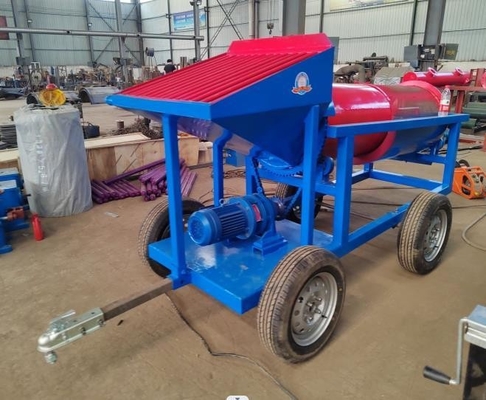

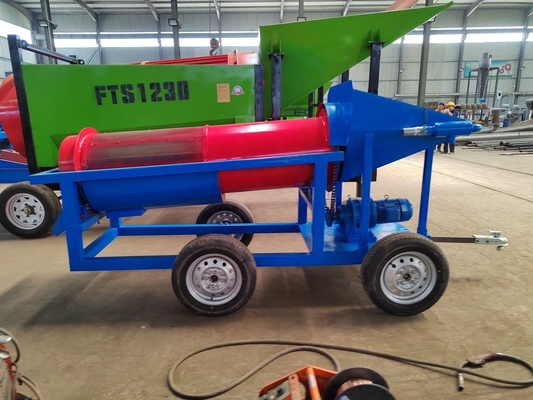

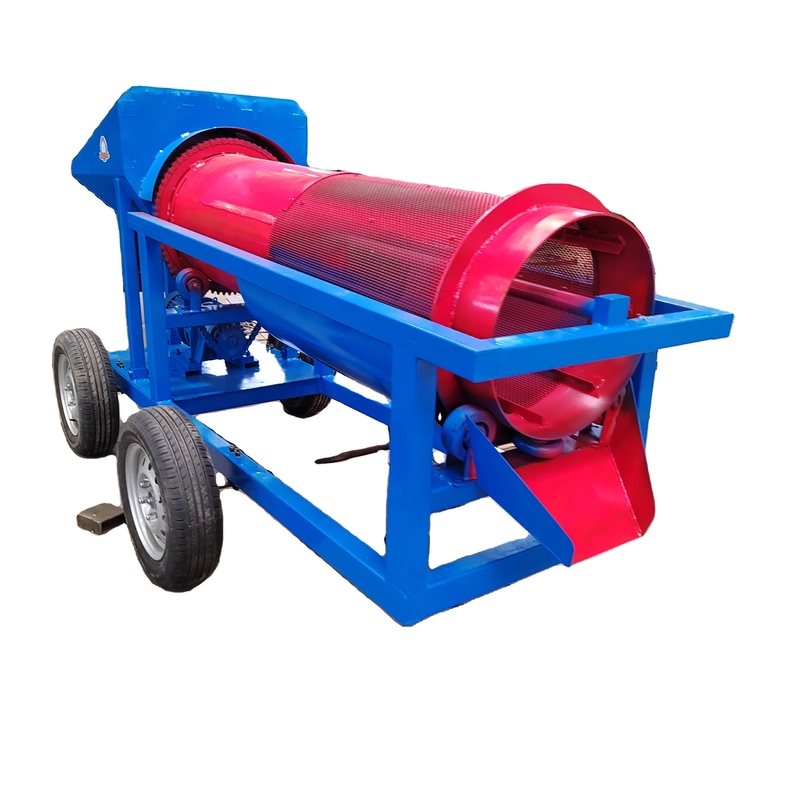

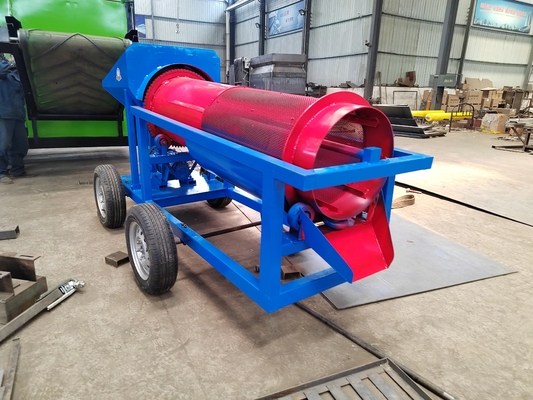

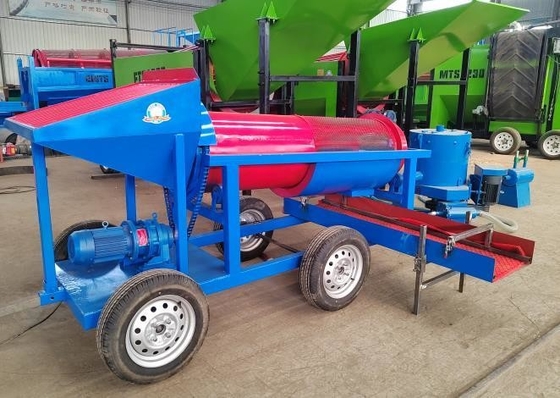

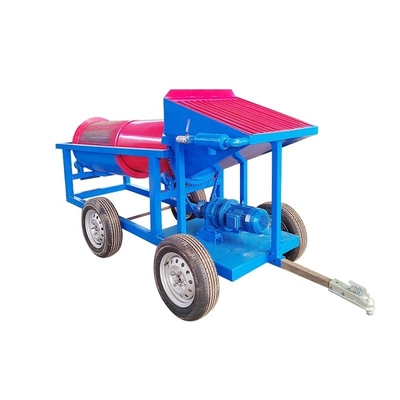

The mobile gold mining trommel screen is a movable gold separation platform, mainly used in dry land, beaches, and ancient rivers. It is a gravity mineral separation equipment with the characteristics of low investment, less labor, fast return on investment, simple operation, and flexibility.Suit able for placer gold and alluvial gold.
The screen adopts high manganese steel woven screen, which has high efficiency and long service life. The screen is easy to replace and will not block.
The gold washing trommel can be washing and screening.
The gold selection drum screen machine is mainly composed of frame, bin, screen drum, idler assembly, transmission part, tire and other parts.Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collecting.
The grid serves to initially screen bulk materials, which is beneficial to improving the efficiency of the screen bucket.
There is a breaking knife inside the trommel screen, which can break some hard stones wrapped in gold. The screen adopts high manganese wire woven mesh, the aperture in the first half is less than 5mm, and the aperture in the second half is greater than 5mm.
Specification
Model | GMTS-500x1900 |
Drum Diameter | 500mm |
Drum Length | 1910mm |
Capacity | 5-10 tons/hour |
HONDA Gasoline Engine | Main Power:5.5HP Start method: Manual pull Gasoline load: 0.58L |
sluice box | 350*1500mm Angle adjustable 2-8° |
Grizzly | Steel bard diameter 20mm Bar spacing 50mm Input hopper: 0.5m³ |
Packing & Delivery
Comany Information
Contact us
Q1: How long is the delivery time
A: Normally within 7-10days
Q2: What is the driving force
A: HONDA Gasoline Engine
Q3: How long is the warranty period
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
A: Normally within 7-10days
Q2: What is the driving force
A: HONDA Gasoline Engine
Q3: How long is the warranty period
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
