10-30t/h Capacity Gold Trommel Screen for Home Sand Gravel Gold Separation Equipment
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $5,310.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining, Advertising Company, Other | Showroom Location: | Canada, United States, Germany, Philippines, Russia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 10-30t/h | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 3.2m*1.4m*1.9m | Weight: | 1200 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Other |
| Key Selling Points: | Patented Product | Application: | Gold Mining |
| Keywords: | Gold Washing Vibrating Screen | After-sales Service Provided: | 1 Years |
| Usage: | Mining Separatoion | Name: | Gold Ore Processing Equipment |
| Capacity: | 10-30t/h | Installation: | Technical Guidance |
| Processed Materials: | Alluvial Gold Sand Gold | Product Name: | Gold Mining Machine |
| Color: | Customized Making | ||
Product Description
Product Description

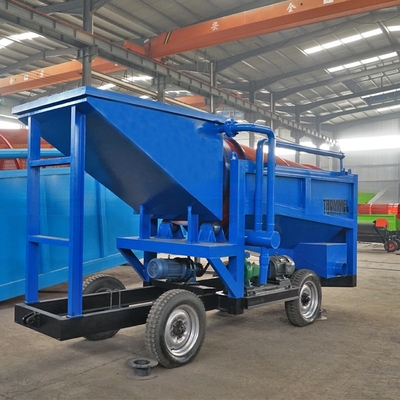

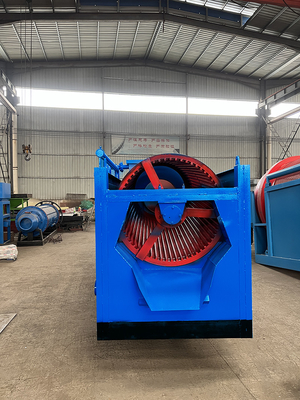

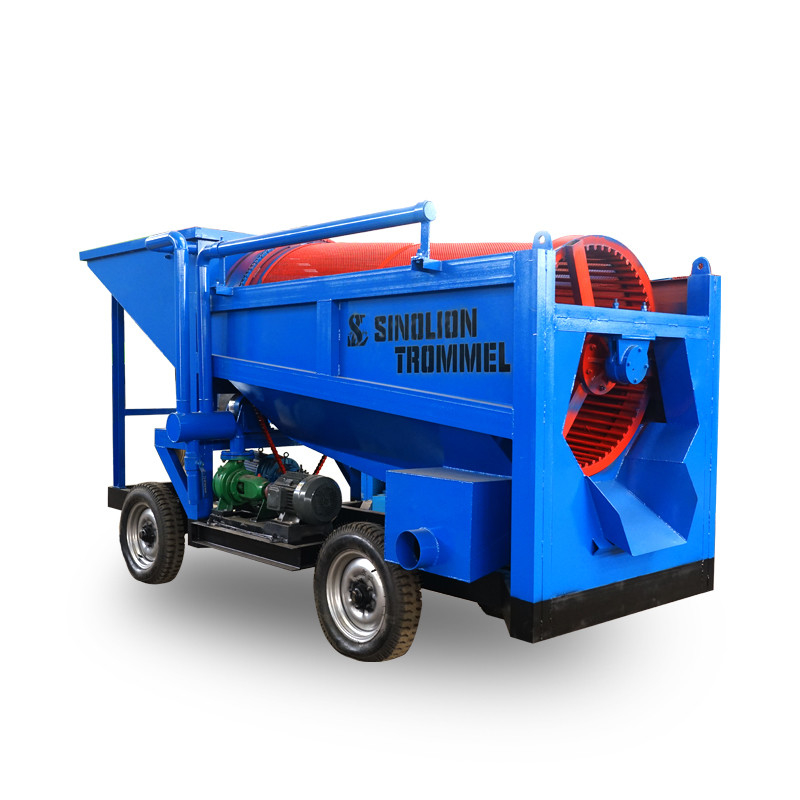

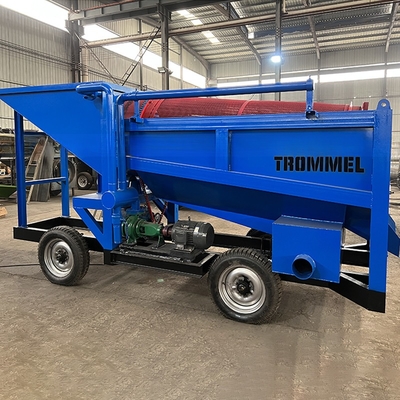

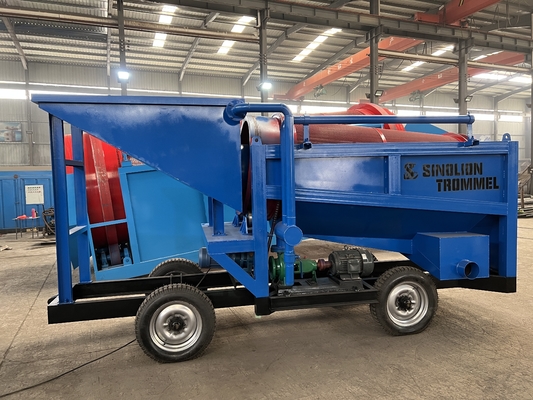

The mobile gold trommel screen 1020 can process 10-30 tons of materials per hour. The gold trommel screen is widely used in screening various materials, such as placer gold, alluvial gold, etc. The recovery rate of a complete set of gold mining washing plant equipment can reach 95% after screening.
Working Principle

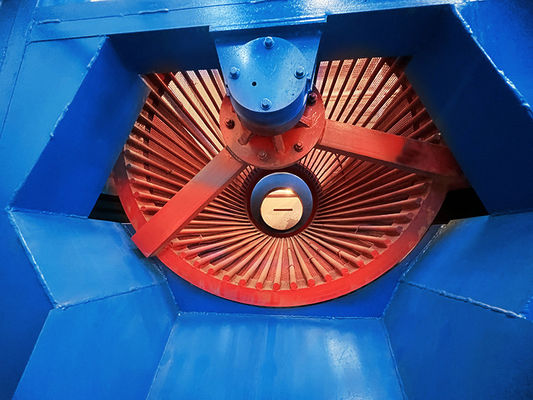

GMTS1020 is mianly consist of motor, drum device, frame, tries, grille, and inlet and outlet. When the GMTS 1020 is running, it is powered by the motor. When the material enters from the feed port, small pieces of material enter the drum through the grille, and then start screening. Since the particle size and specific gravity of gold are different, heavy metals containing gold will be screened out from the discharge port during the washing and screening process. The trommel screen is equipped with a motor and has a long service life, so there is no need to worry about outdoor power generation. It is economical, durable, safe and powerful. We can configure a diesel engine for you if you need it.
Specifications
Model | GMTS1020 |
Drum Diameter | 1000mm |
Drum Length | 2000mm |
Capacity | 10-30 t/h |
Engine | Electric motor Diesel engine |
sluice box | 1000*6000mm Angle adjustable 2-8° Can be assembled |
Grizzly | Steel bard diameter 20-30mm Bar spacing 30mm Input hopper: 0.9m³ |
Weight | 1200kg |
Power | 4 kw |
