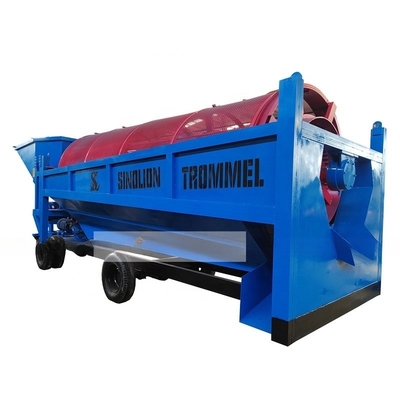

• Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System
  • Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System
  • Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System
  • Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System
  • Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System
  • Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System
Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System

Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System

Product Details:

Place of Origin: Henan, China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $24,000.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Other Showroom Location: None
Condition: New Type: Flotation Separator
Production Capacity: 98% Voltage: 380v/415v/440v
Dimension(L*W*H): Depends On Models Weight: 6500 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Other
Key Selling Points: High Rigidity Product Name: 50T-500T High Efficiency Gold Separating Machine System
Keyword: Gold Trommel Screen Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel
Power: 1.5-15kw Dimension: According To Capacity
Installation: Supply Manual To Guide User Capacity: 5-200 Tons Per Hour
Feeding Size: Less Than 300mm Discharge Size: As Request
Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

5T-200T High efficiency gold separating machine system for sale

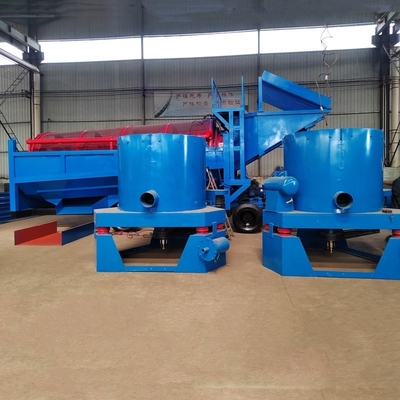

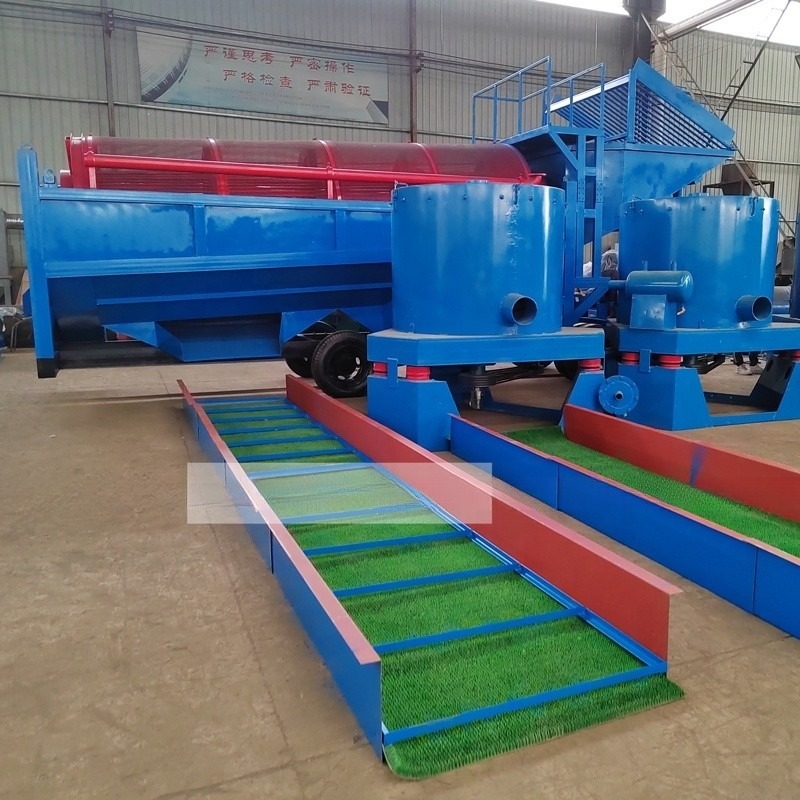

Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 0Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 1



Placer gold machine, placer gold beneficiation machinery as a mining, recovery of sand gold heavy metal machine is currently used in the global scope of sand gold mining areas. They come in many sizes, but they are all designed and made with the aim of recycling gold.



The alluvial gold machine movement is very convenient and can be applied to a variety of terrain, terrain is soft sandy or hard rock, stone or more can be applied, and must also very convenient, can satisfy the development of mining while walking. This method has a good effect on a large range of sand gold mining areas, which can save more production costs and increase mining efficiency.





Gold separating machine working principle::
1. Input of raw materials    Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.

2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.

3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.

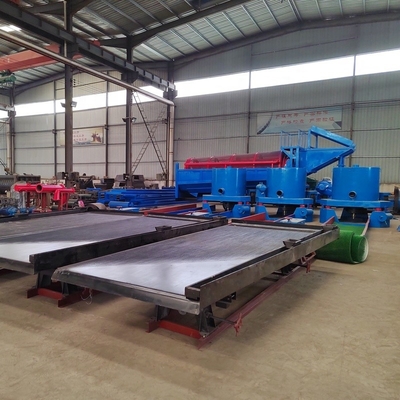

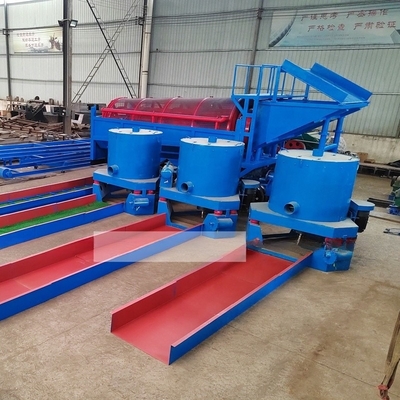

Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 2Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 3



technical parameters



Model

Capacity

(t/h)

Power

(kw)

Diameter

(mm)

Length

(mm)

Discharge

(mm)

Input

(mm)

Dimension

(mm)

YGTS0519

5-10

1.5

500

1900

0-100

≤300

3000×800×1640

YGTS1020 10-30 4.0 1000 2000 0-100 ≤300 3390×1400×2140
YGTS1225 30-50 5.5 1200 2500 0-100 ≤300 4146×1600×2680
YGTS1545 50-120 11 1500 4500 0-100 ≤400 8160×2>300×2500
YGTS1548 80-150 11 1500 4800 0-100 ≤400 8460×2300×2500
YGTS1848 100-200 15 1800 4800 0-100 ≤400 8460×2300×2700







Packaging & Shipping

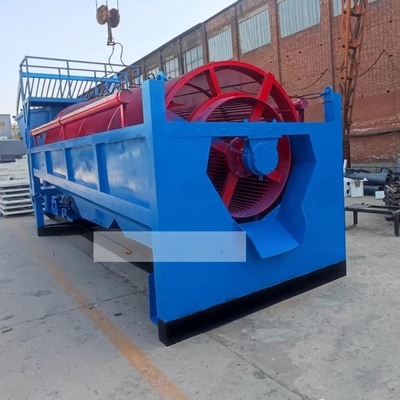

Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 4



Case

Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 5

Customer

Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 6

Company Information

Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 7

Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 8





Related products
Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 9 Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 10 Flotation Separator and Stainless Steel Trommel Screen for 50T-500T Gold Separating System 11
Small Gold Trommel Screen Centrifugal Concentrator Shaking Table
