100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine

100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine

Product Details:

Place of Origin: Henan, China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $16,400.00/sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other Showroom Location: United States, France, Brazil, Mexico, South Africa, Australia, None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2023 Warranty Of Core Components: 1 Year
Core Components: Engine, Motor, Pump Condition: New
Type: Circular Application: Ore
Voltage: 380v/415v/440v Dimension(L*W*H): Depends On Models
Weight: 6500 KG Warranty: 1 Year
Product Name: Large Capacity Trommel Screen Supplier Wash Trommel Screen Keyword: Trommel Screen
Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel Dimension: According To Capacity
Installation: Supply Manual To Guide User Capacity: According To Model
Feeding Size: Less Than 300mm Discharge Size: As Request
Color: Yellow, White, Red, Blue, Gray( Or As Client Request) After-sales Service Provided: Field Installation, Commissioning And Training

Product Description

100-200t/h Large capacity trommel screen supplier gold washing trommel screen mineral processing machine

100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 0100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 1100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 2100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 3



About our GMTS series,now there have been Columbia graduates, customers from the United Kingdom, Canada, Australia, Ghana and other countries have purchased our mobile gold trommel screen for gold mining many times. We have our own factory and professional engineers, so we can provide you with greater advantages in terms of price, quality and technology.



Gold refining equipment working principle:
1. Input of raw materials    Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.

2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.

3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.





100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 4100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 5100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 6100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 7



technical parameters



Model

Capacity

(t/h)

Power

(kw)

Diameter

(mm)

Length

(mm)

Discharge

(mm)

Input

(mm)

Dimension

(mm)

GMTS0519

5-10

1.5

500

1900

0-100

≤300

3000×800×1640

GMTS1020 10-30 4.0 1000 2000 0-100 ≤300 3390×1400×2140
GMTS1225 30-50 5.5 1200 2500 0-100 ≤300 4146×1600×2680
GMTS1548 80-150 11 1500 4800 0-100 ≤400 8460×2300×2500
GMTS1848 100-200 15 1800 4800 0-100 ≤400 8460×2300×2700







100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 8

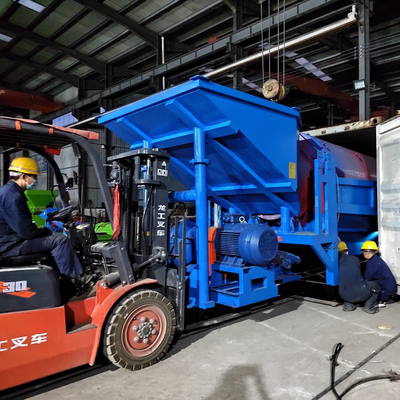

Packaging & Shipping

100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 9



Case

100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 10

Customer

100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 11

Company Information

Zhengzhou Sinolion Machinery is a Chinese company with a department specialized in screening equipment;

Being consultant, designer and adviser of placer gold washing plant. Our company manufacture MTS Series mobile trommel screener, GMTS Series gold washing plant, MSW sorting plant and related equipment.



After 10 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion Machinery has been awarded as the pioneer in the field of screener manufacture in China.



SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with environmental engineering research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, there are 80 employees in Sinolion, among which over 30 are holders of Bachelor's Degree and above, and nearly 70% of senior and experienced engineers of researchers specializing in electrical engineering, mechanical engineering, hydraulics, logistics and so on.



SINOLION provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and SINOLION strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. SINOLION Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install production lines.



Like Sinolion, sincere, responsible, diligent and helpful, it brings together many ambitious talents who are good at different fields.

100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 12

100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 13

100-200t/h Large Capacity Trommel Screen for Gold Washing and Mineral Processing Machine 14
