Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00/sets 1-1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Home Use, Energy & Mining Showroom Location: Canada, United States, Colombia, Australia
Condition: New Type: Gold Mining Trommer Screen
Production Capacity: 5-10tons/hour Voltage: 380V/415V/440V
Dimension(L*W*H): 3000*1000*1800 Weight: 520 KG, 520kg
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Pump
Key Selling Points: Automatic Product Name: Gold Mining Trommel Screen
Application: Washing Gold Installation: Supply Manual To Guide User
Color: Yellow, White, Red, Blue, Gray( Or As Client Request) Capacity: 5-10t/h
Tire Diameter: 500mm-650mm Keywords: Gold Separation Machine
Function: Washing Gold Ore

Product Description

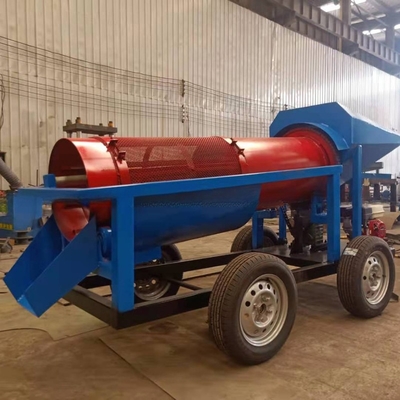

380V/415V/440V Gold Mining Trommel Screen for Separation of Placer Gold and Diamonds 0

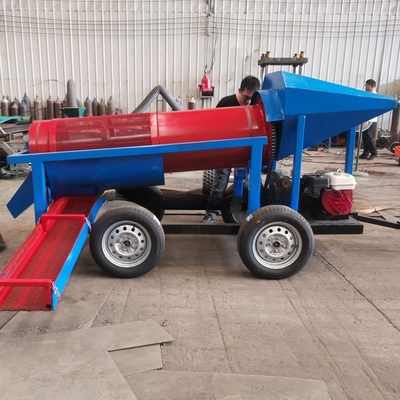

380V/415V/440V Gold Mining Trommel Screen for Separation of Placer Gold and Diamonds 1

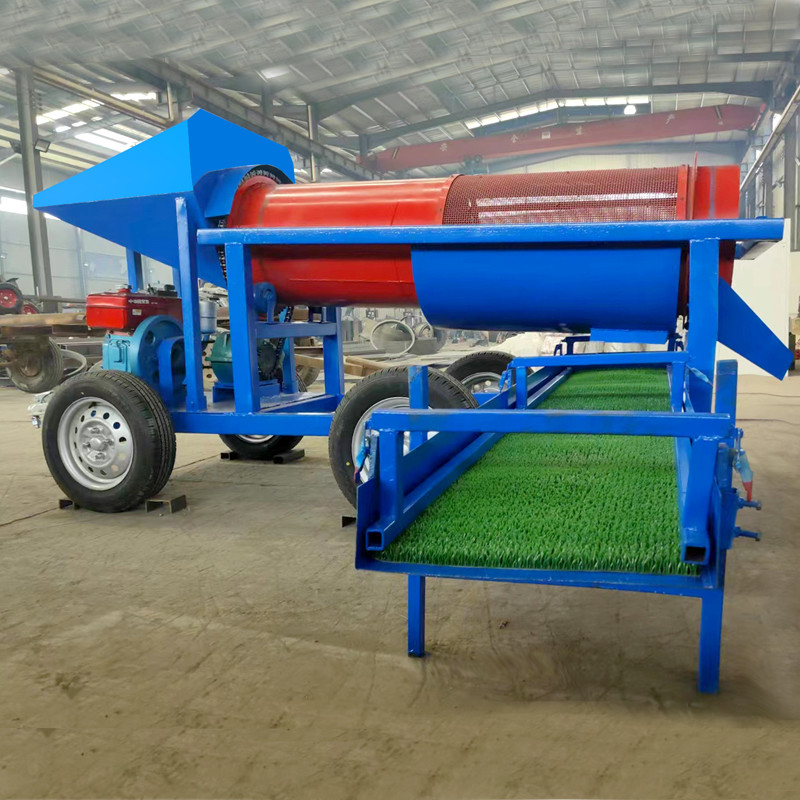

380V/415V/440V Gold Mining Trommel Screen for Separation of Placer Gold and Diamonds 2
Mobile Stationary Sand Trommel Screen For River Gold Mining Equipment
The Mini Gold Screen Equipment Is Mainly Used In Dry Land Beach, River Is A Gravity Processing Equipment Is Mainly Used In Sand Gold Ore And The Recovery Of Monomer Gold In The Vein.it Can Be Easily Movable On Land, It Has A Compact Structure, Strong Integrity, Light Weight, Large Handling Capacity, Simple Operation, Reliable Work, And Easy Maintenance, Easy To Move And So On.

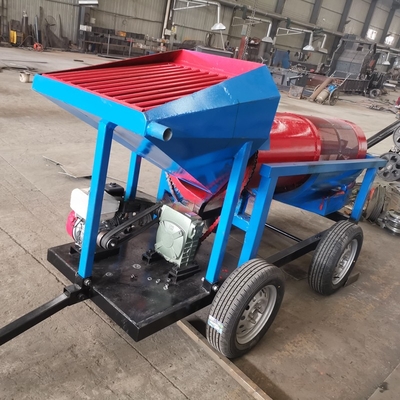

380V/415V/440V Gold Mining Trommel Screen for Separation of Placer Gold and Diamonds 3

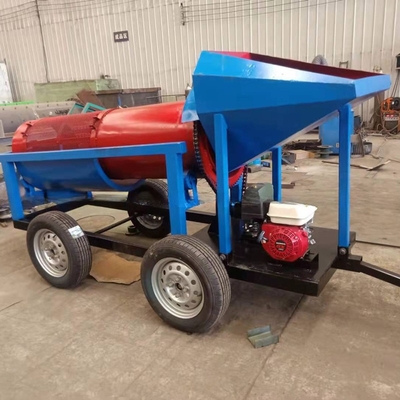

380V/415V/440V Gold Mining Trommel Screen for Separation of Placer Gold and Diamonds 4
380V/415V/440V Gold Mining Trommel Screen for Separation of Placer Gold and Diamonds 5

Structure and Principle

The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper.
2. Selection And Cleaning Of Raw Materials Raw Materials Of The Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel.
3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
380V/415V/440V Gold Mining Trommel Screen for Separation of Placer Gold and Diamonds 6
Product Name
Model
Capacity (t/h)
Power(kw)
Diameter(mm)
Length(mm)
Gold trommel screen
GMTS0519
5-10
1.5
500
1910
