Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $15,900.00/sets 1-1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: Canada, United States, Australia
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product 2023 Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor Condition: New
Type: Circular Voltage: 220V/380V/415V
Dimension(L*W*H): 5400*2100*2700, Customizable Weight: 3210 KG
Warranty: 1 Year Product Name: Mobile Trommel Screen
Application: Screening Compost Installation: Supply Manual To Guide User
MOQ: 1 Set Color: Yellow, White, Red, Blue, Gray( Or As Client Request)
Discharge Size: Less Than 6mm Or As Request Feeding Size: Less Than 300mm
Power: 3-30KW Key Selling Points: High Rigidity

Product Description

Diesel Engine Unit Equipment for Energy Mining Portable Compost Screen 5400*2100*2700 0
Diesel Engine Unit Equipment for Energy Mining Portable Compost Screen 5400*2100*2700 1
Diesel Engine Unit Equipment for Energy Mining Portable Compost Screen 5400*2100*2700 2

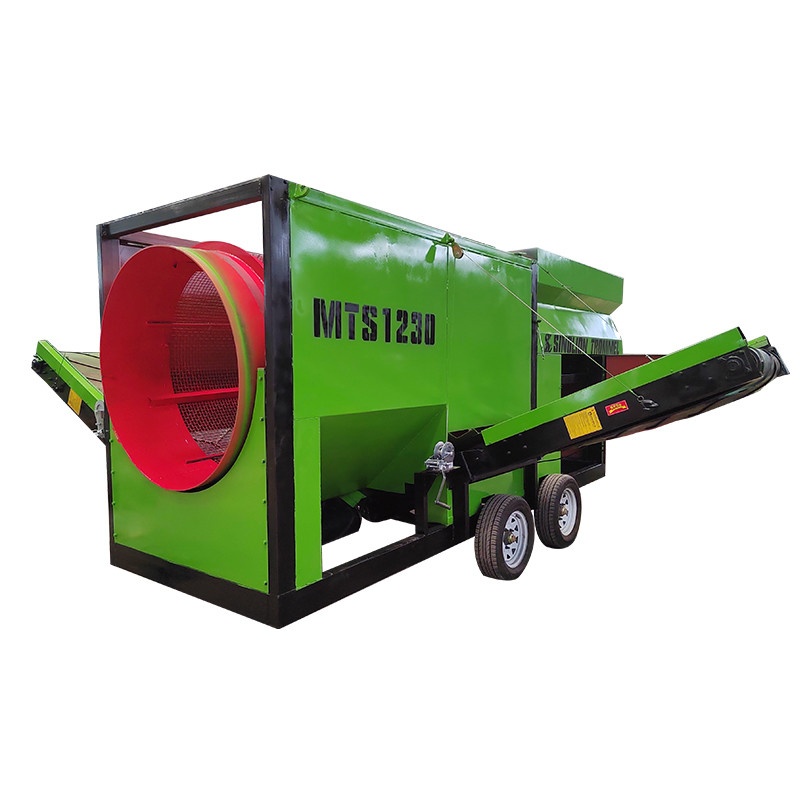

Automatic Portable Compost Screen With Diesel Engine Unit Equipment Mobile Trommel Screen
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Diesel Engine Unit Equipment for Energy Mining Portable Compost Screen 5400*2100*2700 3
Diesel Engine Unit Equipment for Energy Mining Portable Compost Screen 5400*2100*2700 4
Diesel Engine Unit Equipment for Energy Mining Portable Compost Screen 5400*2100*2700 5
Diesel Engine Unit Equipment for Energy Mining Portable Compost Screen 5400*2100*2700 6

Structure and Principle

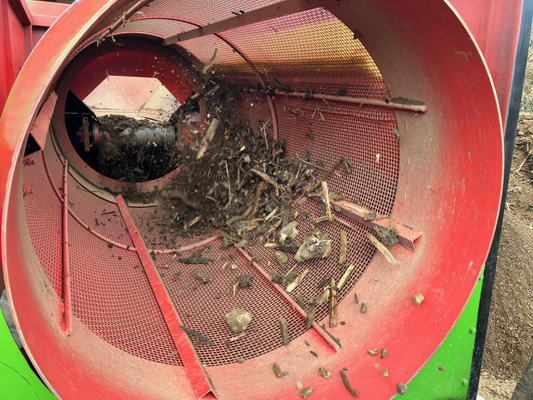

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Diesel Engine Unit Equipment for Energy Mining Portable Compost Screen 5400*2100*2700 7
Model
Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
motor power
(KW)
Weight
(Kg)
Dimensions
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
