Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors

Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $15,900.00/sets 1-1 sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case.
Supply Ability: 50 Set/Sets per Month Mobile trommel screening plant
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: Canada, United States, Colombia, South Africa
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Motor, Pump Condition: New
Voltage: 380V/415V/440V Dimension(L*W*H): 5400*2100*2700mm
Weight: 3210 KG Warranty: 1 Year
Product Name: Mobile Trommel Screen Installation: Supply Manual To Guide User
Color: Yellow, White, Red, Blue, Gray( Or As Client Request) Feeding Size: Feeding Size:
Discharge Size: Less Than 6mm Or As Request Power: 3-30KW
Key Selling Points: Easy To Operate, High Rigidity Application: Screening Compost
MOQ: 1 Set Certificate: CE
Port: Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 0
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 1
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 2

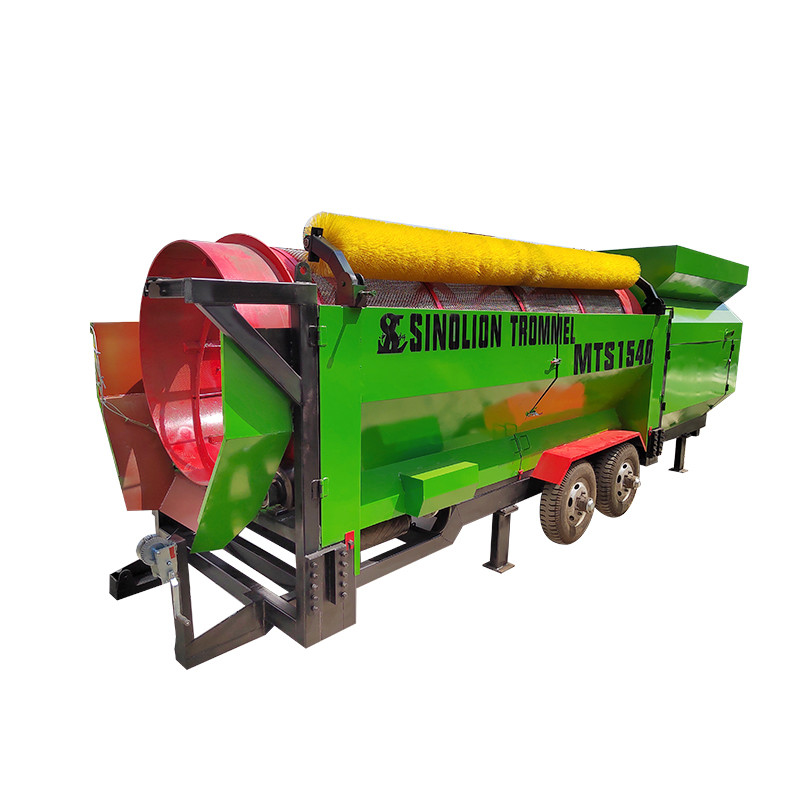

Mobile Type Screening Compost Trommel Screen Can Customize Color Multiple Models Optional
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 3
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 4
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 5
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 6

Structure and Principle

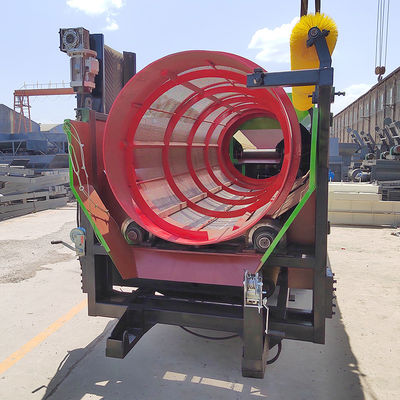

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 7
Model
Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
motor power
(KW)
Weight
(Kg)
Dimensions
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
MTS1230
1200
3000
≤60
10.6
3210
5.4*2.1*2.7
MTS1550
1500
5000
≤90
20
7900
9.4*2.2*2.9
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 8
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 9
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 10
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 11
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 12
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 13
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 14
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 15
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 16
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 17
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 18
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 19
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 20
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 21
Customizable Mobile Compost Trommel Screen with Multiple Models and Optional Colors 22
