Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $2,000.00/sets 1-1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Type: Ball Mill Motor Type: AC Motor
Capacity(t/h): 0.5-83t/h Dimension(L*W*H): Based On Different Model
Weight: 3600 KG Warranty: 2 Years For The Quality Of Equipment
Product Name: Cement Limestone Powder Rotary Dry Ball Mills For Sale Liner: Cement Limestone Powder Rotary Dry Ball Mills
Spare Parts: Liner, Grinding Balls, Grinding Media Grinding Material: Calcium Carbonate, Calcite, Dolomite,bauxite,aragonite
Operation: Automatic Or Manual After Sale Service: The Whole Using Life
Grinding Way: Wet Type Or Dry Type Or Batch Type Bussiness Type: Bearing Ball Mill Manufacturer
Including: Gearbox, Gear, Pinion, Liner, Manual, Bearing, Specifications Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Small continuous ball grinding mill for sale laboratory ball mill machine

Product Description



Wet dry ball mill importer application range :

The ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.



Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 0Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 1

Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 2



Grinding is the last stage in the process of communication; in this stage the particles are reduced by a communication of impact and abrasion, either dry or in suspension in waterBall mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. It is performed in rotating cylindrical steel vessels known as tumbling mills.



Wet dry gold ball mill for sale technicial parameters:



Model

Rotation speed

(r/min)

Weight of

grinding media

(ton)

Size of feed opening

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

Φ 900x1800 38 1.5 ≤ 20 0.075-0.89 0.65-2 18.5 3.6
Φ 900x3000 38 2.51 ≤ 20 0.075-0.89 1.1-3.5 22 4.6
Φ 1200x2400 32 3.8 ≤ 25 0.075-0.6 1.5-4.8 30-45 12.5
Φ 1200x3000 32 5 ≤ 25 0.074-0.4 1.6-5 30-45 12.8
Φ 1200x4500 32 7 ≤ 25 0.074-0.4 1.6-5.5 55 13.8
Φ 1500x3000 27 8 ≤ 25 0.074-0.4 2-5.8 75-90 17
Φ 1500x4500 27 14 ≤ 25 0.074-0.4 3-6.5 110 21
Φ 1500x5700 27 15 ≤ 25 0.074-0.4 3.5-8 132 24.7
Φ 1830x3000 24 11 ≤ 25 0.074-0.4 4-10 180 28
Φ 1830x6400 24 23 ≤ 25 0.074-0.4 6.5-15 210 34
Φ 1830x7000 24 25 ≤ 25 0.074-0.4 7.5-17 245 36
Φ 2200x5500 21 30 ≤ 25 0.074-0.4 10-22 370 48.5
Φ 2200x6500 21 31 ≤ 25 0.074-0.4 14-26 280 52.8
Φ 2200x7500 21 33 ≤ 25 0.074-0.4 15-29 475 56

  Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 3Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 4

Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 5Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 6

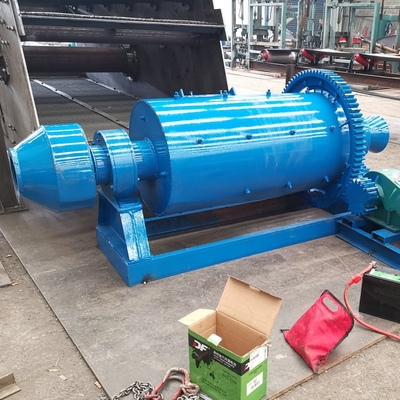

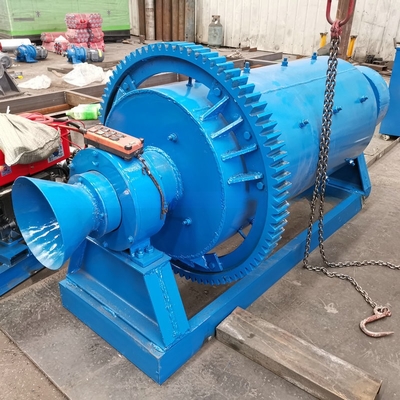

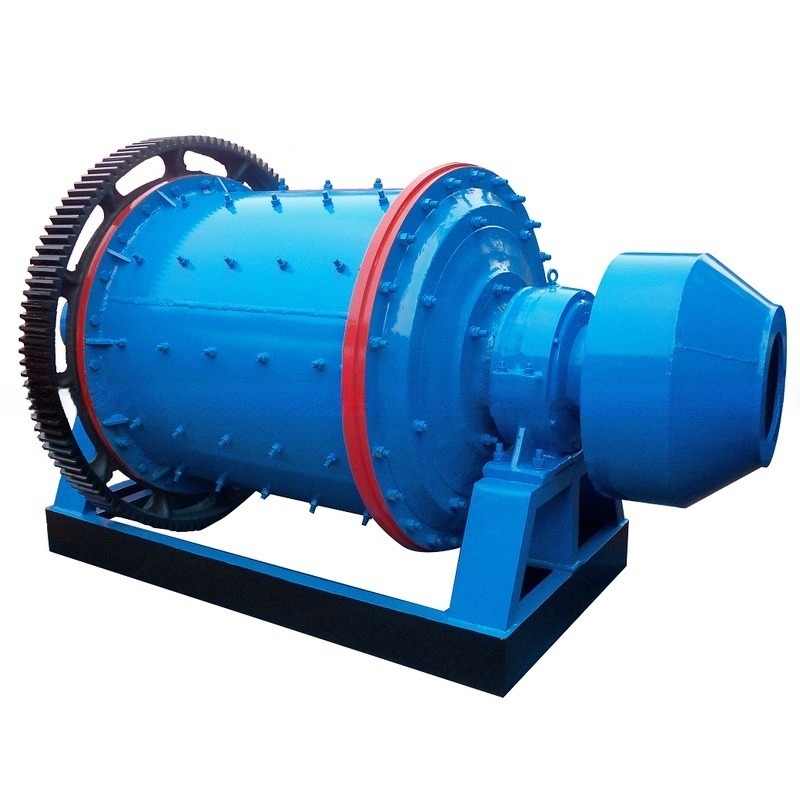

Ball miller machine:

Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 7

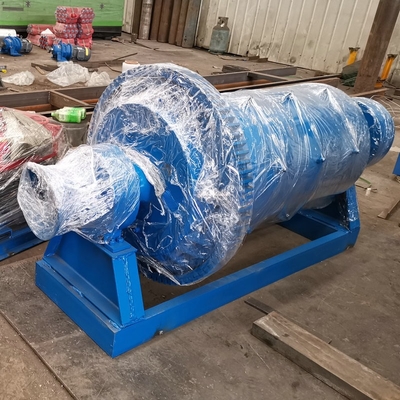

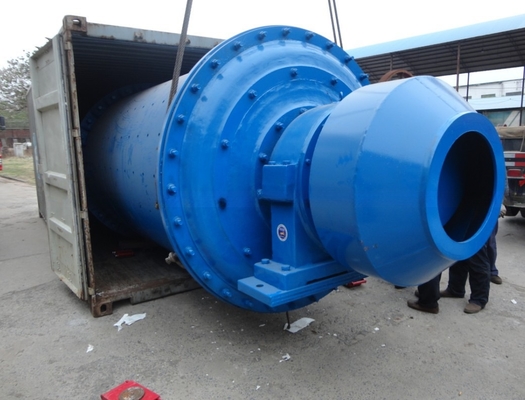

Packaging & Shipping

 Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 8



Working site

 Ball mill machine working site of Zhengzhou Sinolion:



Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 9Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 10



Our Services


1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.



2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery;

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.



3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.

Company Information

 Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 11

Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 12

 Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 13

 Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 14Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 15Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 16Small Continuous Ball Grinding Mill Including Pinion Based on Different Model 17

FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.



Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.



Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan,  Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc



Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
