Product Details:

Place of Origin: Henan Zhengzhou
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00 - $24,000.00/sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining, Gold Washing Showroom Location: United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia
Condition: New Type: Gravity Separator
Production Capacity: 95% Voltage: 220/380V
Weight: 6800 KG Warranty: 1 Year
Marketing Type: Hot Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox Key Selling Points: PORTABLE

Product Description

Product Description


Introduction

If you need to screen alluvial gold, rock, sand, and ore, trommel screen is necessary for assorting different diameter raw materials by showering, gravity and rotary power.

After putting into raw materials into feed hopper, the materials you need is discharged into sluice box and the larger diameter materials is discharged from the tail.

We provide 0-250 ton/hour capacity trommel screen for mining gold separator plant with model GMTS 0519 , model GMTS 1020, model GMTS1225, model GMTS1548, model GMTS1848 ,model GMTS2060. Motor , diesel generator, gasoline generator are optional for clients to choose. The pole of mesh can be made from 5 mm- 20 mm as your actual need. Our products are rugged, durable, and easy portable to move.
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 0
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 1
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 2
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 3
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 4
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 5
model
GMTS0519
GMTS1020
GMTS1225
GMTS1548
GMTS1848
Capacity (TONS/HOUR)
0-10
10-30
30-50
80-150
150-250
Power (KW)
1.5
4
5.5
11
15
Drum Diameter (MM)
500
1000
1200
1500
1800
Drum Length (MM)
1900
2000
2500
4800
4800
Pole of mesh (MM)
5-8
5-8
5-8
5-8
5-8

Gold washing mobile trommel screens

1、Our products can be used to screen riversand, alluvial gold, rock ore and so on for gold collecting.
2、Our products remove impurities by gravity and washing push, the screened materials is out into the sluice box, and the other larger material is out by the tail.
3、 Our products are equipped with motor, generator, diesel generator and gasoline generator for customers to use without electricity.
4、 Our products can be equipped with water pump, centrifuge, sluice box, shaking table, gold amalgamator, and so on.
5、 Our factory provide one-stop service for the whole gold washing equipment.
6、Our factory hold our own instellectual property rights and invention patents.
7、Our factory provide 24*7 service and after salses services.
Product Details
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 6

Main components of  GMTS 1548

* grille
* ladder
* operating platform
* feed hopper
* generator
* reductor
* chain

* distribution Box
* drum trommel
* sluice box
* double screening mesh
* water hose
* little spray pipe





Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 7

Main components of GMTS 0519

* grille
* towing hook
* engine
* reductor
* chain
* sluice box
* drum screen
* water pipe

Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 8

Double-layer mesh

For large machines, we use double-layer screens, which have the function of reinforcement on the one hand and multiple screening on the other.

The inner screen is fixed with steel bars to prevent stones and other heavy objects from knocking




Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 9

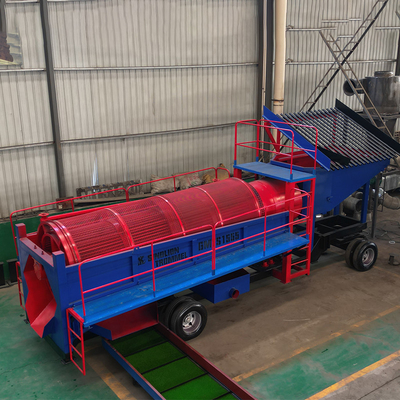

Ladders and platforms

We are equipped with ladders and platforms to facilitate workers.

Operators stand on the plat and check the materials feeding situation.

Operators can hold water hose and shower the raw material in case of materials overflow.
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 10

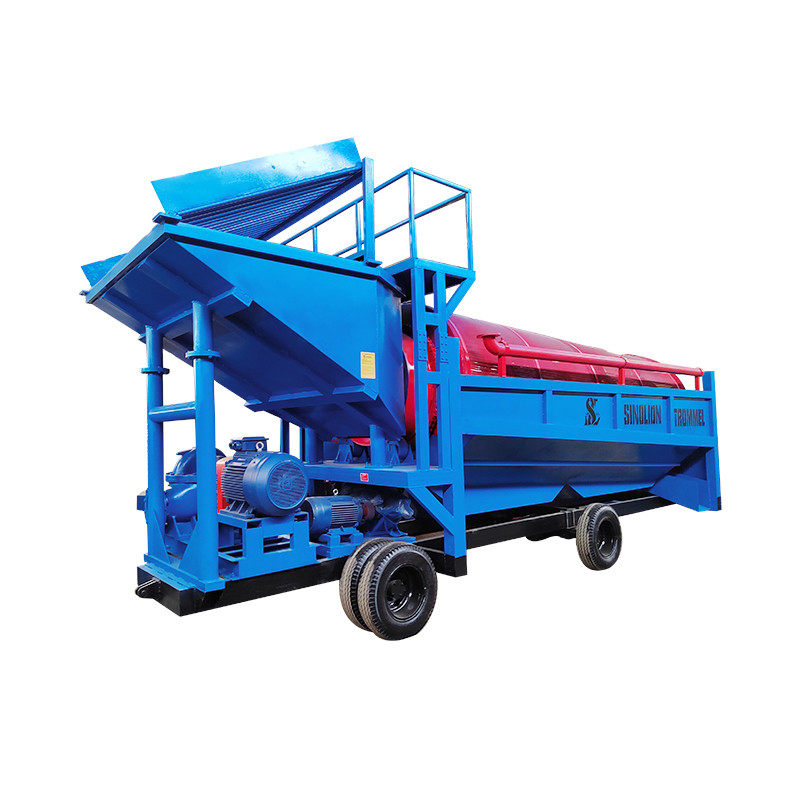

Potable mini size trommel screener
As for small size trommel screener, towing hook is prepared for move easily.

Motor and reducer are installed in the head part for portable usage.



Related Products
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 11
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 12
centrifugal concentrator model
Outlet diameter
STLB30
48 mm
STLB60
76 mm
STLB80
89 mm
STLB100
108 mm
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 13
sluice box width
sluice box length
0.35 m
1.5 m
0.5 m
5 m
1 m
6 m
as your request
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 14
shaking bed surface
material
4520×1850
fiber glass
3000×1620
fiber glass
2100×1050
fiber glass
1100*500
fiber glass
1100*500
aluminium alloy
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 15
model
power
diesel generator
15 KW
diesel generator
30 KW
diesel generator
50 KW
diesel generator
75 KW
diesel generator
100 KW
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 16
name
model
submersible pump
50WQ
80WQ
clean water pump
IS100-80-125A
IS100-65-200
slurry pump
3/2-AH
8/6E-AH
as your actually situation
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 17
model available
Furnace GP
15-25
Furnace ZP
15-160
Fast and Easy Gold Mining with Energy Mining PORTABLE Gold Diamond Trommel Wash Plant 18
model available
Gold amalgamator
VAM-50l/100L
Amalgam retort
D100/D200
