High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models

High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $2,650.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: Canada, United Kingdom, United States, Brazil, Mexico, Russia, Australia
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Type: Laboratory Dry Type Gold Processing Ball Mill Machine Price Motor Type: AC Motor
Capacity(t/h): 0.5-83t/h Dimension(L*W*H): Based On Different Model
Weight: 3.6 KG Warranty: 1 Year
Product Name: Ball Grinding Mill Quartz Gold Processing Ball Mill Machine Application: Gold Ore, Iron Ore, Copper, Quartz, Limestone, Building Material, Etc
Liner: High Manganese, Rubber, Ceramic(as Client Request) Spare Parts: Liner, Grinding Balls
Flow Chart And Foundation: Supply By Seller Operation: Automatically
After Sale Service: The Whole Using Life Grinding Way: Wet Or Dry
Test & Installation: Professional Engineer Supplies Any Help Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Product Description



Ball Mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter is, the slower the rotation speed will be. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the "Critical Speed", and ball mills usually operate at 65% to 75% of the critical speed. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

 High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 0



Gold processing ball mill Working Principle:

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.



Gold processing ball mill Features:



1) Ball mill is an efficient tool for grinding many materials into fine powder.



2) Ball mill is widely used in ore upgrading production line, building material, chemical industry, etc.



3) There are two ways of grinding: the dry way and the wet way.



4) Ball mill can be divided into tabular type and flowing type according to different expelling mine



5) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.



Customized size small mini diesel engine type ball mill is acceptable.

 High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 1



Ball mill technicial parameters:





Model

Rotation speed

(r/min)

Weight of

grinding media

(ton)

Size of feed opening

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

Φ 900x1800 38 1.5 ≤ 20 0.075-0.89 0.65-2 18.5 3.6
Φ 900x3000 38 2.51 ≤ 20 0.075-0.89 1.1-3.5 22 4.6
Φ 1200x2400 32 3.8 ≤ 25 0.075-0.6 1.5-4.8 30-45 12.5
Φ 1200x3000 32 5 ≤ 25 0.074-0.4 1.6-5 30-45 12.8
Φ 1200x4500 32 7 ≤ 25 0.074-0.4 1.6-5.5 55 13.8
Φ 1500x3000 27 8 ≤ 25 0.074-0.4 2-5.8 75-90 17
Φ 1500x4500 27 14 ≤ 25 0.074-0.4 3-6.5 110 21
Φ 1500x5700 27 15 ≤ 25 0.074-0.4 3.5-8 132 24.7
Φ 1830x3000 24 11 ≤ 25 0.074-0.4 4-10 180 28
Φ 1830x6400 24 23 ≤ 25 0.074-0.4 6.5-15 210 34
Φ 1830x7000 24 25 ≤ 25 0.074-0.4 7.5-17 245 36
Φ 2200x5500 21 30 ≤ 25 0.074-0.4 10-22 370 48.5
Φ 2200x6500 21 31 ≤ 25 0.074-0.4 14-26 280 52.8
Φ 2200x7500 21 33 ≤ 25 0.074-0.4 15-29 475 56

High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 2High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 3High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 4

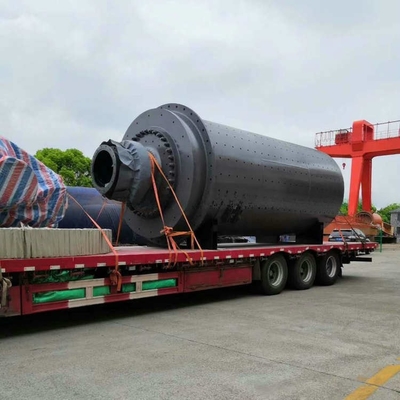

Packaging & Shipping

 High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 5High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 6High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 7

Working site

High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 8High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 9High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 10

Our Services


1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.



2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery;

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.



3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.

Company Information

High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 11High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 12High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 13High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 14High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 15High Capacity Ball Mill for Quartz Gold Processing 0.5-83t/h Based on Different Models 16





FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.



Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.



Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan,  Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc



Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
