The gold trommel screen provide a simple, efficient ,economical solution.This method of screening helps to reduce operating and investment cost and to ncrease product quality, while allowing rapid and large volume processing. 1) Patented unique design allows the trommel screen to have higher capacity, longer drum life and no blockage.
2) Easy to move, it can be dragged by wheel loader or excavators.
3) Gold Recovery rate can be more than 90%.
4) Low water and electricity requirements.
5) Customized by your detailed requirement.

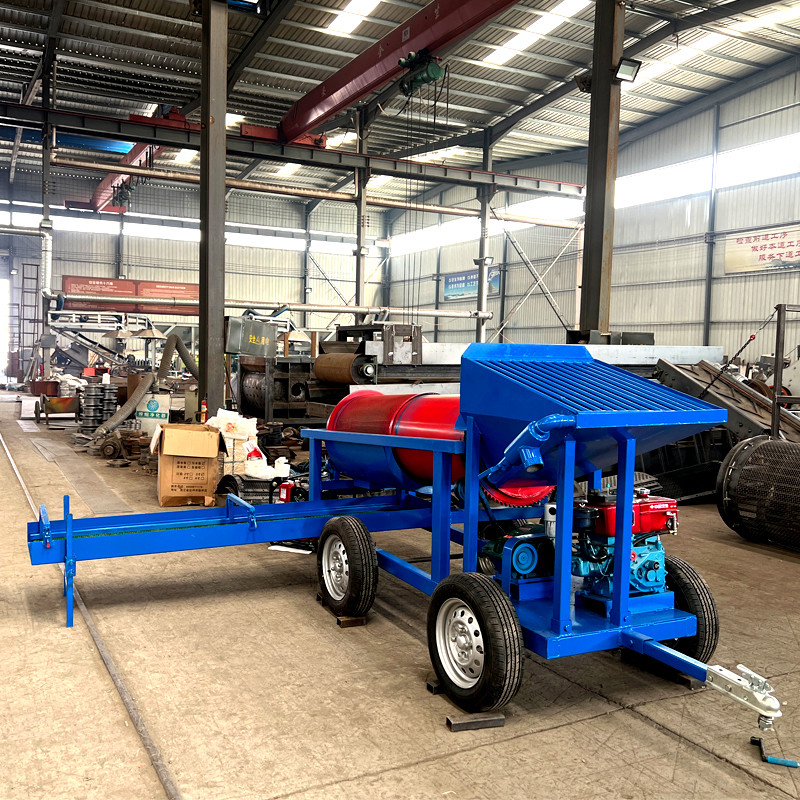

Less Than 6mm Discharge Size Mobile Gold Trommel Screen for Small Scale Mining Operations
Product Details:
Place of Origin: | China |
Brand Name: | Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $4,080.00/sets 1-1 sets |
Detail Information |
|||
Applicable Industries: | Home Use, Energy & Mining | Showroom Location: | Canada, United States, Italy, Philippines, Mexico, Chile, UAE, Australia |
---|---|---|---|
Condition: | New | Type: | Gravity Separator, Circular |
Production Capacity: | 5-10t/h | Voltage: | 220V/380V |
Dimension(L*W*H): | 3000*1000*1800mm | Weight: | 620 KG |
Warranty: | 1 Year | Marketing Type: | New Product 2022 |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine |
Key Selling Points: | Patented Product | Product Name: | Gold Washing Machine For Small Scale Mining |
Dimension: | Depends On Model | Feeding Size: | Less Than 300mm |
Advantage: | High Separation Efficiency | Installation: | Supply Manual To Guide User |
Discharge Size: | Less Than 6mm | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
After Sale Service: | Life-long Service | Application Area: | Gold River Sand |
Product Description
Mobile Gold Washing Machine For Small Scale Mining Gold Tromme Screen
Structure and Principle
The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper. 2. Selection And Cleaning Of Raw Materials Raw Materials Of The Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel. 3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Product Name | Model | Capacity (t/h) | Power(kw) | Diameter(mm) | Length(mm) |
Gold trommel screen | GMTS0519 | 5-10 | 1.5 | 500 | 1910 |
Production Site
