Like all machines in the GTS series, the GTS 1540 not picky about sifting out waste and raw materials regards. It is equally suitable for compost, soil,light rubble, wood, biomass, sand and gravel etc.
Screening materials: earth, sand, gravel, compost, wood chips, construction waste, recycling material, slag, crushed stone and
stone in grain sizes from 2 mm to 80 mm
High Capacity GTS 1540 Mobile Trommel Screen for Compost Rotary Drum Screen Sale
Product Details:
Place of Origin: | Henan, China |
Brand Name: | sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $24,610.00/sets >=1 sets |
Detail Information |
|||
Applicable Industries: | Building Material Shops, Manufacturing Plant, Restaurant | Showroom Location: | None |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
Core Components: | Engine, Bearing, Gear | Condition: | New |
Type: | Circular | Application: | Ore, Earth, Sand, Gravel, Compost, Wood Chips, Construction Waste |
Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
Weight: | 2200 KG | Warranty: | 1 Year |
Product Name: | GTS 1540 Mobile Trommel Screen Compost Rotary Drum Screen For Sale | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
Conveyor Angle: | 25 Degrees | Screen Size: | 20*20mm |
Discharge Size: | As Request | Screen Thickness: | 4mm |
Spare Parts Supplying: | Lifelong Provide |
Product Description
Product Overview

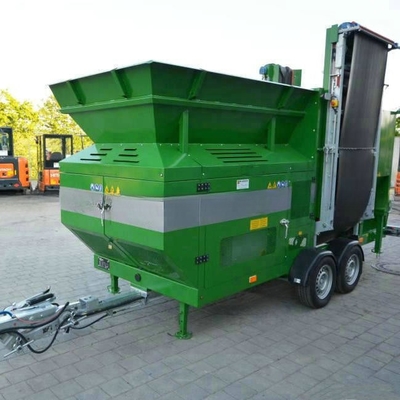

High capacity GTS 1540 mobile trommel screen compost rotary drum screen for sale
This wheeled mobile trommel screen systems’ high flexibility and the comprehensive range of products, from the smallest screening machine with less than 1.8 tons to the largest with up to 20 tons, enable the company to serve customers from the gardening,landscaping, recycling, timber, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine are not only used in the processing of earth materials, but also in more specific fields of application, such as the extraction of recyclable fractions of plastics, foils and wood chips and in the processing of compost, milled material, building rubble, stones, gravel, as well as glass or even in the recycling of sandbags.
FEATURES AT A GLANCE

Scope of application
Advantages
·Quick change system for the sieve insert, optionally drum or star screen insert
·Large 2 m³ feed hopper with a loading height of just 1.8 m ·2.5 m long discharge belts with 1.75 m delivery height
·Electronic load control for a perfect screening result optimal throughput
·Perfect mobility thanks to compact transport dimensions
·Large 2 m³ feed hopper with a loading height of just 1.8 m ·2.5 m long discharge belts with 1.75 m delivery height
·Electronic load control for a perfect screening result optimal throughput
·Perfect mobility thanks to compact transport dimensions






PRODUCT SPECIFICATIONS
GTS1540 Specifications | ||||||||
Dimensions | Trommel | |||||||
A Operating Length | 28' 2" (860 cm) | Trommel Diameter | 4' 10" (150 cm) | |||||
B Operating Height | 9' 35" (285.5cm) | Screening Area | 202.8ft2 (18.84 m2) | |||||
C Travel Length | 11' 65" (355 cm) | 1#Fines Conveyor | ||||||
D Travel Height | 8' 36" (255 cm) | Conveyor Length | 11'5" (350cm) | |||||
E Travel Width | 5' 6" (170cm) | Conveyor Width | 11' 3" (100cm) | |||||
F Trommel Length | 17' 8" (540 cm) | Conveyor Angle | 17.85 degrees | |||||
G Hopper Length | 9' 10" (300 cm) | 2#Fines Conveyor | ||||||
H Fines Conveyor Height | 5' 3" (160 cm) | Conveyor Length | 11'5" (350cm) | |||||
Weight | Conveyor Width | 11' 3" (100cm) | ||||||
Machine Weight Approx | Conveyor Angle | 17.85 degrees | ||||||
Power train | Screen (Standard) | |||||||
Horsepower | 40hp (30 kW) | Screen size | 20*20mm | |||||
Fuel Tank Capacity | 13.2 USAgal (50 L) | Screen thickness | 4mm | |||||
Feed System | Production | |||||||
Hopper Capacity | 6.3 yd³ (4.8 m3) | Screening Performance | 78 yd³ (90 m³) per hour | |||||
Hopper Width | 5' 6" (170 cm) | Actual output may vary due to moisture content, material density, material size, and support equipment) Specifications subject to change without notice |
Successful Project


Company Profile





FAQ
1. What's the delivery time after I pay the deposit ?
In your first inquiry, please let us know your information and requirements, we will give you guidance for choosing the right
machine.
2. Is mineral samples analysis available?
Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable
solution and equipment selection.
3. What's the delivery time after I pay the deposit?
We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.
4. How long of your machine quality guarantee terms ?
Quality guarantee time is one year(wearing parts excluded).
In your first inquiry, please let us know your information and requirements, we will give you guidance for choosing the right
machine.
2. Is mineral samples analysis available?
Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable
solution and equipment selection.
3. What's the delivery time after I pay the deposit?
We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.
4. How long of your machine quality guarantee terms ?
Quality guarantee time is one year(wearing parts excluded).
