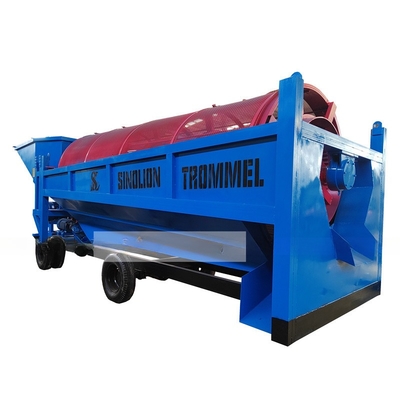

Alluvial Gold Mining Machine Mobile Trommel Screen for Separating Gold in Small Scale
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $14,500.00/sets 1-1 sets |
Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
Detail Information |
|||
Applicable Industries: | Home Use, Energy & Mining, Other | Showroom Location: | Canada, United Kingdom, United States, Italy, UAE, Colombia, Australia |
---|---|---|---|
Condition: | New | Type: | Gravity Separator |
Production Capacity: | 98% | Voltage: | 380V/415V/440V |
Dimension(L*W*H): | As Per Different Model | Weight: | 3000 KG |
Warranty: | 1 Year | Marketing Type: | Hot Product 2022 |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Engine |
Key Selling Points: | High Recovery Rate | Product Name: | Mobile Gold Trommel Screen |
Application: | Alluvial Gold Washing, Diamond, Rock, Soil, River Gold | Keywords: | Alluvial Gold Mining Machine |
Capacity: | 5-350t/h | Recovery Rate: | 98% |
Advantage: | High Separation Efficiency | Dimension: | As Per Different Model |
Feature: | High Recovery | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Installation: | Supply Manual To Guide User | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Product Description

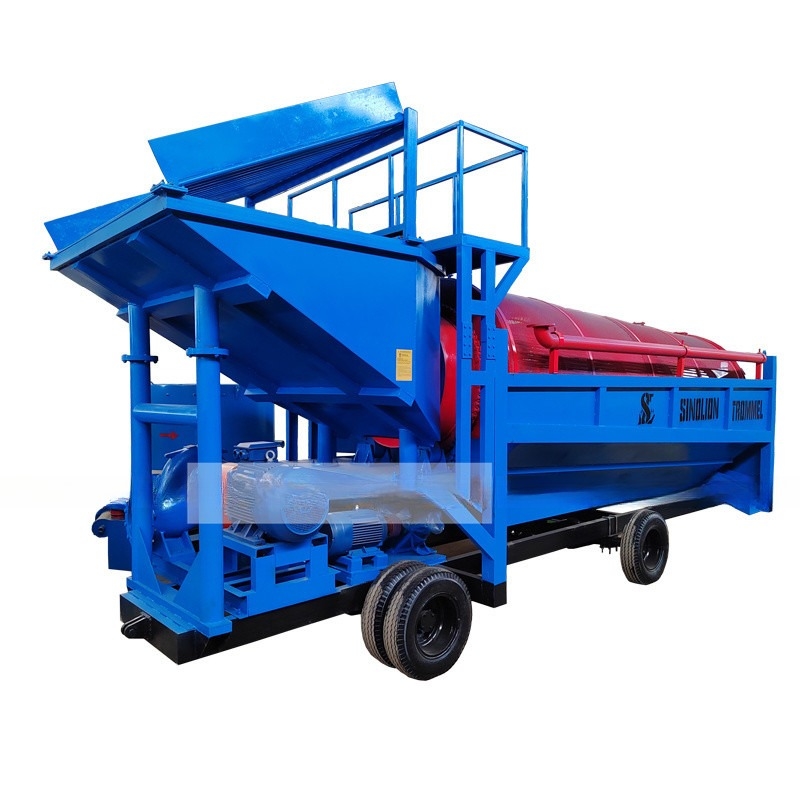

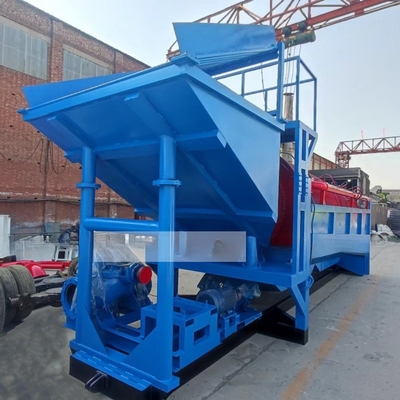

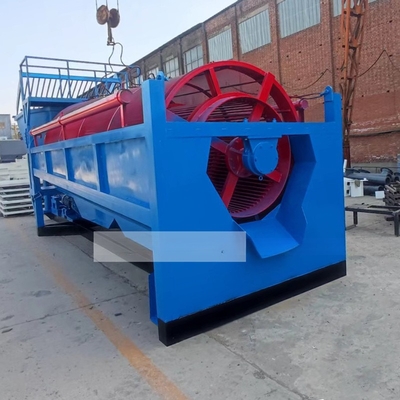

Mobile gold mining equipment is widely used gold processing plant, diamond wash plant and other alluvial mineral processing plant. It's composed by hopper, trommel screen, chassis, tires, turntable, generator and control panel, also can be equipped with vibrating sluice and gold sluice. The mobile washing plant is an optimized removable platform for recovery of gold, tin, diamond or other minerals, applicable to small or medium scale of placer ore processing that need mobile operation.


Features: (1) Feeding system with grizzly hopper feeder, water spray pipes inside the hopper for spray waters to the soils. (2) Heavy duty clay scrubber with inside high pressure water spray pipes for breaking off hard clay. (if required) (3) Double sieve trommel screen with high pressure water spray pipes on both sides for washing, screening and separating. (4) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%). (5) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc. (6) Multiple sets of heavy duty mining type tires with towing mechanism for fully mobility and portability. (7) Gold refinery plant to make final product of gold bars. (8) Easy for installation, operation and maintaining. (9) One-Sop gold mining solutions from A to Z.
Main technical parameter
Model | Capacity (t/h) | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
GMTS0519 | 5-10 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |
GMTS1020 | 10-30 | 10-30 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
GMTS1545 | 50-120 | 50-120 | 1500 | 4500 | 0-100 | ≤400 | 8160×2300×2500 |
GMTS1548 | 80-150 | 80-150 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
GMTS1848 | 100-200 | 100-200 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
GMTS2060 | 200-350 | 200-350 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |

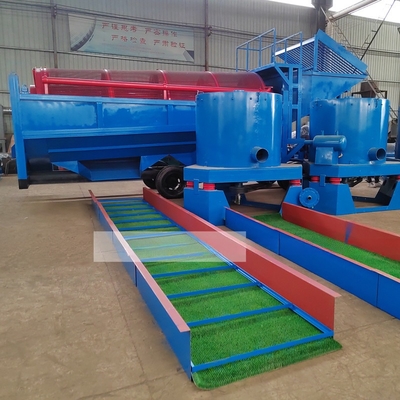

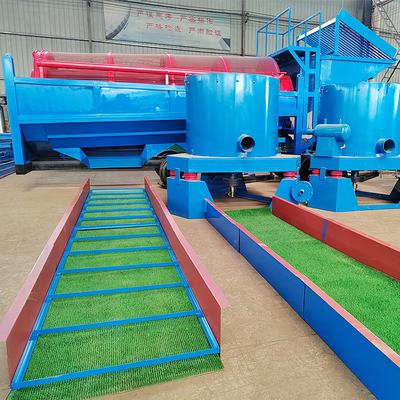

Case
