Mobile Trommel Gold Washing Plant for 3000 KG Capacity Gold Separation Mining Equipment
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $14,500.00/sets 1-49 sets |
Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
Detail Information |
|||
Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United Kingdom, United States, Italy, UAE, Colombia, Australia |
---|---|---|---|
Condition: | New | Type: | Gravity Separator |
Production Capacity: | 98% | Voltage: | 380V/415V/440V |
Dimension(L*W*H): | As Per Different Model | Weight: | 3000 KG |
Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Engine |
Key Selling Points: | High Recovery Rate | Product Name: | Mobile Gold Trommel Screen |
Application: | Alluvial Gold Washing, Diamond, Rock, Soil, River Gold | Keywords: | Alluvial Gold Mining Machine |
Capacity: | 5-350t/h | Recovery Rate: | 98% |
Advantage: | High Separation Efficiency | Dimension: | As Per Different Model |
Feature: | High Recovery | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Installation: | Supply Manual To Guide User | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Product Description
Mobile trommel gold washing plant laundering equipment is one of the most popular gold laundering equipment on the market. The machine has a high gold recovery capacity, simple operation and convenient cleaning. The whole machine can be turned off in 1 minute. The equipment can work in different construction and operation areas, and the operation cost is low.

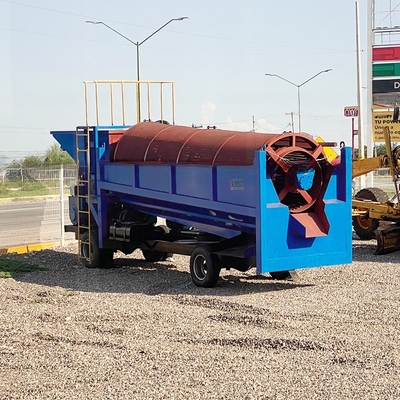

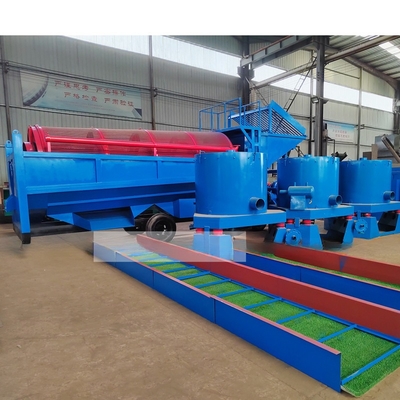

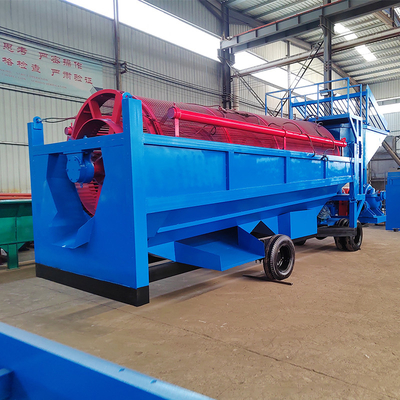

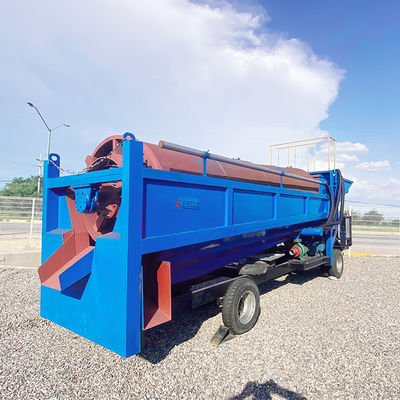

The mobile trommel gold washing plant is designed for alluvial/placer gold ore processing, it's consist a half covered trommel screen, one diesel engine/ electric motor, water pump& water pipes, and other facilities such as the feeding hoper and the mobile system. This mobile trommel machine normally working together with sluice box , gold centrifugal concentrator and shaking table to form a complete concentration plant(check below picture)

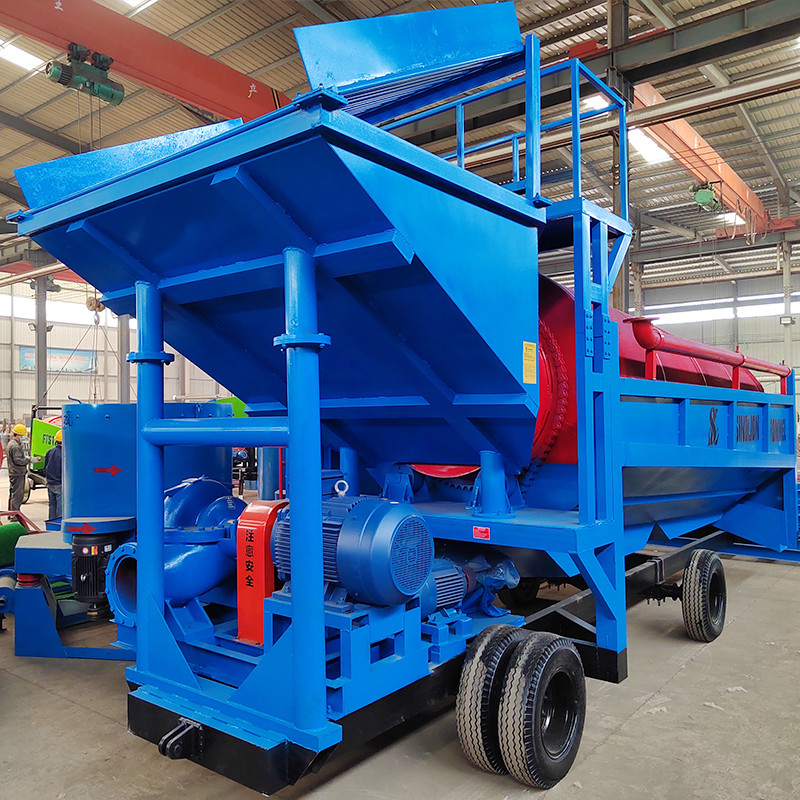

When a material that contains gold is added into the hopper, the machine sprays high pressure water on material so that the gold particles can be extracted. Different gold trommel models use different amounts of water jets, but the main objective is to break any mud or clay that could hide the gold and prevent it from being caught in the sluice box. The hopper of the gold trommel usually has a metal grate that keeps the large rocks from entering into the machine. This device is known as a grizzly.
The procedure starts when the gold bearing material enters the rotating drum. The rotating drum is mainly constructed of screen material, which allows the smaller gravel to fall freely into the sluice box. The combination of rotating drum and high-pressure water enables the machine to break any dirt and clay inside the rotating drum. This action continues until the material is broken into small gold bearing pieces that can exit the gold trommel through the cylinder holes.

Features: (1) The gold washing plant are designed according to your specific mining conditions and requirements. (2) Feeding system with grizzly hopper feeder, water spray pipes inside the hopper for spray waters to the soils. (3) Heavy duty clay scrubber with inside high pressure water spray pipes for breaking off hard clay. (if required) (4) Double sieve trommel screen with high pressure water spray pipes on both sides for washing, screening and separating. (5) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%). (6) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc. (7) Multiple sets of heavy duty mining type tires with towing mechanism for fully mobility and portability. (8) Gold refinery plant to make final product of gold bars. (9) Easy for installation, operation and maintaining. (10) One-Sop gold mining solutions from A to Z.
Main technical parameter
Model | Capacity (t/h) | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
GMTS0519 | 5-10 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |
GMTS1020 | 10-30 | 10-30 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
GMTS1545 | 50-120 | 50-120 | 1500 | 4500 | 0-100 | ≤400 | 8160×2300×2500 |
GMTS1548 | 80-150 | 80-150 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
GMTS1848 | 100-200 | 100-200 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
GMTS2060 | 200-350 | 200-350 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
Case
