Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore

Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $1,200.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Jaw Crusher
Application: Chemical Industry, Stone, Ore, Glass, Motor Type: AC Motor
Capacity(t/h): 1-500t/h Dimension(L*W*H): As Per Different Model
Weight: 820 KG Warranty: 18 Month Excluding Spare Parts
Marketing Type: New Product 2020 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor Key Selling Points: Mobile, Diesel Engine
Model: PE Series Jaw Crasher Installation: Supply Manual And Send Engineer To Guide User
Feeding Size: 0-1020mm Discharge Size: 0-300
Jaw Plate Material: High Manganese Driving Type: Diesel Engine Or Motor
Wearing Parts: Jaw Plates Product Name: Jaw Crasher Machine
Price: Negotiable Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Product Description



Introduction of mobile jaw crasher:



Jaw crasher is mainly used for crushing a variety of ores and medium bulk materials, also it can process the rock with compression strength not more than 320Mpa.Jaw crusher can be divided into coarse and fine two kinds of crushing machine.Complete jaw crusher specifications,which feed particle size of 25mm ~ 750mm,is the first choice for primary crushing equipment.

PE series jaw crrashers are suitable for rough flow, PEX series for second and fine crushing. Jaw crasher is made of high-strength steel, which is a moulding casting with wear, compression, long life and other advantages.





Jaw crasher working principle:



The structure of jaw crasher contains the frame, eccentric shaft, big belt pulley, flywheel, movable jaw, side guard plate, toggle plate, rear seat of toggle plate, modulation gap screw, returning spring, fixed jaw plate and movable jaw plate, etc, among which the toggle plate is used for safety. The working mode of this series jaw crusher is pressing deviously.



Primary jaw crasher technical parameters:



Model

max feed size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

PE-150×250 125 10-40 1-3 5.5 0.8
PE-200×300 180 20-70 2-8 11 1.4
PE-250×400 210 20-80 5-20 15 3
PE-400×600 350 40-100 15-60 30 6.5
PE-500×750 425 50-100 40-110 55 11.3
PE-600×900 480 65-160 90-150 75 17.625
PE-750×1060 630 80-160 100-250 90-110 27.5
PE-900×1200 750 95-165 120-300 110-160 52
PE-1000×1200 850 110-260 180-350 110-160 57
PE-1200x1500 1020 150-300 300-500 180-220 100



Secondary jaw crasher technical parameters:



Model

max feed size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

PEX-150×750 120 8-25 10-40 15 3.5
PEX-250×750 210 12-25 15-50 30 5.5
PEX-250×1000 210 12-50 30-95 37 6.37
PE-350×750 300 15-50 20-50 30 6.5
PE-300×1300 250 20-90 45-130 75 11
PE-600×900 480 65-160 90-150 75 17.625



Jaw crusher structure:

Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 0



Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 1Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 2

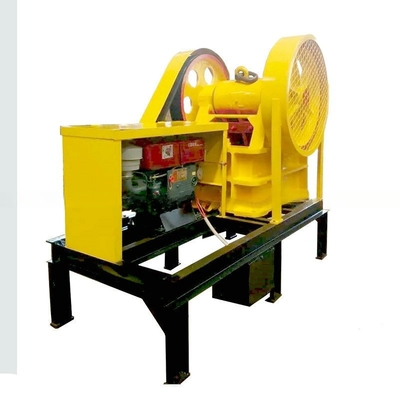

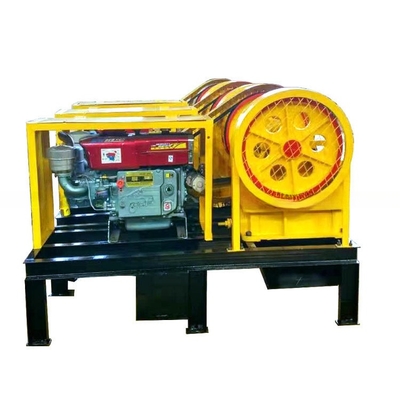

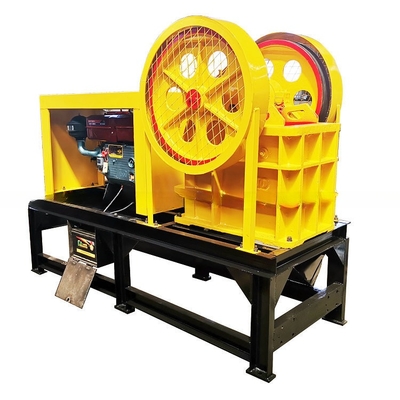

Mobile jaw crusher:

Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 3

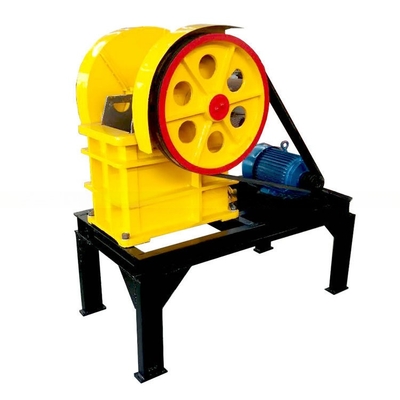

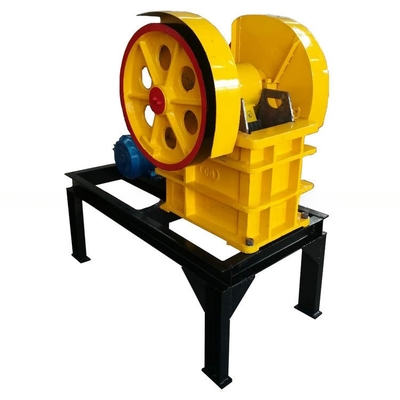

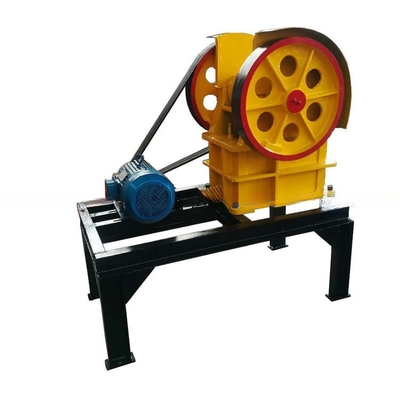

Small jaw crusher:

Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 4Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 5



Working site

 Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 6

Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 7Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 8

Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 9Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 10

Our Services

 1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.



2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery;

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.



3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.



Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 11



Company Information

Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of briquette equipment, building material equipment, and mining machinery.



After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, and SINOLION products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market.



SINOLION provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and SINOLION strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. SINOLION Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install coal production lines.



We will continue to adhere to "Quality is our eternal pursuit and pride", create new glories with customers! Welcome to SINOLION for visiting and seeking common development.



Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 12Small Mini Mobile Jaw Crasher 150x250 200x300 for Kaolin Marble Dolomite Coal Iron Ore 13



FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.



Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.



Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan,  Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc



Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
