High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size

High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $1,200.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Jaw Crusher
Application: Pebble, Rock, Marble, Boulders, Brick , Cobble, Brick, Granite, Basalt, Gravel, Coal Gangue, Gold Copper Iron Ore Motor Type: AC Motor
Capacity(t/h): 1-500t/h Dimension(L*W*H): As Per Different Model
Weight: 550 KG Warranty: 24 Months Excluding Spare Parts
Marketing Type: New Product 2020 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor Key Selling Points: High Efficiency
After-sales Service Provided: Engineers Available To Service Machinery Overseas Feeding Size: 0-1020mm
Discharge Size: 0-300 Jaw Plate Material: High Manganese
Driving Type: Diesel Engine Or Motor Wearing Parts: Jaw Plates
Installation: Supply Manual Drawing And Send Engineer To Guide User Price: Negotiable
Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Product Description



Introduction of jaw stone buster:



1. Lab jaw crusher is widely used in the works of mine, smelting, building materials, road, railway, irrigation,chemical industry etc.



2. The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 320MPA. It is the preferred equipment of secondary crushing.



Jaw brick crusher working principle:



The motor drives the belts and the belt wheels, and make the movable jaw up and down by the

eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw rises, the angle

between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves

from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.



High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 0





Primary jaw brick crusher specifications:



Model

max feed size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

PE-150×250 125 10-40 1-3 5.5 0.8
PE-200×300 180 20-70 2-8 11 1.4
PE-250×400 210 20-80 5-20 15 3
PE-400×600 350 40-100 15-60 30 6.5
PE-500×750 425 50-100 40-110 55 11.3
PE-600×900 480 65-160 90-150 75 17.625
PE-750×1060 630 80-160 100-250 90-110 27.5
PE-900×1200 750 95-165 120-300 110-160 52
PE-1000×1200 850 110-260 180-350 110-160 57
PE-1200x1500 1020 150-300 300-500 180-220 100



Secondary jaw brick crusher specifications:



Model

max feed size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

PEX-150×750 120 8-25 10-40 15 3.5
PEX-250×750 210 12-25 15-50 30 5.5
PEX-250×1000 210 12-50 30-95 37 6.37
PE-350×750 300 15-50 20-50 30 6.5
PE-300×1300 250 20-90 45-130 75 11
PE-600×900 480 65-160 90-150 75 17.625



Jaw brick crusher structure:

High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 1

High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 2

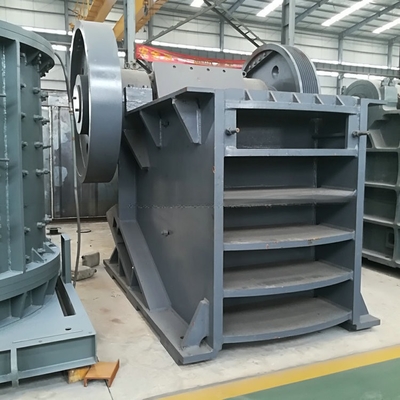

Portable diesel engine jaw crusher:



High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 3

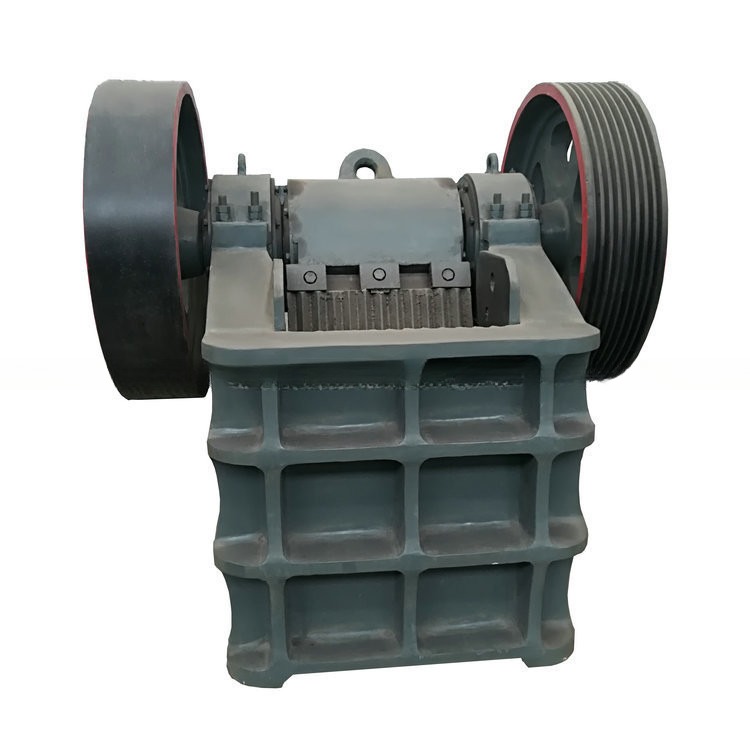

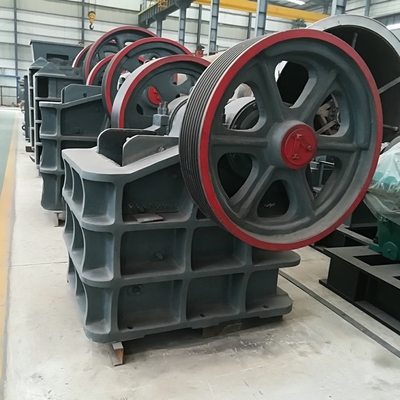

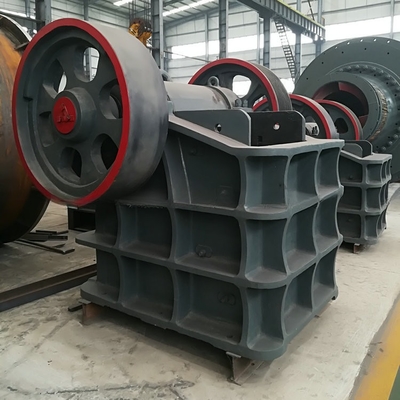

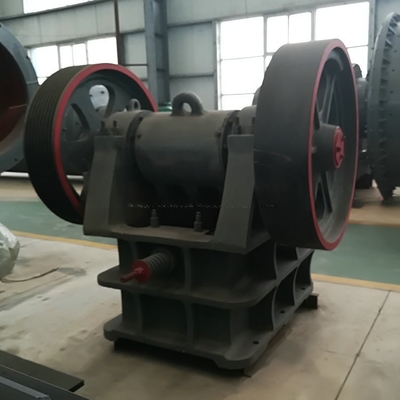

Finished jaw crushers:

High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 4

High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 5

High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 6High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 7

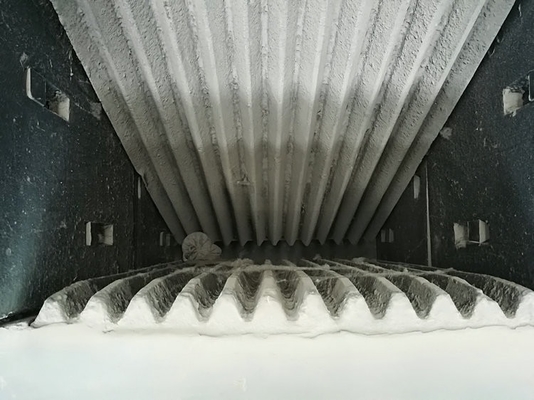

Laboratory jaw crusher spare parts:

High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 8

Working site

 Jaw crushers from Sinolion customers working site:

High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 9

Our Services

 1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.



2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery;

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.



3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.



High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 10



Company Information

Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of briquette equipment, building material equipment, and mining machinery.



After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, Sinolion has continuously improved product values and performance. Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, and Sinolion products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market.



Sinolion provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and Sinolion strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. Sinolion Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install coal production lines.



We will continue to adhere to "Quality is our eternal pursuit and pride", create new glories with customers! Welcome to Sinolion for visiting and seeking common development.



High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 11High Manganese Jaw Plate Mobile Mini Stone Rock Crusher 250x400 with 0-300 Discharge Size 12



FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.



Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.



Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan,  Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc



Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
