2022 South Africa Stone Ore Powder Grinding Mill Ball Mill Machine Wet or Batch Type
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,686.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2021 | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Gearbox | Condition: | New |
| Type: | Ball Mill | Motor Type: | AC Motor |
| Capacity(t/h): | 0.5-83t/h | Dimension(L*W*H): | Based On Different Model |
| Weight: | 3600 KG | Warranty: | 2 Years For The Quality Of Equipment |
| Application: | Gold Ore Iron Copper, Quartz Limestone,clinker,cement,chromite,Al2o3 | Liner: | High Manganese, Rubber, Ceramic(as Client Request) |
| Spare Parts: | Liner, Grinding Balls, Grinding Media | Grinding Material: | Calcium Carbonate, Calcite, Dolomite,bauxite,aragonite |
| Operation: | Automatic Or Manual | After Sale Service: | The Whole Using Life |
| Grinding Way: | Wet Type Or Dry Type Or Batch Type | Including: | Gearbox, Gear, Pinion, Liner, Manual, Bearing, Specifications |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description

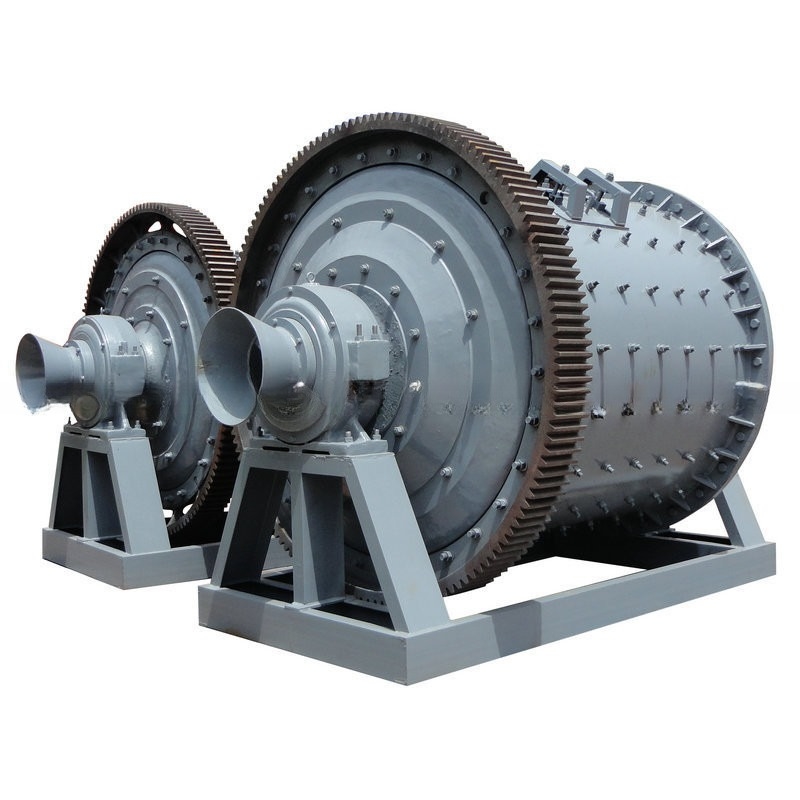

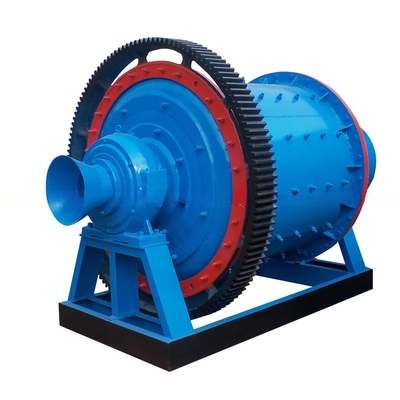

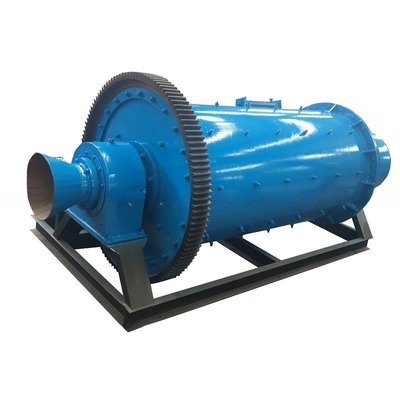

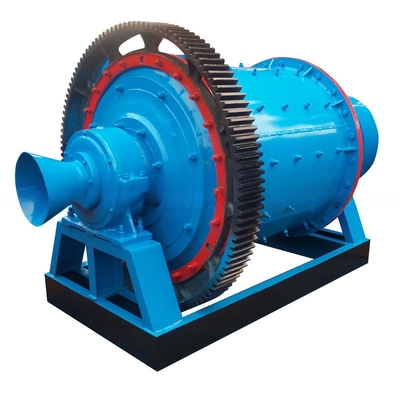

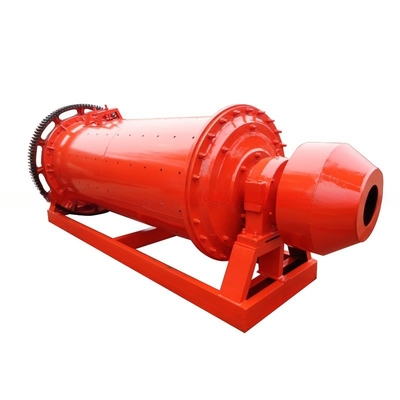

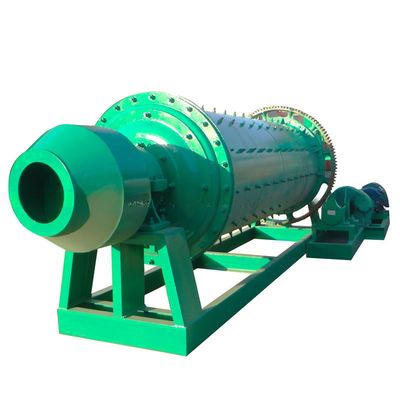

Stone Ore Powder Grinding Mill Ball Mill Machine for South Africa
The ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics
Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.
Grinding is the last stage in the process of communication; in this stage the particles are reduced by a communication of impact and abrasion, either dry or in suspension in waterBall mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. It is performed in rotating cylindrical steel vessels known as tumbling mills.
Wet dry gold ball mill for sale technicial parameters:
| Model | Rotation speed (r/min) | Weight of grinding media (ton) | Size of feed opening (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (T) |
| Φ 900x1800 | 38 | 1.5 | ≤ 20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Φ 900x3000 | 38 | 2.51 | ≤ 20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| Φ 1200x2400 | 32 | 3.8 | ≤ 25 | 0.075-0.6 | 1.5-4.8 | 30-45 | 12.5 |
| Φ 1200x3000 | 32 | 5 | ≤ 25 | 0.074-0.4 | 1.6-5 | 30-45 | 12.8 |
| Φ 1200x4500 | 32 | 7 | ≤ 25 | 0.074-0.4 | 1.6-5.5 | 55 | 13.8 |
| Φ 1500x3000 | 27 | 8 | ≤ 25 | 0.074-0.4 | 2-5.8 | 75-90 | 17 |
| Φ 1500x4500 | 27 | 14 | ≤ 25 | 0.074-0.4 | 3-6.5 | 110 | 21 |
| Φ 1500x5700 | 27 | 15 | ≤ 25 | 0.074-0.4 | 3.5-8 | 132 | 24.7 |
| Φ 1830x3000 | 24 | 11 | ≤ 25 | 0.074-0.4 | 4-10 | 180 | 28 |
| Φ 1830x6400 | 24 | 23 | ≤ 25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| Φ 1830x7000 | 24 | 25 | ≤ 25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Φ 2200x5500 | 21 | 30 | ≤ 25 | 0.074-0.4 | 10-22 | 370 | 48.5 |
| Φ 2200x6500 | 21 | 31 | ≤ 25 | 0.074-0.4 | 14-26 | 280 | 52.8 |
| Φ 2200x7500 | 21 | 33 | ≤ 25 | 0.074-0.4 | 15-29 | 475 | 56 |
Packing Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.
Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
