380V/415V/440V Mini Steel Plate Punching Material Screening Compost Mobile Trommel Screen
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 100 Set/Sets per Month mobile trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Brazil, Colombia, South Africa |
|---|---|---|---|
| Video Outgoing-inspection: | Not Available | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Gearbox | Condition: | New |
| Type: | Circular | Application: | Ore, Screening Compost |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | 3150*1100*1650MM |
| Weight: | 520 KG | Warranty: | 1 Year |
| Product Name: | Mobile Trommel Screen 0818 | Installation: | Supply Manual To Guide User |
| Keywords: | Automation | Feeding Size: | Less Than 300mm |
| Feature: | Simple Operation | Discharge Size: | Less Than 6mm Or As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | MOQ: | 1Set |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Sales Of Mini Steel Plate Punching Material Screening Compost Mobile Trommel Screen

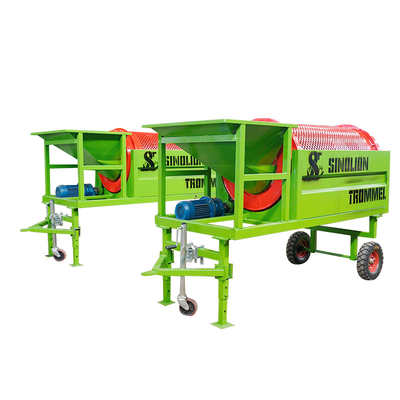

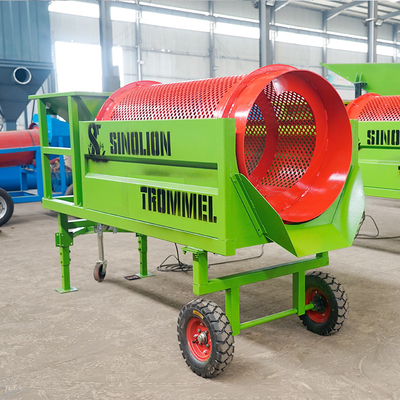

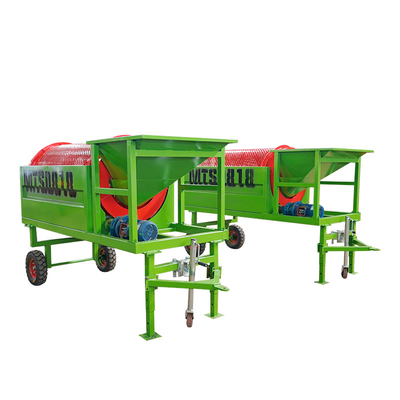

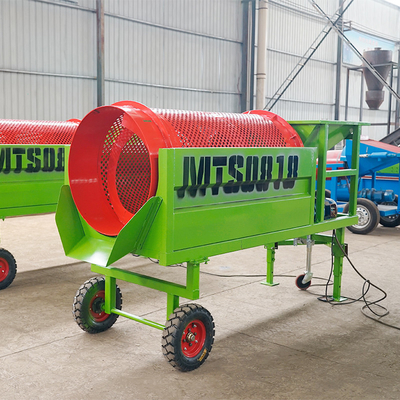

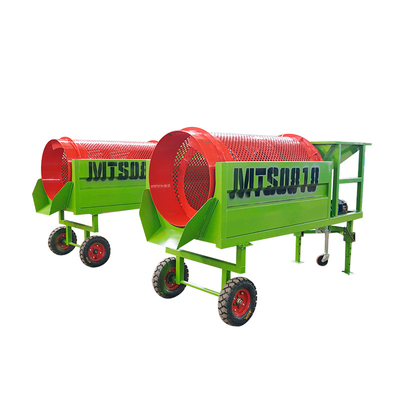

The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Structure and Principle
The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Product Name | Product Type | Trommel Diameter | Trommel Length | Trommel Power |
Mobile trommel screen | MTS0818 | 0.8m | 1.8m | 2.4kw |
