Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel

Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel

Product Details:

Place of Origin: Henan, China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00 - $24,000.00/sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. <br>Motor is packed
Supply Ability: 40 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other Showroom Location: United States, Mexico, UAE, Australia, None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2022 Warranty Of Core Components: 1 Year
Core Components: Engine, Motor, Pump Condition: New
Type: Circular Application: Ore
Voltage: 380v/415v/440v Dimension(L*W*H): 8*2.2*3.6m
Weight: 6500 KG Warranty: 1 Year
Keyword: Mini Portable Gold And Diamond Trommel Dimension: 8*2.2*3.6m
Installation: Supply Manual To Guide User Capacity: 80-150 Tons Per Hour
Feeding Size: Less Than 300mm Discharge Size: As Request
Color: Red, Blue, Gray( Or As Client Request) After-sales Service Provided: Field Installation, Commissioning And Training
Port: Qingdao, Dalian, Tianjin, Lianyungang, Dalian, Shanghai, Guangzhou( As Client Request)

Product Description

Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond TrommelAlluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 0Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 1

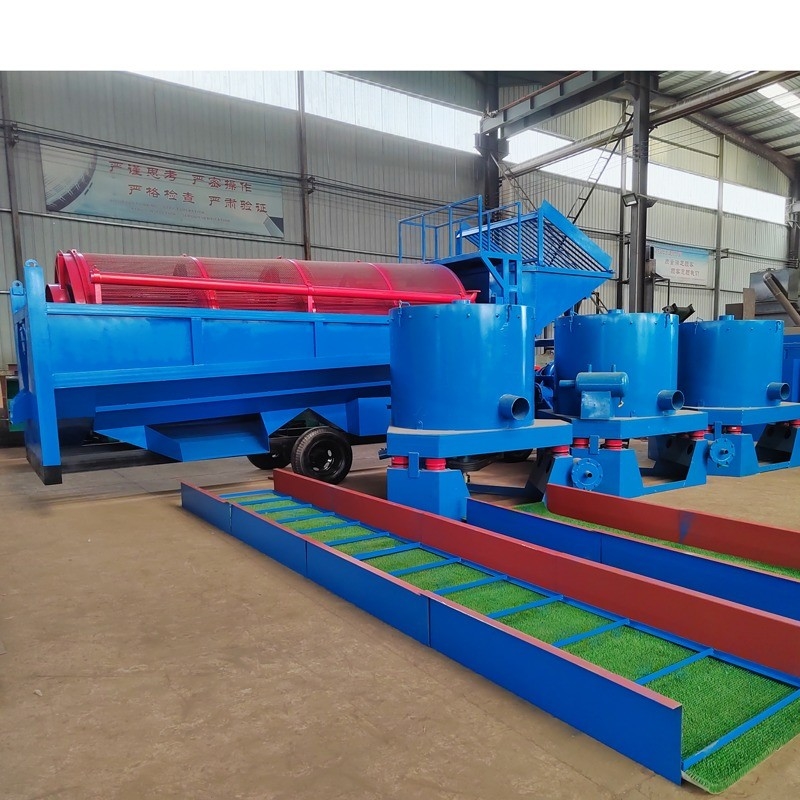

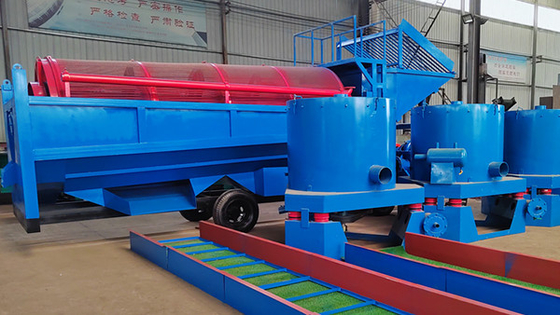

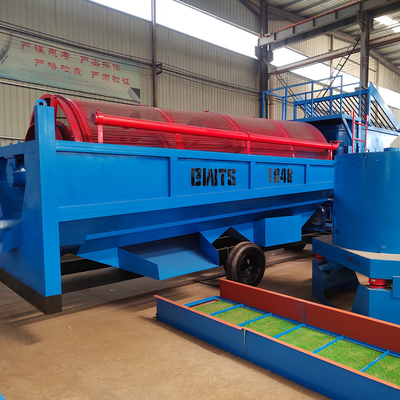

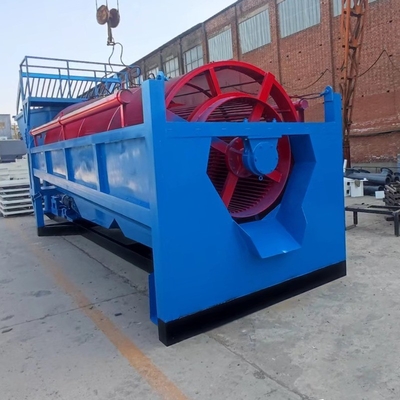

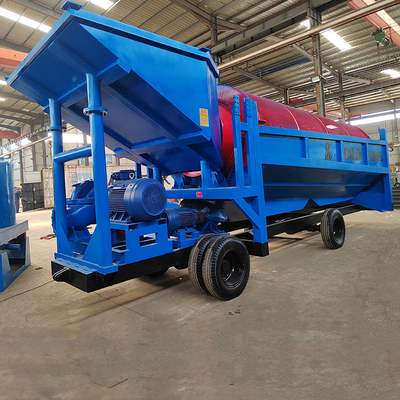

Mobile trommel screen is designed for alluvial/placer gold ore processing, it's consist of a half covered trommel screen, one diesel engine/ electric motor, water pump& water pipes, and other facilities such as the feeding hoper and the mobile system. This mobile trommel machine normally works together with sluice box , gold centrifugal concentrator and shaking table to form a complete ore concentration plant.

In addition,our trommel screens all use Honda engines. It is very convenient for personal operation.



Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 2Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 3Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 4Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 5



Gold sluice box working principle:
1. Input of raw materials    Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.

2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.

3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.



technical parameters



Model

Capacity

(t/h)

Power

(kw)

Diameter

(mm)

Length

(mm)

Discharge

(mm)

Input

(mm)

Dimension

(mm)

YGTS0519

5-10

3

500

1900

0-100

≤300

3390×1100×1640

YGTS1020 10-30 4.0 1000 2000 0-100 ≤300 3390×1400×2140
YGTS1225 30-50 5.5 1200 2500 0-100 ≤300 4146×1600×2680
YGTS1545 50-120 11 1500 4500 0-100 ≤400 8160×2>300×2500
YGTS1548 80-150 11 1500 4800 0-100 ≤400 8460×2300×2500
YGTS1848 100-200 15 1800 4800 0-100 ≤400 8460×2300×2700
YGTS2060 200-350 30 2000 6000 0-100 ≤400 9680×2300x3420







Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 6

Packaging & Shipping

Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 7



Case

Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 8

Customer

Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 9

Company Information

Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 10

Zhengzhou Sinolion Machinery is a Chinese company with a department specialized in screening equipment;

Being consultant, designer and adviser of placer gold washing plant. Our company manufacture MTS Series mobile trommel screener, GMTS Series gold washing plant, MSW sorting plant and related equipment.



After 10 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion Machinery has been awarded as the pioneer in the field of screener manufacture in China.



SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with environmental engineering research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, there are 80 employees in Sinolion, among which over 30 are holders of Bachelor's Degree and above, and nearly 70% of senior and experienced engineers of researchers specializing in electrical engineering, mechanical engineering, hydraulics, logistics and so on.



SINOLION provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and SINOLION strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. SINOLION Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install production lines.



Like Sinolion, sincere, responsible, diligent and helpful, it brings together many ambitious talents who are good at different fields.

Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 11

Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 12





Related products
Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 13 Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 14 Alluvial Gold Mining Equipment Separator Mini Portable Gold and Diamond Trommel 15
Small Gold Trommel Screen Centrifugal Concentrator Shaking Table
