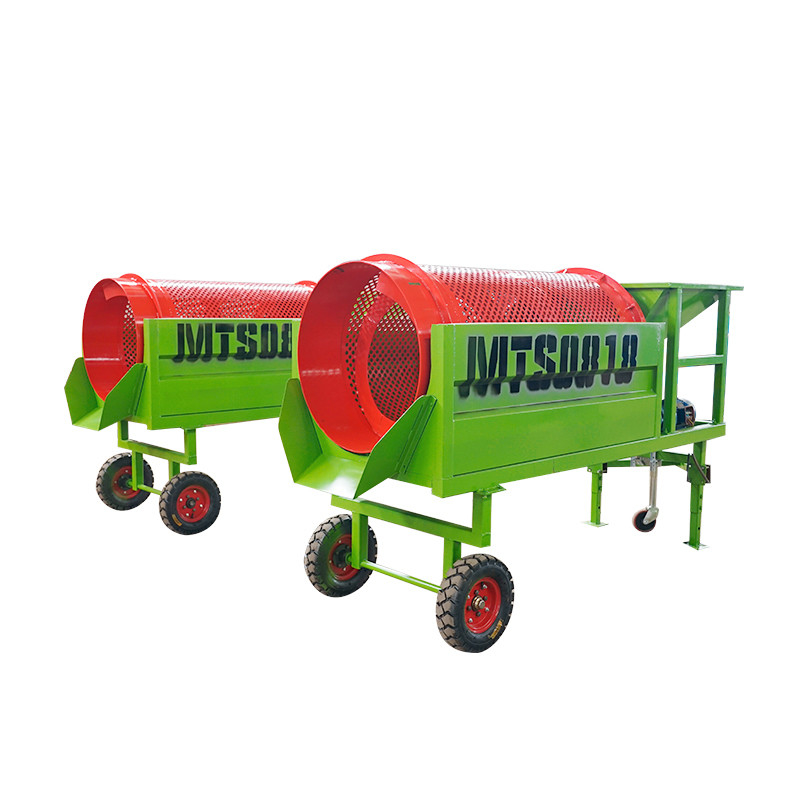

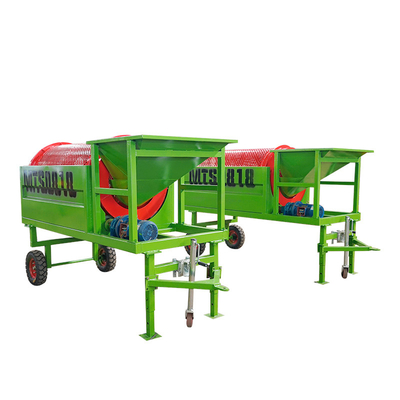

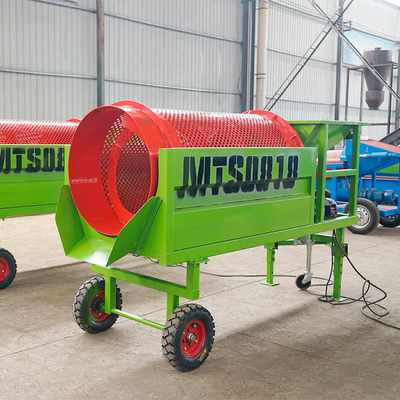

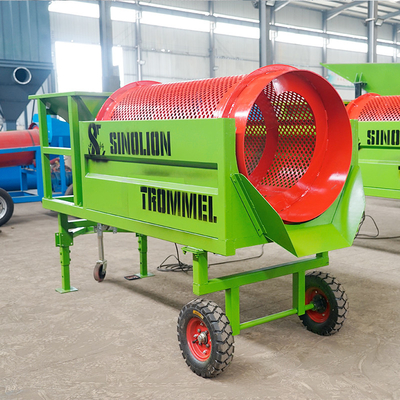

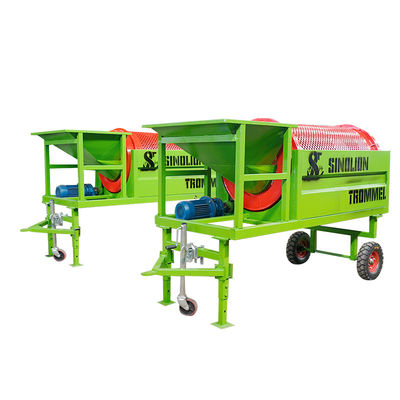

Customized Small Mobile Screening Compost Topsoil Trommel Screen with 770 KG Capacity
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Sinolion |
Certification: | CE ISO |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $4,100.00/sets 1-1 sets |
Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
Supply Ability: | 50 Set/Sets per Month mobile trommel screening plant |
Detail Information |
|||
Applicable Industries: | Building Material Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Kazakhstan, Tajikistan |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
Core Components: | Engine, Bearing, Gearbox | Condition: | New |
Type: | Circular | Application: | Ore, Compost,topsoil,cattle And Sheep Dung |
Voltage: | 380V/415V/440V | Dimension(L*W*H): | 3150*1100*1650mm |
Weight: | 770 KG | Warranty: | 1 Year |
Product Name: | Mobile Trommel Screen | Dimension: | According To Capacity |
Discharge Size: | As Request | Key Selling Points: | Automatic |
Installation: | Supply Manual To Guide User | Feature: | Simple Operation |
MOQ: | 1Set | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Support Customized Small Mobile Screening Compost Topsoil Trommel Screen
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Structure and Principle

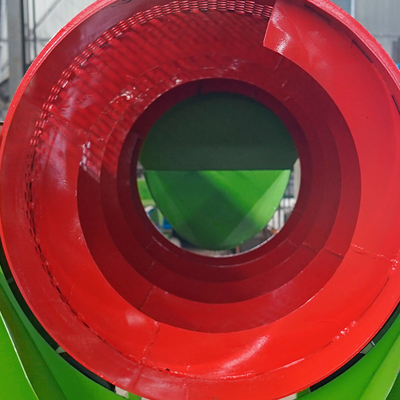

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power (KW) | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
