Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour

Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour

Product Details:

Place of Origin: Henan Zhengzhou
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $24,000.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining, Gold Washing Showroom Location: United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia
Condition: New Type: Gravity Separator
Production Capacity: 95% Voltage: 220/380V
Weight: 6800 KG Warranty: 1 Year
Marketing Type: Hot Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox Key Selling Points: PORTABLE

Product Description

Product Description
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 0
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 1
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 2
All the trommel screeners we have
model
GMTS0519
GMTS1020
GMTS1225
GMTS1548
GMTS1848
Capacity (TONS/HOUR)
0-10
10-30
30-80
80-150
150-250
Power (KW)
1.5
4
5.5
11
15
Drum Diameter (MM)
500
1000
1200
1500
1800
Drum Length (MM)
1900
2000
2500
4800
4800
Pole of mesh (MM)
5-8
5-8
5-8
5-8
5-8

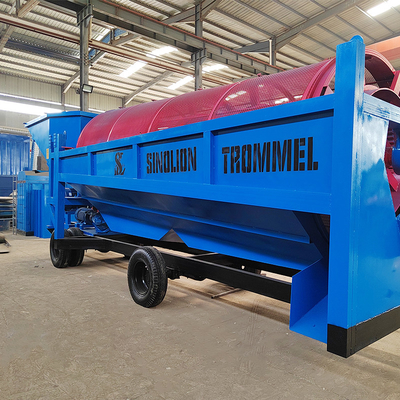

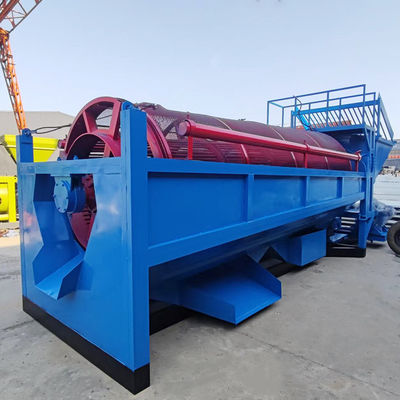

Gold washing mobile trommel screens

1、Our products can be used to screen riversand, alluvial gold, rock ore and so on for gold collecting.
2、Our products remove impurities by gravity and washing push, the screened materials is out into the sluice box, and the other larger material is out by the tail.
3、 Our products are equipped with motor, generator, diesel generator and gasoline generator for customers to use without electricity.
4、 Our products can be equipped with water pump, centrifuge, sluice box, shaking table, gold amalgamator, and so on.
5、 Our factory provide one-stop service for the whole gold washing equipment.
6、Our factory hold our own instellectual property rights and invention patents.
7、Our factory provide 24*7 service and after salses services.
Product Details
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 3

Main components of  GMTS 1548

* grille
* ladder
* operating platform
* feed hopper
* generator
* reductor
* chain

* distribution Box
* drum trommel
* sluice box
* double screening mesh
* water hose
* little spray pipe





Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 4

Main components of GMTS 0519

* grille
* towing hook
* engine
* reductor
* chain
* sluice box
* drum screen
* water pipe

Related Products
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 5
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 6

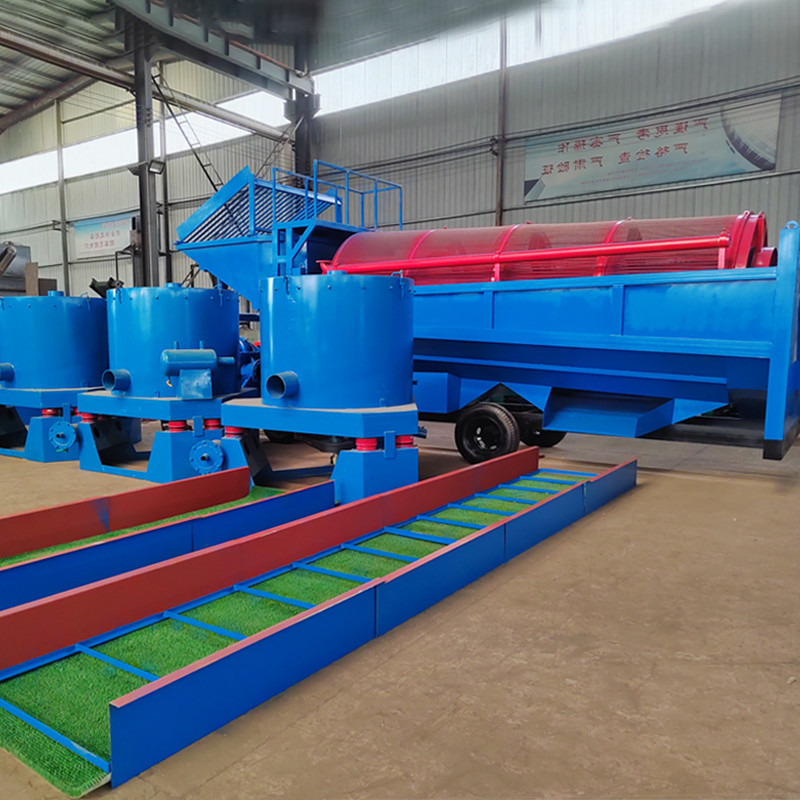

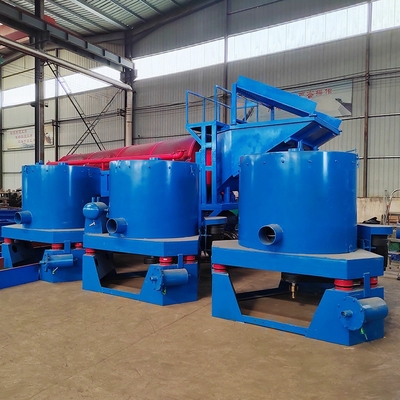

Our complete sets for gold washing


***We provide the whole complete sets for gold mining screeening. As seen from the picture, the complete sets are including trommel screen, centrifugal concentrator, vibrating sluice, skaing table ( furnace, gold amalgamator, amalgam retort for further request)

***Each products in the producing line and the number of the products can be selected according to your output, raw materials and budget.

***The products in the producing line are driven by motor, diesel generator or gasoline generator at the same time.

***The clean water centrifugal pump can be used for sluice box , trommel screen and centrifugal concentrator. The slurry pump can be used for shaking table. The submersible sewage pump can be used for trommel screener, and centrifugal concentrator. They are optional for choose according to actual site.

***Different machine in the producing line can be connected with sluice box, or conveyor belt according to actual site.

***We can guide you how to select the machine economically and practically.

Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 7


What can you see in the picture ?

work platform : The operator stands on it to check the working situation of the machine.
feed hopper : The raw material are put into feed hopper.
trommel screen : Our trommel screen can meet the requirements of capacity of 10-250 tons per hour.
diesel generators : It can be used for the whole sets to drive.
sluice : It is covered by sluice grass, selected by handmade and washed during and after usage.
vibrating sluice : It screens materials more effectively
slurry pump : It is used together with the shaking table or other machine.
shaking table : It sieves materials through vibration and corresponding angle.

Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 8
centrifugal concentrator model
Outlet diameter
STLB30
48 mm
STLB60
76 mm
STLB80
89 mm
STLB100
108 mm
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 9
sluice box width
sluice box length
0.35 m
1.5 m
0.5 m
5 m
1 m
6 m
as your request
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 10
shaking bed surface
material
4520×1850
fiber glass
3000×1620
fiber glass
2100×1050
fiber glass
1100*500
fiber glass
1100*500
aluminium alloy
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 11
model
power
diesel generator
15 KW
diesel generator
30 KW
diesel generator
50 KW
diesel generator
75 KW
diesel generator
100 KW
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 12
name
model
submersible pump
50WQ
80WQ
clean water pump
IS100-80-125A
IS100-65-200
slurry pump
3/2-AH
8/6E-AH
as your actually situation
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 13
model available
Furnace GP
15-25
Furnace ZP
15-160
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 14
model available
Gold amalgamator
VAM-50l/100L
Amalgam retort
D100/D200
Packing & Delivery
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 15
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 16
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 17
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 18
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 19
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 20
Case
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 21
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 22
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 23
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 24
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 25
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 26
Company Profile
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 27
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 28
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 29
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour 30
FAQ
***Do you support warranty ?

Our factory support the main components of 1 year warranty.

***Do you provide consumable parts ?

Our factory can provide some consumable parts , such as pull tray,spark plugs,V-belt and so on as your request.

***What kind of trommel screeners you have ?

We have GMTS 0519 with capacity 0-10 tons/hour , GMTS 1020 with capacity 10-30 tons/hour , GMTS 1225 with capacity 30-80 tons/ hour , GMTS 1548 with capacity 80-150 tons/hour, GMTS 1848 with capacity 150-250 tons/hour.

***Can you provide the complete sets of alluvial goldsand washing ?

It is our professional products in gold washing separator including shaking tables, furnace, centrifuge, sluice box, water pump,amalgamator and so on. We provide one-stop service.
