High Gold Recovery 10 Ton Portable Gold Trommel Screen Washing Plant with 4kw Power
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $4,080.00/sets 1-1 sets |
Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
Supply Ability: | 50 Set/Sets per Quarter |
Detail Information |
|||
Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Other, Other | Showroom Location: | Canada, United Kingdom, United States, Italy, UAE, Colombia, South Africa, Australia |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
Core Components: | Engine, Motor, PLC, Gearbox, Motor | Condition: | New |
Type: | Gravity Separator, Gold Trommel Screener | Application: | Gold Mining, Gold Mining |
Voltage: | 380V/415V/440V( As Client Request), 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
Weight: | 920 KG | Warranty: | 1 Year |
Product Name: | Mobile Gold Trommel Screen | Keyword: | Mobile Trommel Screen |
Power: | 4kw | Screen Aperture: | 5mm |
Capacity: | 5-10 Tons Per Hour | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Product Description
This 10 tons per hour capacity gold washing plant equipped with a reversible wet material hopper and screen. This machine is perfect for small scale miners or as a testing plant.
Little water consumption but high efficient enrichment capability, equipped with a wide sluice box which need clean up just when batch test or after one day work. At the same time can provide you around 98% recovery rate. Recovery fineness can reach 300 mesh. With continuous processing, advanced reverse helix system, help you increase the gold recovery rate, lower ability to the operation of the operator.
The mobile gold washing plant is a kind of gold equipment which can be moved on land. It has the characteristics of compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable operation, easy maintenance and convenient operation.We has been exported to Sudan, Africa, North Korea, Tanzania, Ghana etc.
Trommel screen provides a simple, efficient and economical solution to upgrade a wide rang of material, and optimize the
subsequent process steps of recovery. This method of screening helps not only to reduce manual operation and investment, also increase product grade, while allows rapid and large volume processing. Trommel screen is designed for processing alluvial gold mine, river placer sand gold, diamond etc.
subsequent process steps of recovery. This method of screening helps not only to reduce manual operation and investment, also increase product grade, while allows rapid and large volume processing. Trommel screen is designed for processing alluvial gold mine, river placer sand gold, diamond etc.

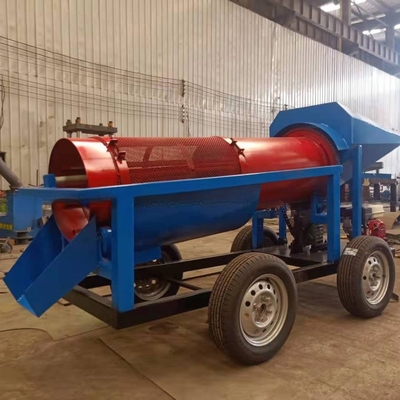

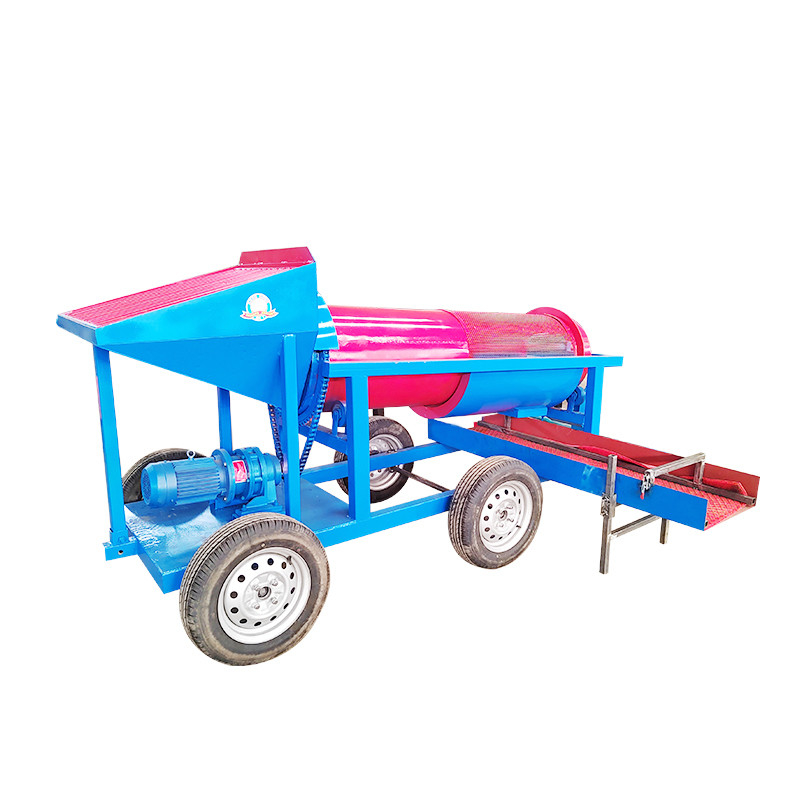

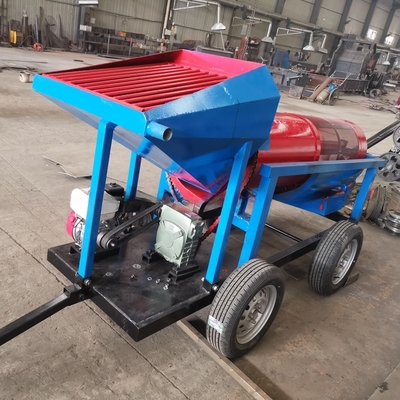

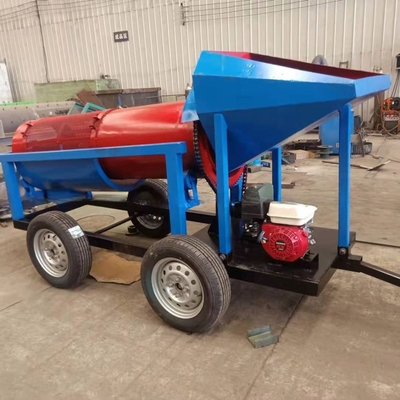

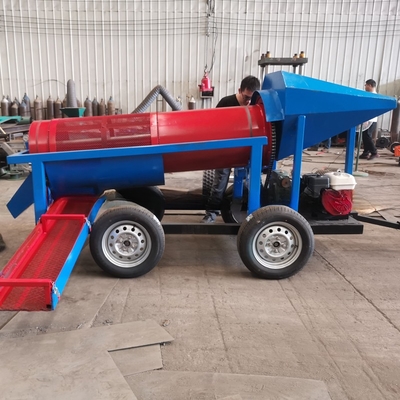

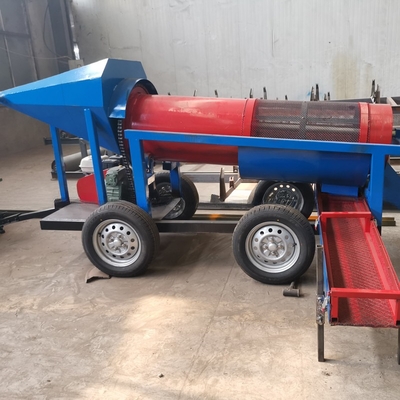

Mobile 10 tons per hour gold washing plant is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.
The first section of mini gold trommel is l 910mm steel drum, the second section is 840mm with manganese wire mesh, aperture 5mm,while the third section steel reel 160mm,Round steel diameter 10mm, small opening 50mm, tire diameter , four tires, one axle.
It is equipped with HONDA diesel engine, with reducer, chain, leg, roller. The width of the discharge tank is 400mm and the length 1500mm contains gold panning grass.

Sinolion offers turnkey solutions for 5-300 tph Gold Mining Equipment. We are one of the leading project suppliers. Gold Washing Plant and we work closely with our customers to fulfill their specific needs for a customized packaged solution. Specialized in the fabrication of these machines for 30 years and this enables us to be in a leading position in the field of Mining
Equipment-Gold Washing Plant.
Equipment-Gold Washing Plant.
Main technical parameter
Model | Capacity (t/h) | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
GMTS0519 | 5-10 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |
GMTS1020 | 10-30 | 10-30 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
GMTS1225 | 30-50 | 30-50 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
GMTS1548 | 80-150 | 80-150 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
GMTS1848 | 100-200 | 100-200 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
