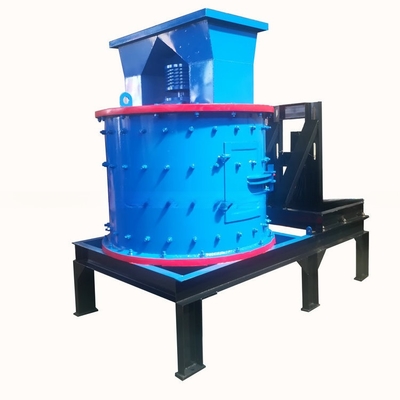

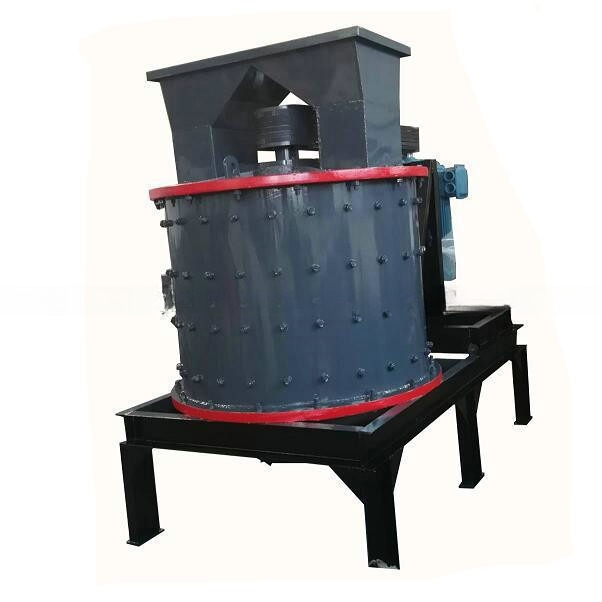

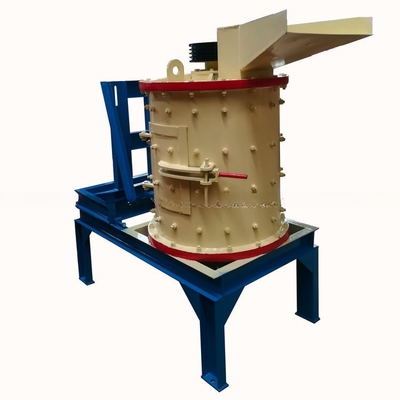

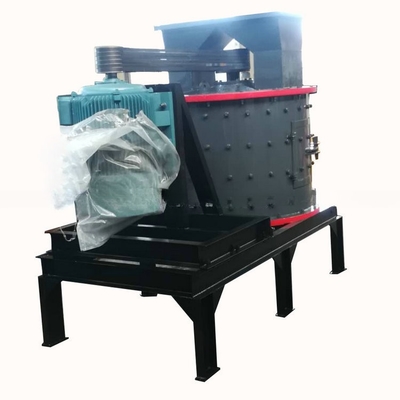

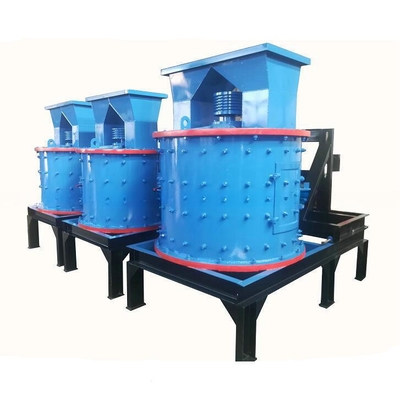

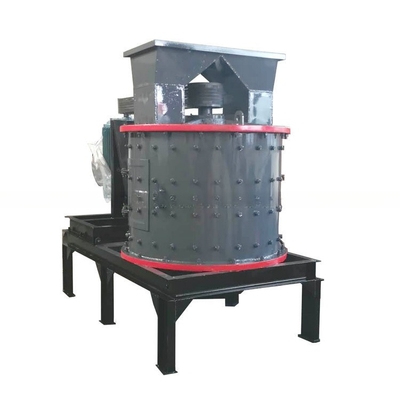

PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining

PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining

Product Details:

Place of Origin: China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $1,200.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Vertical Combination Crusher
Application: Chemical Industry, Stone, Ore, Coal, Grit, Gypsum, Blast Furnace Slag, Coal Gangue, Phosphorus Ore, Coal Motor Type: AC Motor
Capacity(t/h): 5-100t/h Dimension(L*W*H): As Per Different Model
Weight: KG Warranty: 1 Year
Marketing Type: New Product 2020 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor Key Selling Points: Vertical Combination Crusher
After-sales Service Provided: Engineers Available To Service Machinery Overseas Model: PFL Series Vertical Combination Crusher
Installation: Supply Manual And Send Engineer To Guide User Feeding Size: 0-100mm
Discharge Size: 0-5mm Driving Type: Electric Motor
Wearing Parts: Liner Plate Height Of Cylinder: 800-1410mm

Product Description

Product Description



Introduction of Vertical Combination Crusher:



Vertical Combination Crusher is a newly-developed type of grinding machine which integrates crushing technology of the same kind both at home and abroad, makes optimum design of the technical parameters. It is mainly adapted to medium-sized cement raw materials and clinkers, which provides an ideal triturate devices for technical improvement of cement factory or building a new cement production line, it also can be used for crushing iron mineral, sand rock, gypsum, blast furnace slag, coal gangue, lump coal and other kinds of medium-hard minerals. It has these following features: big crushing ratio, low energy consumption, stable operation, simple structure, easy to operate and maintain, etc.





It is can be used for grinding middle hard ores such as iron ore, aluminum ore, grit stone, gypsum, blast furnace slag, coal gangue, phosphorus ore, and lump coal. Also, it can be used in the field of building materials, mining industry, metallurgy, coal and chemical industry.





Vertical Combination Crusher technical parameters:





Model PFL-800 PFL-1000 PFL-1250 PFL-1500 PFL-1750
Diameter(mm) 650 800 1000 1250 1560
Height of cylinder(mm) 800 850 850 1000 1410
Rotation speed(r/min) 1350 970 740 650 600
Feed size(mm) 50 70 100 100 100
Discharge size(mm) 0-5 0-5 0-5 0-5 0-5
Capacity(t/h) 5-15 10-30 20-60 30-80 40-100
Motor Powder(kw) 30 55 75 110 132
Rotation speed(r/min) 1440 1440 750 750 750
Size(L×W×H)(mm) 2200×860×1980 2700×1160×2000 2800×1400×2730 3100×1900×2300 3350×2100×2800
Weight(T) 2.3 4.5 9.73 18.1 26.61





Vertical Combination Crusher structure:



PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining 0PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining 1

PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining 2



Packaging & Shipping

 PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining 3

Working site

 PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining 4

Our Services

 1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.



2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery;

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.



3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.



PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining 5



Company Information

Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of briquette equipment, building material equipment, and mining machinery.



After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, and SINOLION products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market.



SINOLION provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and SINOLION strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. SINOLION Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install coal production lines.



We will continue to adhere to "Quality is our eternal pursuit and pride", create new glories with customers! Welcome to SINOLION for visiting and seeking common development.



PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining 6PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining 7



FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.



Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.



Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan,  Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc



Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).

Want to Know more details about this product
I am interested in PFL Series Coal Vertical Shaft Combination Crusher Machine Design for Energy Mining could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
