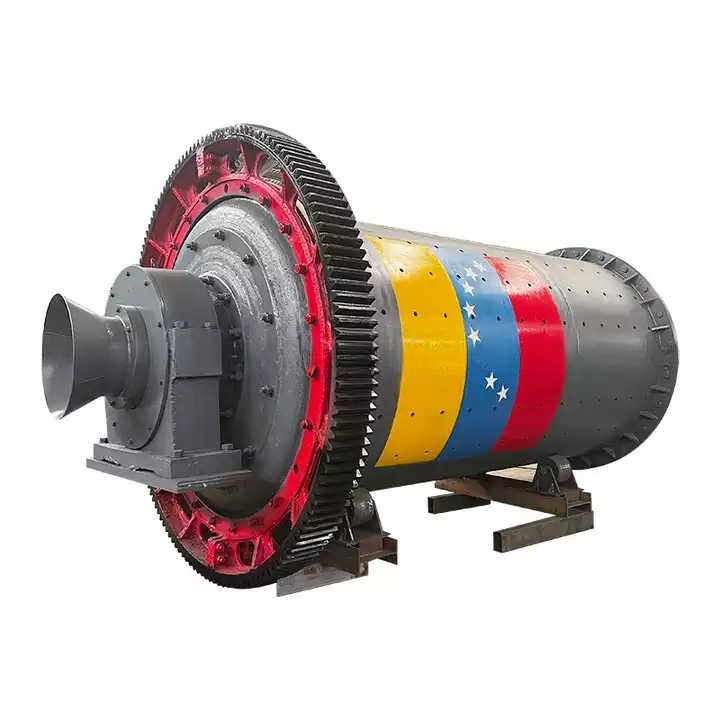

Wet/Dry/Batch Type Grinding Machine at Affordable 900x3000 Ball Mill for Tanzania
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Ball Mill | Motor Type: | AC Motor |
| Capacity(t/h): | 0.5-83t/h | Dimension(L*W*H): | Based On Different Model |
| Weight: | 3.6 KG | Warranty: | 2 Years For The Quality Of Equipment |
| Application: | Gold Ore Iron Copper, Quartz Limestone,clinker,cement,chromite,Al2o3 | Liner: | High Manganese, Rubber, Ceramic(as Client Request) |
| Spare Parts: | Liner, Grinding Balls, Grinding Media | Grinding Material: | Calcium Carbonate |
| Operation: | Automatic Or Manual | After Sale Service: | The Whole Using Life |
| Grinding Way: | Wet Type Or Dry Type Or Batch Type | Bussiness Type: | Bearing Ball Mill Manufacturer |
| Including: | Gearbox, Gear, Pinion, Liner, Manual, Bearing, Specifications | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description
Gold ore ball mill /ball mill rock crusher for sale Tanzania
Wet dry ball mill importer application range :
The ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.
Grinding is the last stage in the process of communication; in this stage the particles are reduced by a communication of impact and abrasion, either dry or in suspension in waterBall mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. It is performed in rotating cylindrical steel vessels known as tumbling mills.
Wet dry gold ball mill for sale technicial parameters:
| Model | Rotation speed (r/min) | Weight of grinding media (ton) | Size of feed opening (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (T) |
| Φ 900x1800 | 38 | 1.5 | ≤ 20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Φ 900x3000 | 38 | 2.51 | ≤ 20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| Φ 1200x2400 | 32 | 3.8 | ≤ 25 | 0.075-0.6 | 1.5-4.8 | 30-45 | 12.5 |
| Φ 1200x3000 | 32 | 5 | ≤ 25 | 0.074-0.4 | 1.6-5 | 30-45 | 12.8 |
| Φ 1200x4500 | 32 | 7 | ≤ 25 | 0.074-0.4 | 1.6-5.5 | 55 | 13.8 |
| Φ 1500x3000 | 27 | 8 | ≤ 25 | 0.074-0.4 | 2-5.8 | 75-90 | 17 |
| Φ 1500x4500 | 27 | 14 | ≤ 25 | 0.074-0.4 | 3-6.5 | 110 | 21 |
| Φ 1500x5700 | 27 | 15 | ≤ 25 | 0.074-0.4 | 3.5-8 | 132 | 24.7 |
| Φ 1830x3000 | 24 | 11 | ≤ 25 | 0.074-0.4 | 4-10 | 180 | 28 |
| Φ 1830x6400 | 24 | 23 | ≤ 25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| Φ 1830x7000 | 24 | 25 | ≤ 25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Φ 2200x5500 | 21 | 30 | ≤ 25 | 0.074-0.4 | 10-22 | 370 | 48.5 |
| Φ 2200x6500 | 21 | 31 | ≤ 25 | 0.074-0.4 | 14-26 | 280 | 52.8 |
| Φ 2200x7500 | 21 | 33 | ≤ 25 | 0.074-0.4 | 15-29 | 475 | 56 |
Ball miller machine:
Ball mill machine working site of Zhengzhou Sinolion:
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
