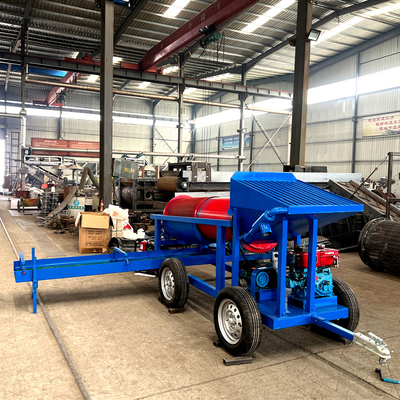

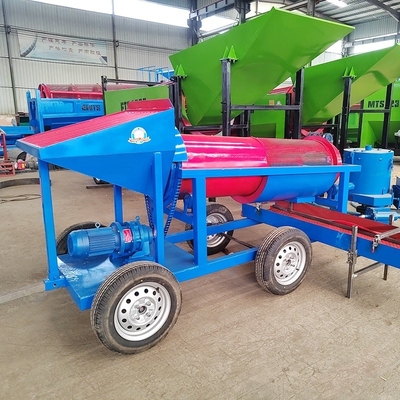

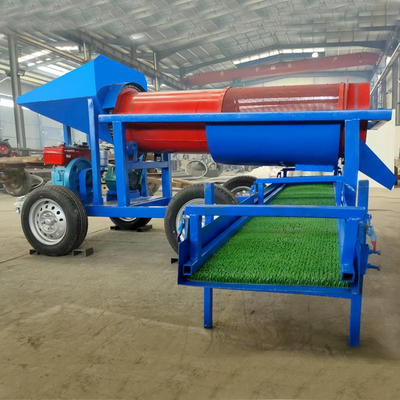

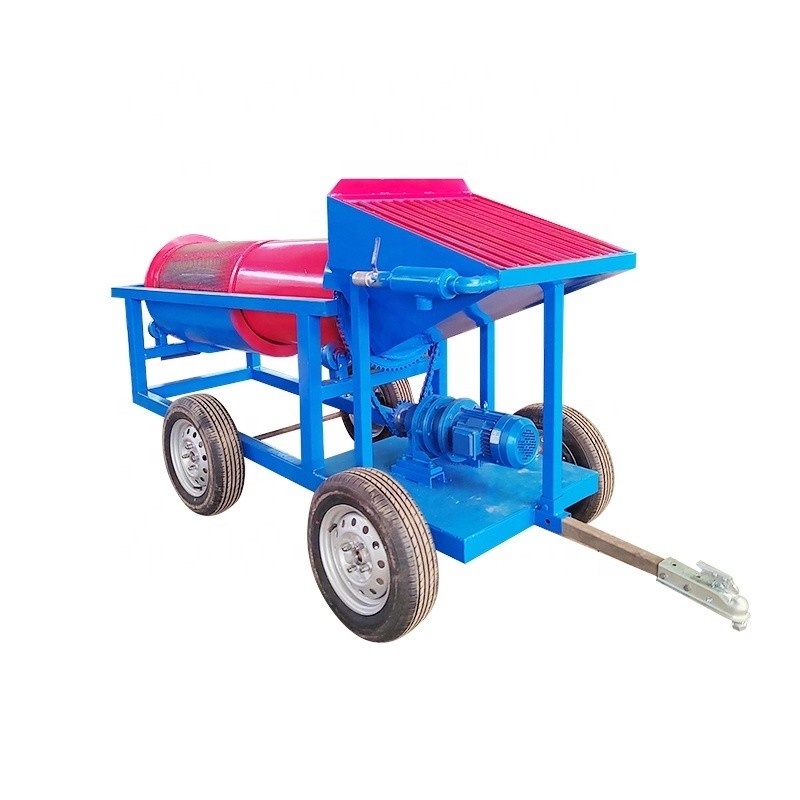

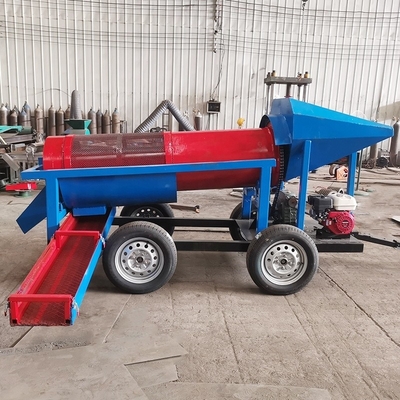

Portable Mobile Gold Washing Sieve Drum Trommel Screen for Alluvial Rock River Sand Ore
Product Details:
| Place of Origin: | Henan Zhengzhou |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining, Other, Gold Washing | Showroom Location: | United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 0-10 Tons/hour | Voltage: | 220/380 |
| Dimension(L*W*H): | 3*0.8*1.6 M | Weight: | 400 KG, 400 Kg |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump |
| Key Selling Points: | Easy To Operate | Color: | Blue, Red, Gray, Pink |
| Capacity: | 0-10 Tons/hour | Drum Diameter: | 500 Mm |
| Drum Length: | 1900 Mm | Feeding: | ≤300 Mm |
| Sluice Box: | 350*1500 Mm | ||
Product Description
Product Description
Performance characteristics
2、The first section of mini gold trommel is 910mm steel drum, the second section is 840mm with manganese wire mesh 5mm.
3、There isgrizzly on top of infeed hopper which can separate stones in river gold, round steel diameter 10mm, tire diameter 500mm, four tires, two axle.
4、It is equipped with HONDA gasoline engine which makes it can work at any place without electricity, the width of the discharge tank is 400mm and the length 1500mm contains gold panning grass.
Towing hook : It connects with the trailer for better movement. Grille : It prevent large pieces from entering the roller. Motor: It connects the reducer and chain to drive the drum to rotate.
Drum trommel : It screen raw materials by gravity and water pressure. The screen mesh : It is made of manganese woven. Tire : The number 4 or 2 can be selected.
model | GMTS0519 | ||||
Pole of mesh | 5-8 mm as request | Material of mesh | Manganese woven | ||
Gearbox | WPS-100-20 | Tyre model | 165/70RB | ||
Chain | 16A | Spray pipe diameter | 42 MM | ||
Optional parts as request
Application
The complete gold washing plants of One-stop service below:
SHAKING TABLE
FURNACE
VIBRATING SLUICE
WATER PUMP
SLUICE BOX
******Our factory has our own research and development centre.
******We will provide the most suitable production line for the actual scene from a professional perspective.
******You can buy the whole production line at one time in our factory.
******Our 24 * 7 after-sales service can provide you with installation and technical guidance.
