Mobile Alluvial Gold Dust Separator 30-150 Tons Per Hour Capacity and Diesel Generator
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $3,999.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 380V/415V/440V( As Client Request) |
| Dimension(L*W*H): | As Per Different Model | Weight: | 2200 KG, 6.5-10T |
| Warranty: | 24 Months Excluding Spare Parts | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Key Selling Points: | Gold Dust Separator | Product Name: | Gold Dust Separator |
| Power: | 5.5KW, 7.5KW, 11KW | Dimension: | Depends On Model |
| Application: | Alluvial Gold Washing, Diamond, Rock, Soil, River Gold | Capacity: | 30-150 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description

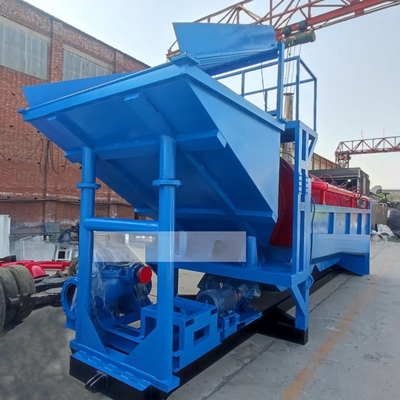

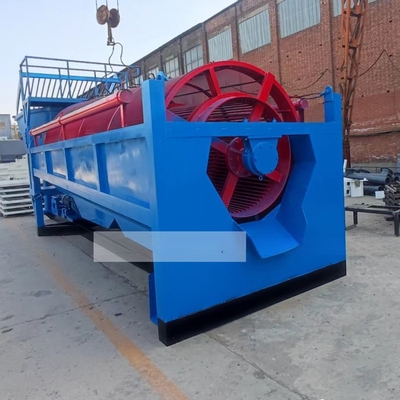

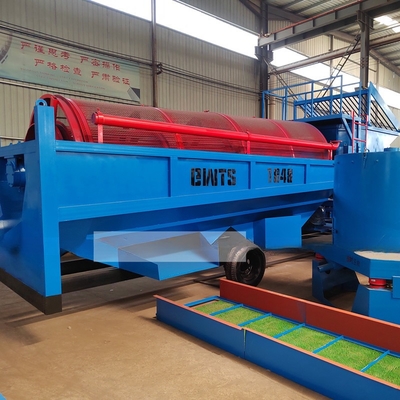

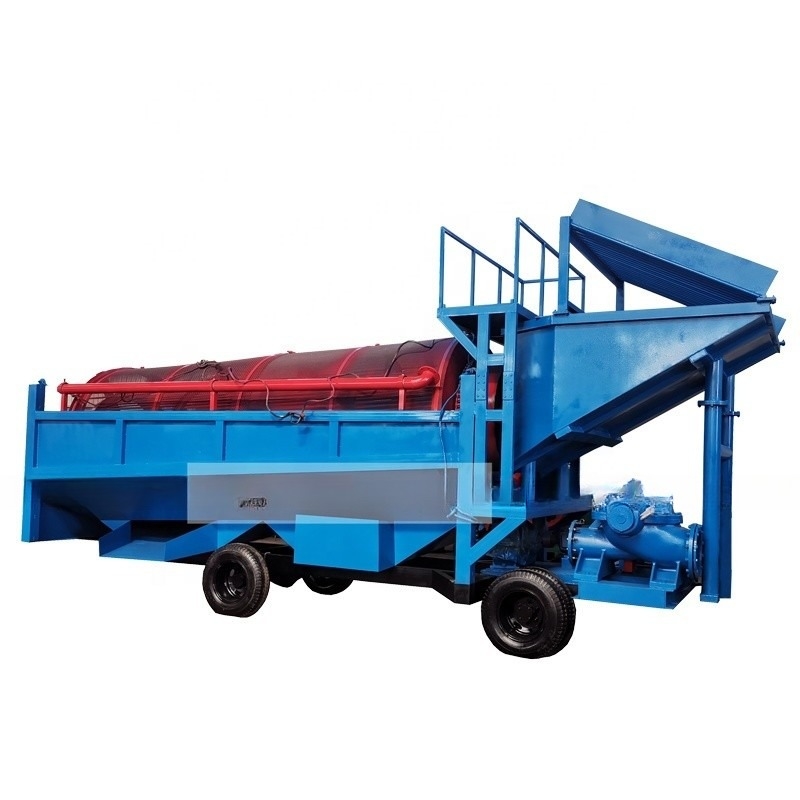

Professional Making Mobile Gold Trommel Screen Use Diesel Generator for Sale
YGTS series of Sinolion satisfy the various requirements of customers by
1. lowering initial investment cost (comparative price)
2. saving operational cost (outstanding durability and simple mechanical structure)
3. reducing any additional cost in the future (high productivity & mobility)
4. GTS series can precisely select gold dust in highest yield rate of 98%.
5. High gold dust gathering capability by long-time and non-stop operation
Gold washing trommel working principle::
1. Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.
2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.
3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.
