Trommel Screen for Alluvial Gold Washing Plant and Municipal Solid Waste Management
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Brazil, Mexico, South Africa, Nigeria, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Motor, Pump | Condition: | New |
| Type: | Circular | Application: | Gold, Tin , Fertilizer, Compost, Municipal Soild Waste, Gold , Tin , Tantulum, Compost, Construction & Demolition C&D, Glass, |
| Voltage: | 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 520 KG | Warranty: | 24 Months Excluding Spare Parts |
| Product Name: | Small Scale Portable Gold Mining Trommel Screen Washing | Model: | GTS500*1910 |
| Dimension: | Depends On Model | Power: | 3KW |
| Capacity: | 5-10 Tons Per Hour | Installation: | Supply Manual To Guide User |
| Tire Diameter: | 500mm-650mm | Color: | Yellow, White, Red, Blue, |
Product Description

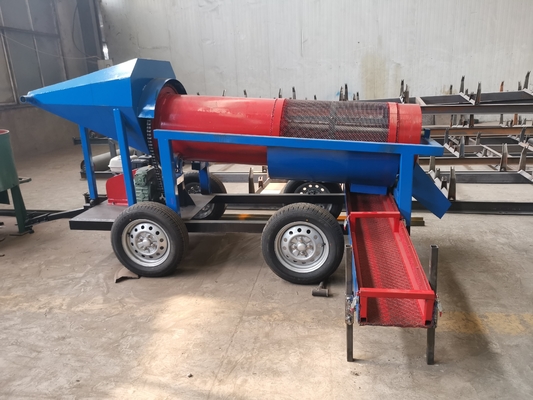

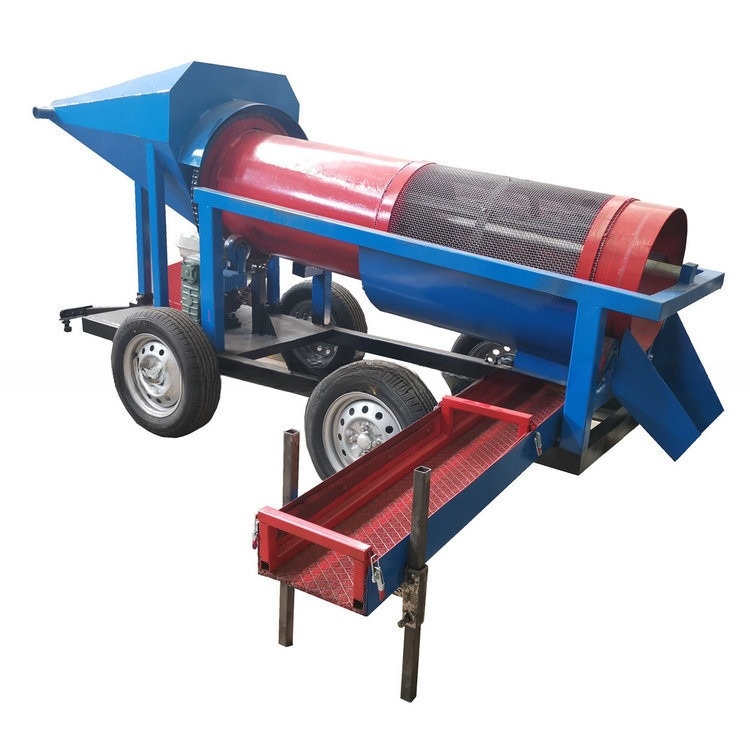

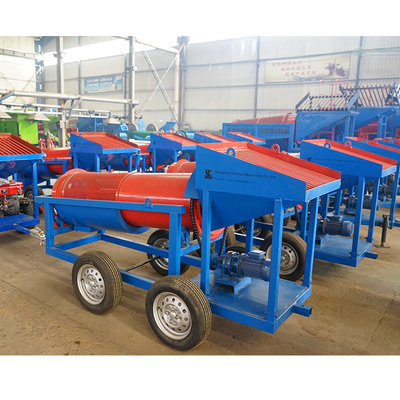

China trommel screen gold washing plant alluvial gold trommel screen
The trommel screen gold needed for alluvial gold is mainly composed of silo, feeding device, drum screen, jig. Mobile gold panning machine is mainly used in alluvial gold sand river, which is a gravity dressing equipment is mainly used in sand gold mine and vein ore single gold recovery work. This series of products have scrubbing cylinder operation, can make the material from the bin into the feeder, into the scrubbing cylinder operation, so that the clay separation, and then sieve sand washing.
1. Feeding system
The water pump is adopted for feeding hopper to ensure uniform feeding.
2. Screening system
The trommel screen gold using chain drive design, kinetic energy transfer uniform, high transmission efficiency, can effectively save electricity;
The inner screen is made by punching process, including a number of reamers from the head to cover the tail, can be fully stranded and eluted mud material, greatly improve the screening efficiency;
The mini gold drum screen water supply system adopts the central water supply + side water supply mode, the central water supply directionally flushes the material at the bottom of the drum screen, and the side water supply is responsible for washing the outer screen.
Characteristics:
1.Complete screen self cleaning function
2. The machine can effectively control the screening size function, can achieve high precision screening, to achieve the best screening effect.
3. The outlet of the machine can be adjusted arbitrarily. Sieve out of the material can be directly discharged, suitable for automated operations.
4. Simple structure, convenient installation, light weight; Reliable operation, long life; Low power consumption.
5. The screen mesh is not blocked, no flying powder, no leakage, fully sealed structure, environmental protection.
6. Fine powder, particle and liquid can pass through without blocking.
7. The cylinder is made of thick stainless steel, with long service life
| SPECIFICATIONS OF PORTABLE MOBILE GOLD WASH TROMMEL | |
| Model | GTS-500x1900 |
| Drum Diameter | 500mm |
| Drum Length | 1900 mm |
| Gearbox | WPS-100-20 |
| Towing Hook | Include |
| Tires Size | 165/70RB |
| Rubber Tires Quantity | 4 pieces |
| Spray Pipe Diameter | 42mm |
| Spray Pipe Material | Galvanized seamless pipe |
| Capacity | 5-10 tons/hour |
| HONDA Gasoline Engine | Main Power:5.5HP Start method: Manual pull Gasoline load: 0.58L |

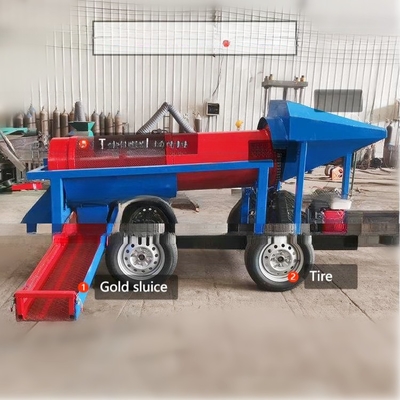

| Gold Chute | 350*1500mm Angle adjustable 2-8° |

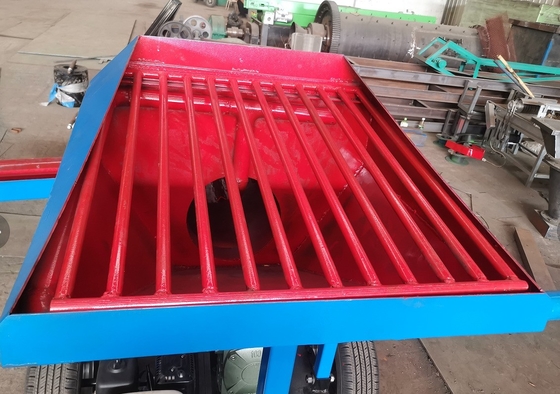

| Grizzly | Steel bard diameter 20mm Bar spacing 50mm Input hopper: 0.5m³ |
Q1: How long is the delivery time
A: Normally within 7-10days
Q2: What is the driving force
A: Japan HTC Gasoline Engine
Q3: How long is the warranty period
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
| | |
