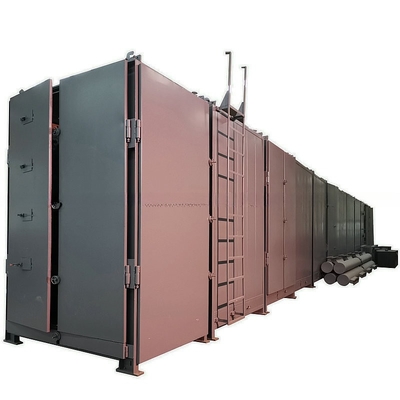

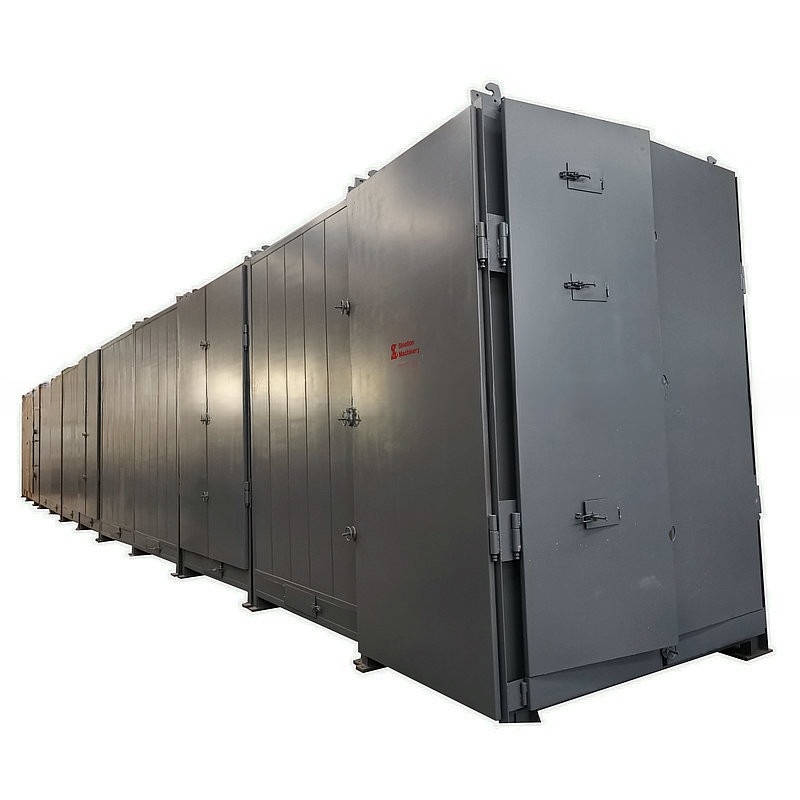

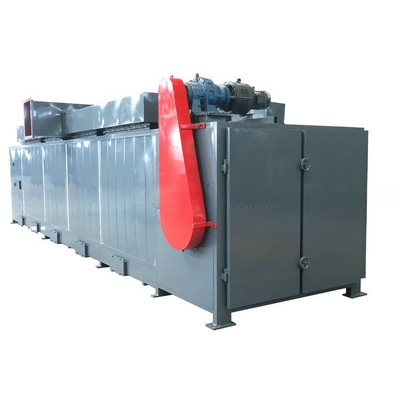

Raw Material Drying with Multi-Layer Belt Drying Machine Industrial Mesh Belt Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $120,000.00/sets >=1 sets |
|
Detail Information |
|||
| Type: | Drying Oven | Application: | Machinery Industry, Dry Coal Charcoal Coke Carbon Black Iron Fluorite |
|---|---|---|---|
| Condition: | New | Voltage: | 220V 380V 450V 600V |
| Power: | 5.5-37kw | Dimension(L*W*H): | Acoording To Coal Briquette Mesh Belt Dryer Model |
| Key Selling Points: | High Efficiency | Warranty: | 1 Year |
| Weight (KG): | 14000 | Applicable Industries: | Energy & Mining |
| Showroom Location: | None | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gear, Motor |
| Product Name: | Charcoal Briquette Mesh Belt Dryer | Heating Source: | Steam, Electricity, Far Infrared, Oil, Gas, Wood Pellet,coal Fuel |
| Material: | Stainless Steel, Carbon Steel, Wire Mesh, Steel Plate, Chain Plate | Length Of Dryer: | 8m-36m |
| Dryer Parts: | Head, Tail, Middle Section, Motor, Reducer, Temperature Controller | Dry Material Shape: | Coal Briquette, Charcoal Briquette |
| Function: | Dry And Reduce Raw Material Moisture | Color: | As You Required |
| Weight: | Depend On Coal Briquette Mesh Belt Dryer Model | ||
Product Description
Products Description
Large capacity 10-15TPH charcoal briquette chain plate dryer mesh belt dryer price
Chain Plate dryer, named plate dryer also, is redesigned based on traditional mesh belt dryer and conveyor dryer by SINOLION MACHINERY, professional briquette machine and briquettes dryer manufacturer. Chain plate dryer is are widely welcomed by briquettes plant after successful designing. We replace the traditional mesh belt by new designing steel plate which driven by the motor through the chain connected with plate. Most importantly, we make full use the space between the center of each layer, as following drawing:
Applicable: coal briquettes, charcoal briquettes, mineral briquettes and other industry briquettes need to dry
Working Principle
Final briquettes, from briquettes press machine with moisture content around 25%-40%, are feed into chain plate dryer evenly from the feeding top assembled at the top of dryer. The briquettes will follow the chain plate moving until to the end of first layer, following the turning around of chain plate, the briquettes will fall down to the center of first layer, moving with the chain plate until to the beginning of first layer and then fall down to the second layer top following the chain plate turning around. The briquettes will move by the same way until to the end of dryer and discharge from the discharge port! During the moving with chain plate, the hot air pumped from furnace will be pumped into the dryer through two side of dryer by strong centrifugal fan to the bottom of dryer, the hot air will pass the moving briquettes and taking the moisture out until the briquettes moisture upto the request date. Usually, last layer will be assembled the chain plate without hole to collect the dust generated during the process and conveyor out.
Product Details

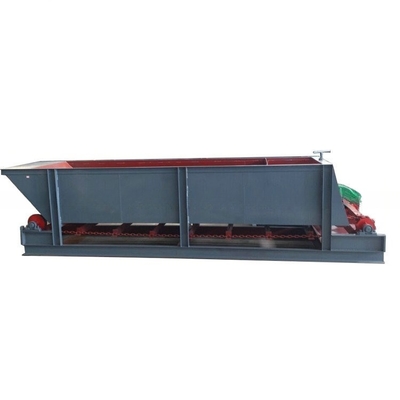

Conveyor chain plate making show
Final briquettes
How briquette move inside chain plate briquette dryer

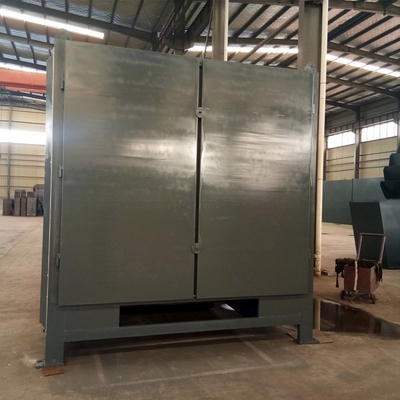

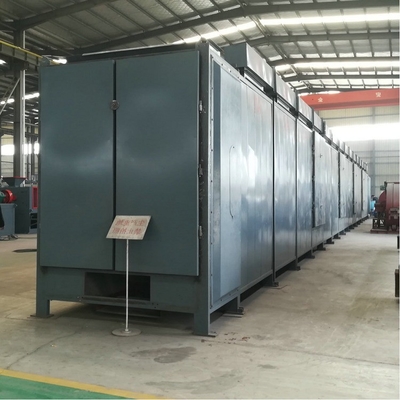

Test machine in workshop
Packing & Delivery
Case
More models
Customer Visit
FAQ
Q :What kind of material can be dried by chain plate dryer? A : Nearly all kinds of platy strip and granular material can be dried by chain plate dryer such as wood chips, coal briquettes, charcoal briquettes, iron pellets and other mineral briquettes / pellet, etc. Q :What kind of fuel can be used with the chain plate dryer? A :Diesel, natural gas, coal, wood chips and other kind of fuel are OK. Q :What's the drying temperature of the chain plate dryer? A :Drying temperature of the mesh belt dryer is adjustable. It varies from 70 to 350 °C. Q :How long will the briquettes stay in the chain plate dryer? A :Normally the drying time will be about 50-300 minutes. Q :Is the chain plate speed adjustable? A : Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.
