Product Details:

Place of Origin: China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $120,000.00/sets >=1 sets
Get Best Price Contact Now

Detail Information
Type: Drying Oven Application: Machinery Industry, Dry Coal Charcoal Coke Carbon Black Iron Fluorite
Condition: New Voltage: 220V 380V 450V 600V
Power: 5.5-37kw Dimension(L*W*H): Acoording To Coal Briquette Mesh Belt Dryer Model
Key Selling Points: High Efficiency Warranty: 1 Year
Weight (KG): 14000 Applicable Industries: Energy & Mining
Showroom Location: None Marketing Type: New Product 2023
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Gear, Motor
Product Name: Charcoal Briquette Mesh Belt Dryer Heating Source: Steam, Electricity, Far Infrared, Oil, Gas, Wood Pellet,coal Fuel
Material: Stainless Steel, Carbon Steel, Wire Mesh, Steel Plate, Chain Plate Length Of Dryer: 8m-36m
Dryer Parts: Head, Tail, Middle Section, Motor, Reducer, Temperature Controller Dry Material Shape: Coal Briquette, Charcoal Briquette
Function: Dry And Reduce Raw Material Moisture Color: As You Required
Weight: Depend On Coal Briquette Mesh Belt Dryer Model

Product Description

Products Description

Large capacity 10-15TPH charcoal briquette chain plate dryer mesh belt dryer price

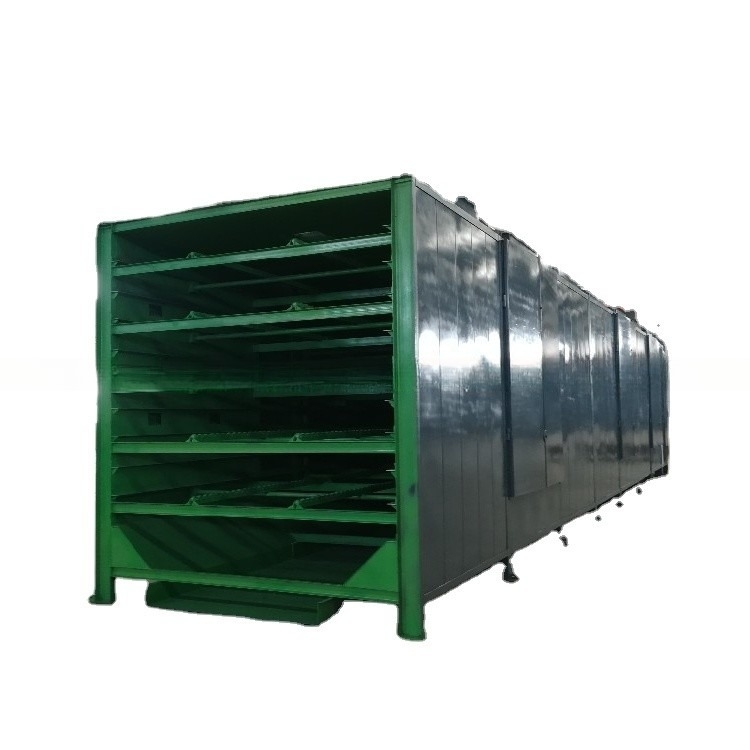

Chain Plate dryer, named plate dryer also, is redesigned based on traditional mesh belt dryer and conveyor dryer by SINOLION MACHINERY, professional briquette machine and briquettes dryer manufacturer. Chain plate dryer is are widely welcomed by briquettes plant after successful designing. We replace the traditional mesh belt by new designing steel plate which driven by the motor through the chain connected with plate. Most importantly, we make full use the space between the center of each layer, as following drawing:
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 0
Applicable: coal briquettes, charcoal briquettes, mineral briquettes and other industry briquettes need to dry

Working Principle

Final briquettes, from briquettes press machine with moisture content around 25%-40%, are feed into chain plate dryer evenly from the feeding top assembled at the top of dryer. The briquettes will follow the chain plate moving until to the end of first layer, following the turning around of chain plate, the briquettes will fall down to the center of first layer, moving with the chain plate until to the beginning of first layer and then fall down to the second layer top following the chain plate turning around. The briquettes will move by the same way until to the end of dryer and discharge from the discharge port! During the moving with chain plate, the hot air pumped from furnace will be pumped into the dryer through two side of dryer by strong centrifugal fan to the bottom of dryer, the hot air will pass the moving briquettes and taking the moisture out until the briquettes moisture upto the request date. Usually, last layer will be assembled the chain plate without hole to collect the dust generated during the process and conveyor out.
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 1
Product Details
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 2
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 3
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 4
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 5
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 6
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 7
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 8
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 9
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 10
Conveyor chain plate making show
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 11
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 12
Final briquettes
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 13
How briquette move inside chain plate briquette dryer
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 14
Test machine in workshop
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 15
Packing & Delivery
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 16
Case
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 17
More models
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 18
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 19
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 20
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 21
Customer Visit
Multi-Layer Mesh Belt Dryer for Drying Fruit Vegetable Seaweed Pepper Herb Chilli Coconut 22
FAQ
Q :What kind of material can be dried by chain plate dryer? A : Nearly all kinds of platy strip and granular material can be dried by chain plate dryer such as wood chips, coal briquettes, charcoal briquettes, iron pellets and other mineral briquettes / pellet, etc. Q :What kind of fuel can be used with the chain plate dryer? A :Diesel, natural gas, coal, wood chips and other kind of fuel are OK. Q :What's the drying temperature of the chain plate dryer? A :Drying temperature of the mesh belt dryer is adjustable. It varies from 70 to 350 °C. Q :How long will the briquettes stay in the chain plate dryer? A :Normally the drying time will be about 50-300 minutes. Q :Is the chain plate speed adjustable? A : Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.
