Ceranic material Briquette Machine will pass raw powder on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll, raw powder enter the ball roll mode, with the roll rotation, raw powder pressure on a small become larger, when raw powder to the two rollers rotating line contact point, the pressure of raw powder has reached the peak. Tremendous pressure in the role of line, the ceramic powder becomes briquette.
 |
High Pressure Ceramic Materials Powder Ball Press Machine with 9Cr2Mo Roller Material
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $60,000.00 - $120,000.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel box, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 45 Set/Sets per Month Briquette machine |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Manufacturing Plant, Energy & Mining |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Motor |
| Condition: | New | Production Capacity: | 1-10t/h |
| Motor Type: | AC Motor | Dimension(L*W*H): | Based On Different Model |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Briquette Shape: | Oval, Pillow And Oblate | Roller Diameter: | 150-240mm |
| Roller Material: | 9Cr2Mo/High Chromium Alloy | Applicable Material: | Silicon Powder, Manganese Powder, Lime Powder, Iron Ore, |
| Material Size: | Less Then 3mm | Material Moisture: | Less Then 10% |
| Spare Parts: | Supply Whole Life Ceramic Briquette Machine | Service Life: | Supply Whole Life |
| Pressure Mode: | Ceramic Briquette Machine | Local Service Location: | None |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Product Introduction
High pressure ceramic materials briquette machine/ ceramic ball press machine / briquetting machine
Ceramic material briquette machine also named ceramic material briquette press machine, ceramic powder ball press machine,ceranic powder briquetting machine etc. The ceramic material Briquette Machine mainly applies on the briquette making of ceranic material and ferrous metal mineral powder, it enters the furnace directly to increase the additional value. All metallurgy industry waste and accessory that need furnace use ball briquetting machine. Such as dedusting ash, pool mud, oxide, slag, iron flavor powder,aluminum ash powder, silicon manganese ore powder, etc. Pressed powder materials into a ball to reduce dust and facilitate transport. Such as iron powder, charcoal, clay, coke breeze, coal, lime powder, etc.
Product Parameters
Type | Diameter(mm) | Roller Width(mm) | Power(kw) | Capacity(kg/h) |
LYQ 0.5 | Φ299 | 180 | 18.5 | 500 |
LYQ 1.0 | Φ367 | 183 | 37 | 1000 |
LYQ 1.5 | Φ367 | 183 | 45 | 1500 |
LYQ 2.0 | Φ399.5 | 252 | 45 | 2000 |
LYQ 3.0 | Φ522 | 196 | 55 | 3000 |
LYQ 5.0 | Φ700-738 | 210/225 | 75 | 5000 |
LYQ 6.0 | Φ738 | 225 | 90 | 6000 |
LYQ 8.0 | Φ758 | 225 | 110 | 8000 |
LYQ 10 | Φ858 | 300 | 110 | 10000 |
Working Principle
Ceramic material Briquette Machine Working Principle

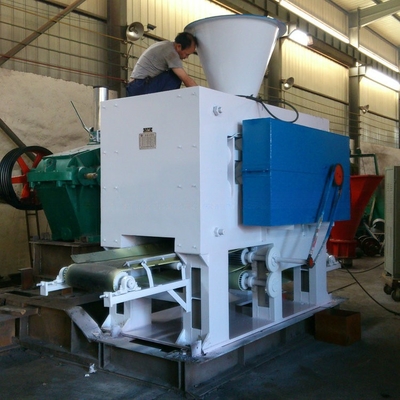

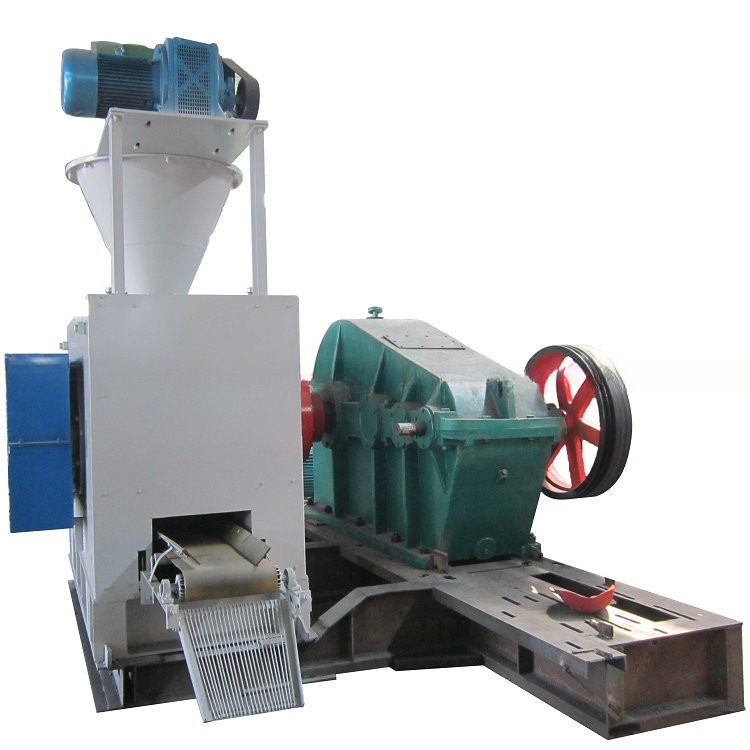

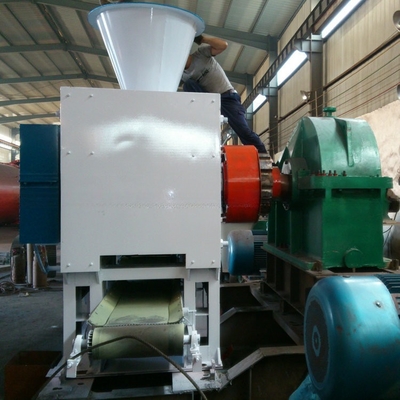

Product Details Show
Ceramic material briquette machine requirment of raw material
1. Material size about 80 to 200 mesh.
2. Materials are not allowed has hard metal objects to avoid damaging the pressure roller.
3. Return materials should not have too much clumps(≤3mm), return materials is not more than 50% in the feeding materials.
4. Supply of materials must be sufficient, use variable speed screw feeder is better.
Machine Usage
Ceramic material briquette machine main usage
Ceramic material briquetting, coal molding, dry powder molding, Desulfurization gypsum molding, coke powder
molding, aluminite powder briquetting, Scrap iron and various metal mineral powder molding ,lime powder briquetting etc.
Other material use ceramic material briquette machine
Coal powder, coking coal , aluminite powder, scrap iron, oxidation iron sheet, carbon powder,
mineral waste residue, gypsum, tailings, sludge, kaoline, activated carbon, coke breeze and all kinds of powder,
powder lot, waste material ,waste residue. Widely used in refractory material, power plants, metallurgy, chemical
industry, energy, transportation, heating, etc.
Hydraulic System

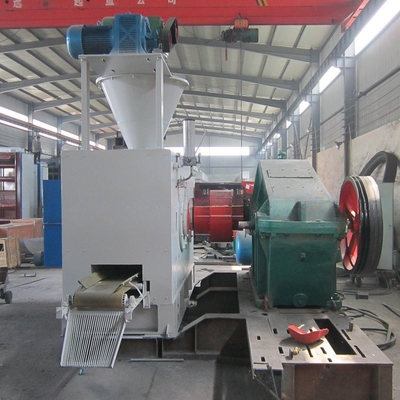

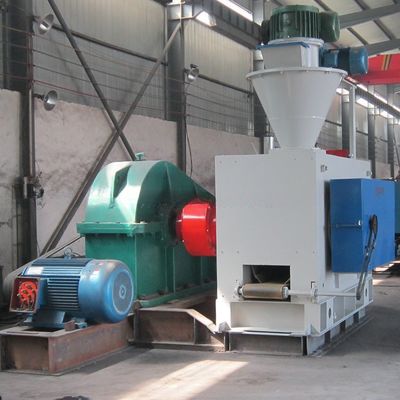

Working Site
Company Profile
Want to Know more details about this product
