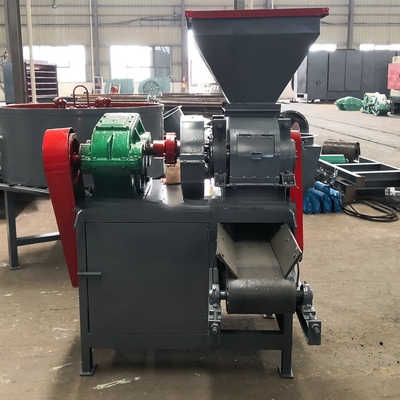

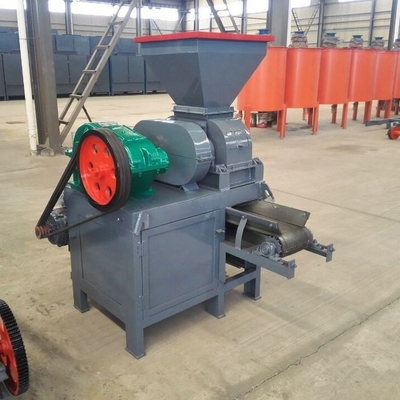

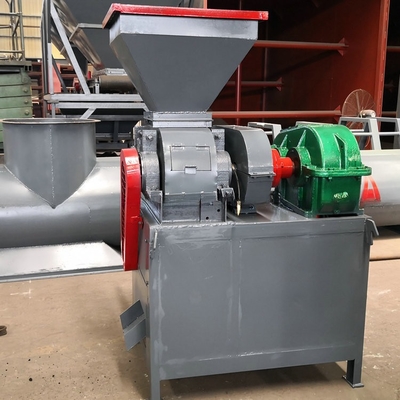

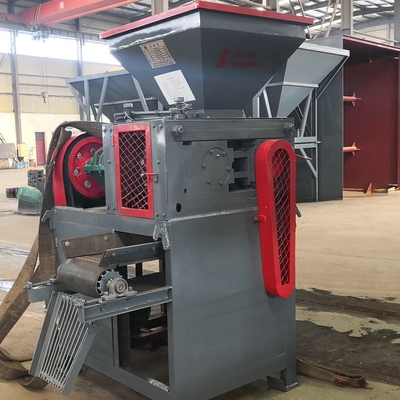

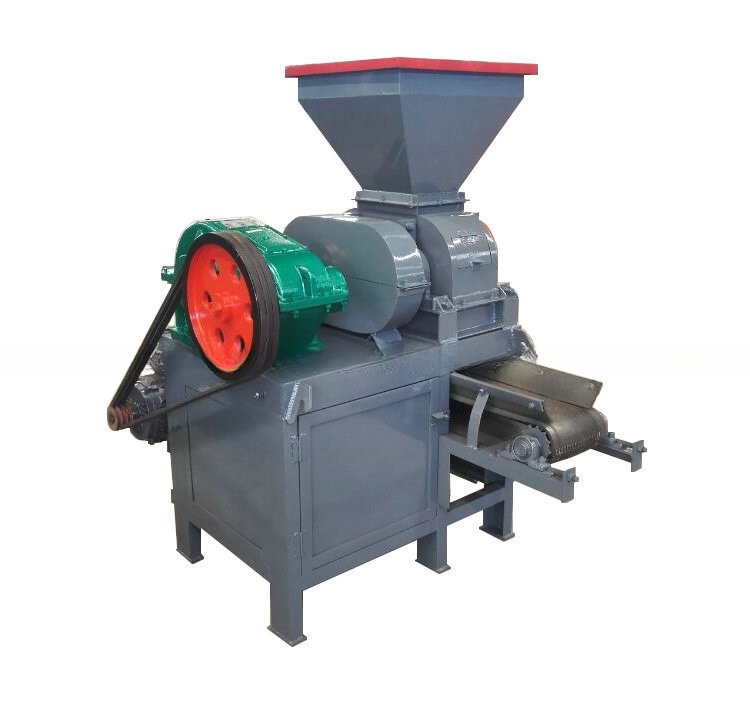

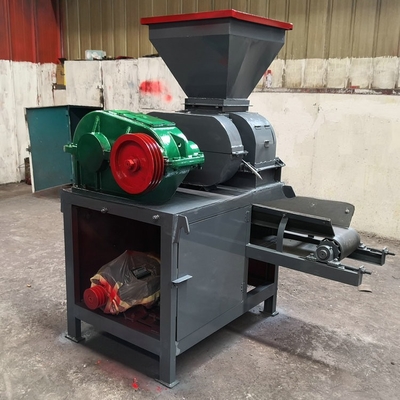

Less than 5mm Material Size Charcoal Briquette Machine for Your Production Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,500.00/sets 1-1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Manufacturing Plant, Home Use, Retail, Energy & Mining |
|---|---|---|---|
| Weight (KG): | 700 | Showroom Location: | Canada, United States, Pakistan, Mexico, Russia, Thailand |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor | Condition: | New |
| Production Capacity: | 1-30t/h Briquette Machine | Motor Type: | AC Motor |
| Dimension(L*W*H): | Based On Model | Warranty: | 1 Year |
| Ball Shape: | Oval, Pillow And Oblate | Roller Diameter: | 290-1000mm |
| Roller Material: | 65Mn/9Cr2Mo | Applicable Material: | Coal, Charcoal, Carbon Black, Coke, Iron, Fluorite Powder Etc |
| Material Size: | Less Than 5mm | Material Moisture: | Less Than 18% |
| Spare Parts: | Supply Whole Life Of Briquette Press Machine | Service Life: | Supply Whole Life |
| Keyword: | Charcoal Ball Machine | Color: | Client's Required |
Product Description
Brief introduction of charcoal ball widely used briquette machine line:
Charcoal ball machine also named coal ball press machine.Charcoal ball machine can be used for pressing various powders such as coal powder, charcoal powder, iron powder, coking coal, slag, oxidation iron sheet, carbon dust, gypsum, tailings, sludge, kaolin, active carbon and burnt powder, etc.
Charcoal ball machine also applies on many industries such as refractory material, electric power plant, metallurgy, chemical industry, energy, transportation and heating, etc.
Charcoal ball machine working principle:
This series of charcoal ball machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll. Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
Feature of Charcoal ball machine
Charcoal ball machine unique design is with lowest operating cost and very less maintenance for years makes it very successful & different from others.
Briquette machine working line:
Briquette machine briquettes making process can be devided into the following steps: Feeding-- crushing---- mixing------ ball pressing------ drying------final product.
| Model | Reducer | Roller size | Power (Kw) | Yield (t/h) | Roller Material | Pressure type |
| XM290 | ZQ350 | Φ290 | 5.5 | 0.9-1.0 | 65Mn | Constant pressure Hydraulic pressure |
| XM360 | ZQ350 | Φ360 | 7.5 | 1.5-2.0 | 65Mn/9Cr2Mo | |
| XM400 | ZQ400 | Φ400 | 7.5 | 2.5-3.5 | 65Mn/9Cr2Mo | |
| XM430 | ZQ400 | Φ430 | 11 | 3.5-4.5 | 65Mn/9Cr2Mo | |
| XM500 | ZQ650 | Φ500 | 37 | 7.5-8.5 | 65Mn/9Cr2Mo | |
| XM650 | ZQ850 | Φ650 | 45 | 9-10 | 65Mn/9Cr2Mo | |
| XM750 | ZQ1000 | Φ750 | 90 | 13-14 | 65Mn/9Cr2Mo | |
| XM850 | ZQ1250 | Φ850 | 110 | 15-17 | 65Mn/9Cr2Mo |
PACKAGE:
All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.
DELIVERY TIME:
15-25 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
