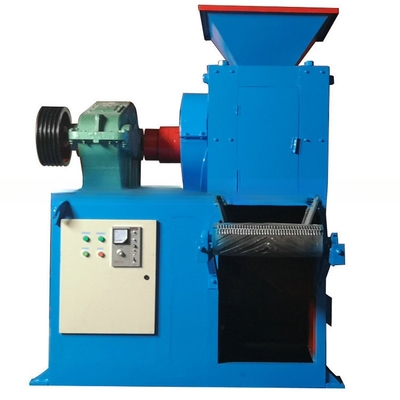

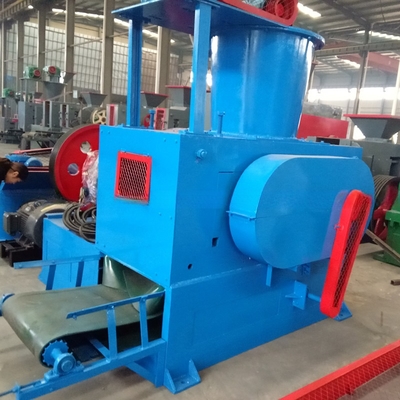

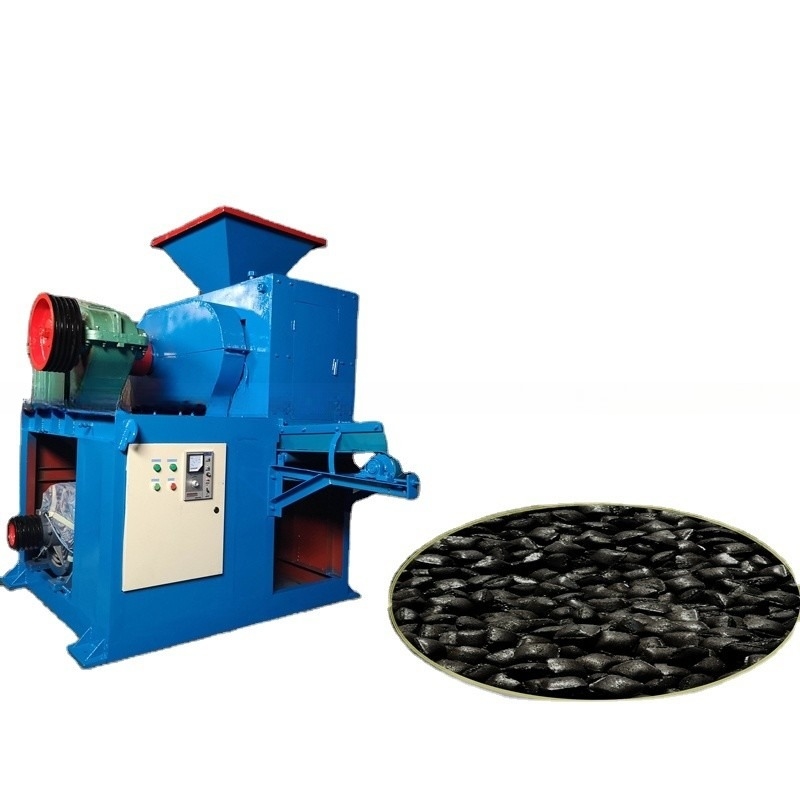

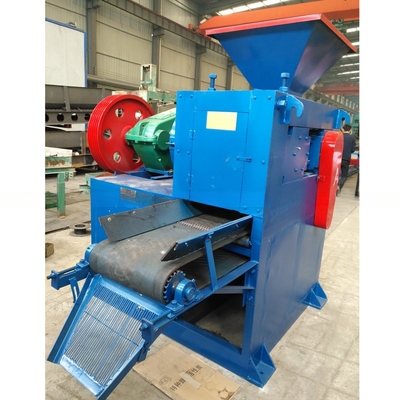

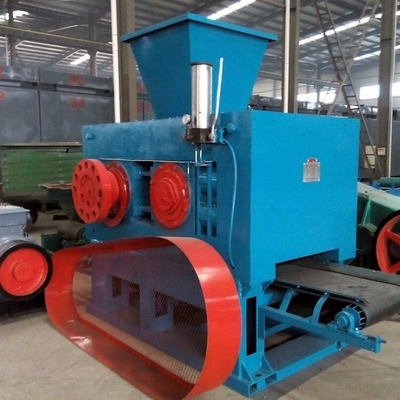

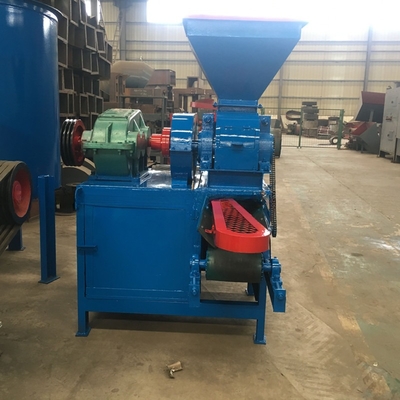

India Machinery Charcoal Cubic Briquette Press Making Machine with Customized Voltage
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,500.00/sets 1-1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Manufacturing Plant, Energy & Mining |
|---|---|---|---|
| Weight (KG): | 850 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Production Capacity: | 1-30t/h | Motor Type: | AC Motor |
| Dimension(L*W*H): | Depend On Models | Warranty: | 1 Year |
| Product Name: | New Design Charcoal Briquette Machine Coal Ball Press Machine | Keyword: | Briquette Machine |
| Applicable Material: | Charcoal Powder, Charcoal Fines, Charcoal Breeze, Coke, Etc | Material Moisture: | Less Than 50% |
| Material Size: | Charcoal Size Less Than 5mm | Briquette Shape: | Oval, Pillow And Oblate Charcoal Briquettes Etc |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Installation: | Under Engineers Guidance Use Briquette Machine |
| Voltage: | 220V/380V/415V/460V /Customized | Working Theory: | Pressure Roller |
Product Description
Briquette machine can be used to press coal powder, iron powder, coke, mineral powder, iron ore fines, metal dust, mill scale, iron oxide skin, carbon powder, slag, gypsum, tailing, sludge, kaolin clay, activated carbon, coke breeze and other powder and waste material .The briquette machine is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc. industries. The final products have features of environmental friendly, easy to transport, improving the waste recycling, and good economic and social benefits.
Feature:
Briquette machine unique design is with lowest operating cost and very less maintenance for years makes it very successful & different from others.
| Model | Reducer | Roller size | Power (Kw) | Yield (t/h) | Roller Material | Roller pressure (t/cm) |
| XM290 | ZQ300 | Φ290 | 5.5 | 0.8-2 | 65Mn | 1 |
| XM360 | ZQ350 | Φ360 | 7.5 | 2-3.5 | 65Mn/9Cr2Mo | 1 |
| XM400 | ZQ400 | Φ400 | 11 | 4-5 | 65Mn/9Cr2Mo | 1 |
| XM430 | ZQ400 | Φ430 | 11 | 5-7 | 65Mn/9Cr2Mo | 1-2 |
| XM500 | ZQ500 | Φ500 | 18.5-30 | 6-8 | 65Mn/9Cr2Mo | 1-2.5 |
| XM650 | ZQ650 | Φ650 | 22 | 8-12 | 65Mn/9Cr2Mo | 1-2.5 |
| XM750 | ZQ750 | Φ750 | 30-75 | 12-18 | 65Mn/9Cr2Mo | 1-2.5 |
| XM850 | ZQ850 | Φ850 | 55-90 | 18-25 | 65Mn/9Cr2Mo | 1-2.5 |
| XM1000 | ZQ1000 | Φ1000 | 75-130 | 25-30 | 65Mn/9Cr2Mo | 2-2.5 |
Packing Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.
Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Q:How do I choose a suitable briquette machine for my project?
A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the shape of final briquettes you required, also tell the output per hour you required
Q: What is the binder in process?
A: It is depend on the properties of your raw materials and also usage of briquettes. We have some formula of binders for some of raw materials, we would like to share them to our customers.
Q: How long of your machine quality guarantee terms ?
A: Quality guarantee time is one year(wearing parts excluded).
Q: After ordered a briquette machine, how do we slove the equipment installing?
A: For a small single machine, we offer you user manual, the user will install and commissioning following operating introduction. A complete production line, we will send our engineer to workplace to help with install and commissioning untill machines work normally.
| | |
