Professional Charcoal Ball Press Machine for Coal Dust Briquette Production Line

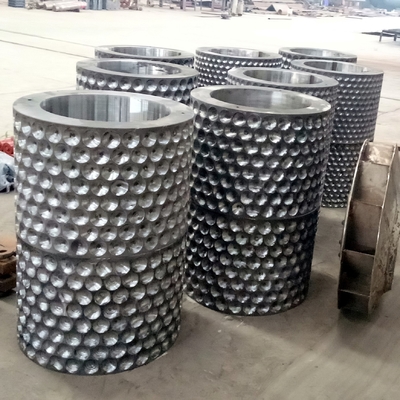

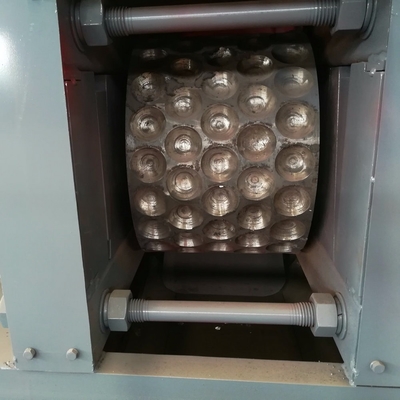

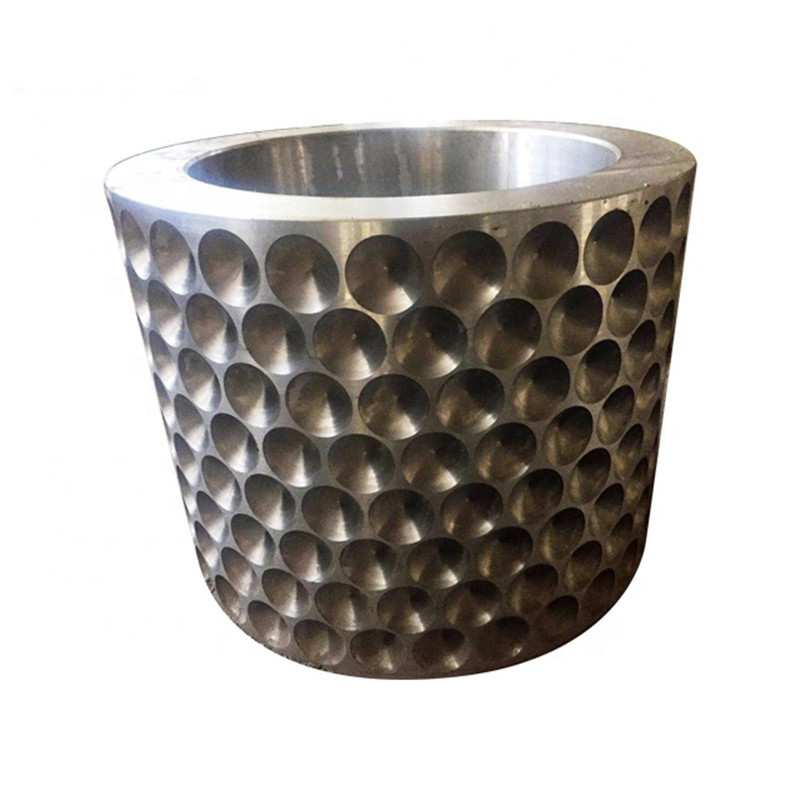

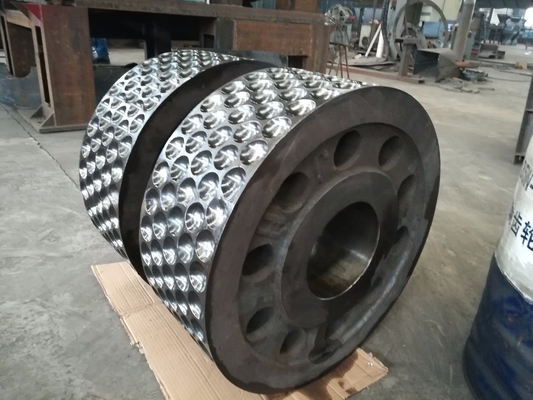

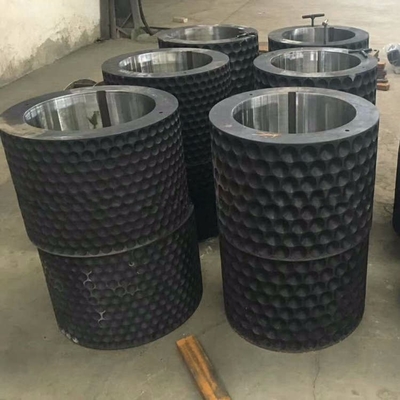

The ball press is an important molding equipment for many materials. As one of the core components of the ball press, the quality of the roller skin of the ball press seriously affects the production efficiency and quality of the ball press. It also affects the pressure of the ball press. Service life, frequent replacement of roller skins will certainly cause disassembly and wear of the ball press. Since the roller skin is so important, it is necessary to ensure its overall quality during processing and production. The staff of the roller skin manufacturer has organized the production process of the roller skin of the ball press for your reference. There are two methods for manufacturing the roller skin of the ball press machine, one is through casting and the other is forging.

1. Roller skin of casting and pressing ball machine

2. Roller skin of forging and pressing ball machine

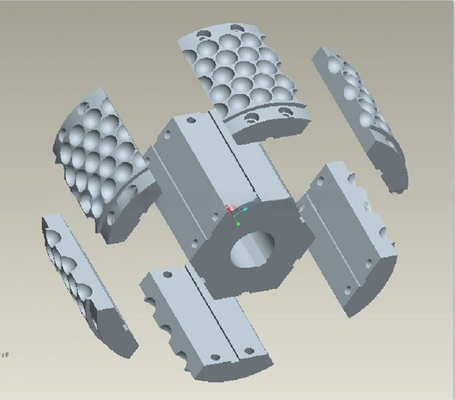

There are two main types of forged roller skins, one is 9 chromium 2 molybdenum alloy steel and the other is bearing steel. The main difference between the production of this type of roller skins and the casting roller skins is that the casting roller skins are directly cast by casting molds, which cannot be welded due to the material characteristics, while the forged roller skins can be processed by welding. The part of the roller skin is welded as a whole, and then heat treatment process.



The forged processing roller skin is stronger than the casting roller skin, and the wear resistance is also higher than the casting roller skin. It has a wider application range, lower machining requirements, multiple feeds, and the ball socket can be engraved and worn according to actual needs. The post-repairability is better; the bearing steel in the forged roller skin is a material with better use characteristics than 9Cr2Mo, hardness and wear resistance on the market today, and it is very suitable for the compression molding of many hard materials.





It can be seen from the above that in the production of the roller skin of the ball press, turning and heat treatment are two processes that have a great influence on the quality of the roller skin. For the casting roller skin, it is very difficult to turn the roller skin with a large diameter. At the same time, it also needs to achieve one-shot shaping, which is a test of the technical level of the lathe, and it must ensure the use of media and temperature control during heat treatment. Therefore, the roller skins of this type of ball pressing machine on the market are used on smaller ball pressing machines, and The hardness is not high enough, and the suppression of mineral powder materials cannot be used.



Standard export packing,Spare parts in wooden case,big machine loaded incontainer,large machines use nude packing,cover with plastic cloth.We export through Qingdao Port,also can be nominated by customer.We have superior cargo agent to arrange the sea shipment for each client,competitive price,secure transportation.
