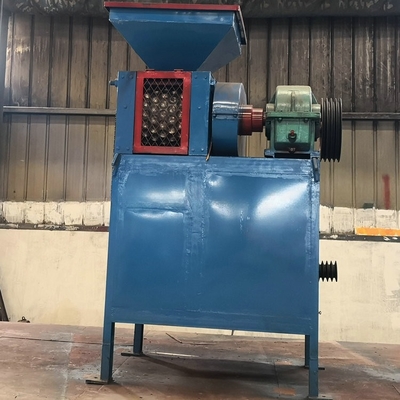

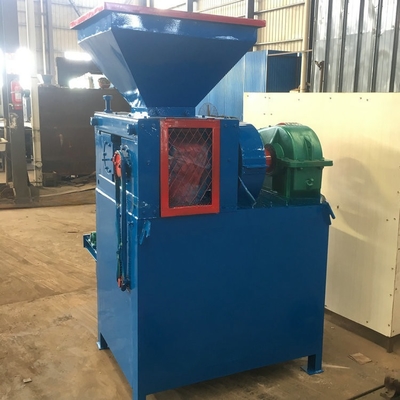

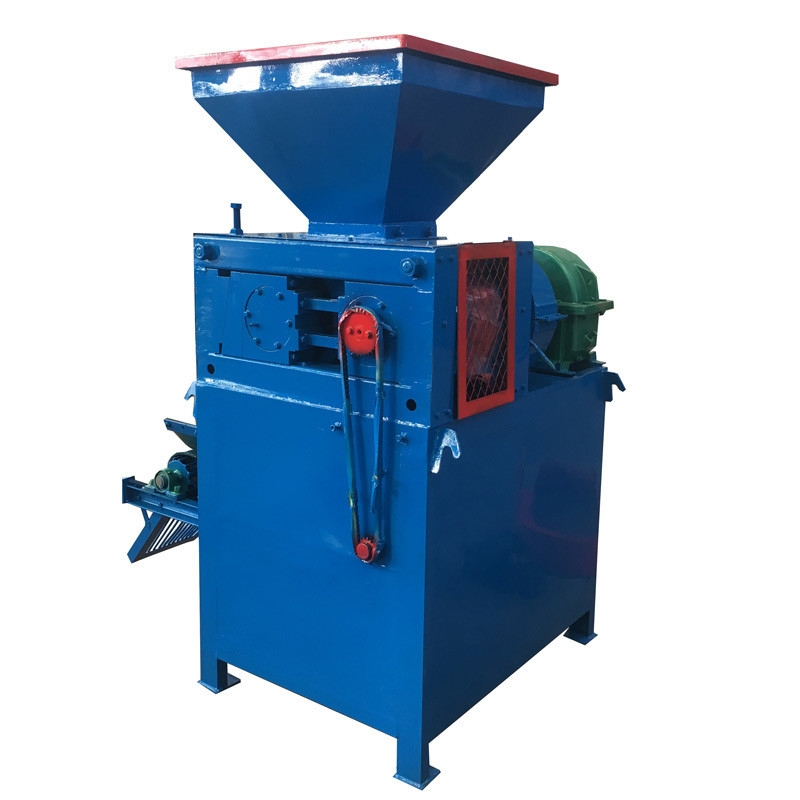

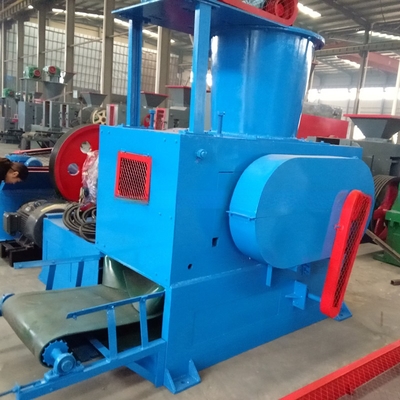

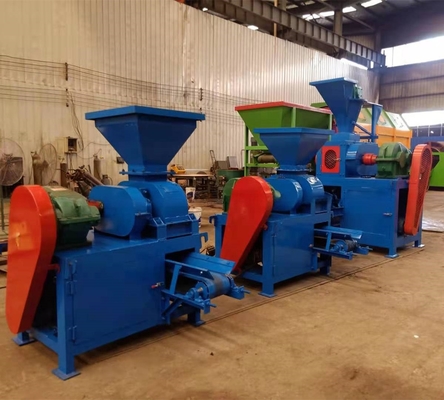

4 Roller Press Iron Ore Briquette Machine with 1-30t/h Material Moisture Less than 50%
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,800.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel box, depends on machine weight. <br>Motor is packed with steel box or wooden box. |
| Supply Ability: | 57 Set/Sets per Quarter |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Manufacturing Plant, Energy & Mining |
|---|---|---|---|
| Weight (KG): | 860 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Production Capacity: | 1-30t/h | Motor Type: | AC Motor |
| Warranty: | 1 Year | Product Name: | Quartz Stone Ball Press Machine Press To Oval Oblate Or Pillow |
| Keyword: | Quartz Stone Ball Press Machine | Voltage: | 380v 415v |
| Material Moisture: | Less Than 50% | Color: | Client's Required |
| Application: | Fuel, Metallurgy,chemical Industry,coal And Refractories Industries | Installation: | Under Engineers Guidance Use Briquette Machine |
| Roller Diameter: | 290-1000mm | Briquette Shape: | Oval, Pillow And Oblate Iron Briquettes Etc |
| Material Size: | Coal Size Less Than 5mm | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
high pressure roller press coal briquette machine / 4 roller press iron ore briquette machine
The coke pressing machine is widely used in industries such as refractories, power plants, metallurgy, chemical industry, energy, transportation, and heating, etc. The shaped products made by coke briquette machine factory is energy-saving, environmentally friendly, easy to transport, and improves the utilization of waste materials, with good economic and social benefits. Besides, the molded materials produced by the ball pressing machine are energy-saving and environment-friendly and convenient to transport. It improves the utilization rate of waste materials, and have good economic benefits and social benefits.

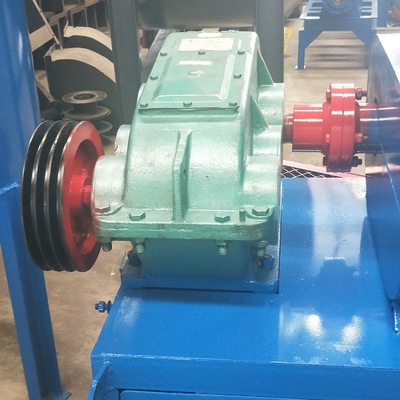

This series of coke pressing machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
Saving energy mineral powder briquette machine for sale:
| Model | Reducer | Roller size | Power (Kw) | Yield (t/h) | Roller Material | Roller pressure (t/cm) |
| XM290 | ZQ300 | Φ290 | 5.5 | 0.8-2 | 65Mn | 1 |
| XM360 | ZQ350 | Φ360 | 7.5 | 2-3.5 | 65Mn/9Cr2Mo | 1 |
| XM400 | ZQ400 | Φ400 | 11 | 4-5 | 65Mn/9Cr2Mo | 1 |
| XM430 | ZQ400 | Φ430 | 11 | 5-7 | 65Mn/9Cr2Mo | 1-2 |
| XM500 | ZQ500 | Φ500 | 18.5-30 | 6-8 | 65Mn/9Cr2Mo | 1-2.5 |
| XM650 | ZQ650 | Φ650 | 22 | 8-12 | 65Mn/9Cr2Mo | 1-2.5 |
| XM750 | ZQ750 | Φ750 | 30-75 | 12-18 | 65Mn/9Cr2Mo | 1-2.5 |
| XM850 | ZQ850 | Φ850 | 55-90 | 18-25 | 65Mn/9Cr2Mo | 1-2.5 |
| XM1000 | ZQ1000 | Φ1000 | 75-130 | 25-30 | 65Mn/9Cr2Mo | 2-2.5 |
Standard export packing,Spare parts in wooden case,big machine loaded incontainer,large machines use nude packing,cover with plastic cloth.We export through Qingdao Port,also can be nominated by customer.We have superior cargo agent to arrange the sea shipment for each client,competitive price,secure transportation.
