Gold Separator Trommel Screen for Alluvial Gold Mining Equipment Trommel Washing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $3,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Home Use, Energy & Mining, Other | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2021 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor, PLC, Gearbox, Motor | Condition: | New |
| Type: | Gravity Separator, Gold Trommel Screener | Application: | Gold Mining, Gold Mining |
| Voltage: | 380V/415V/440V( As Client Request), 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 920 KG | Warranty: | 1 Year |
| Product Name: | Mobile Gold Trommel Screen | Keyword: | Mobile Trommel Screen |
| Power: | 4kw | Screen Aperture: | 5mm |
| Capacity: | 5-10 Tons Per Hour | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description
Product Description
The alluvial gold mining equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein. It can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.

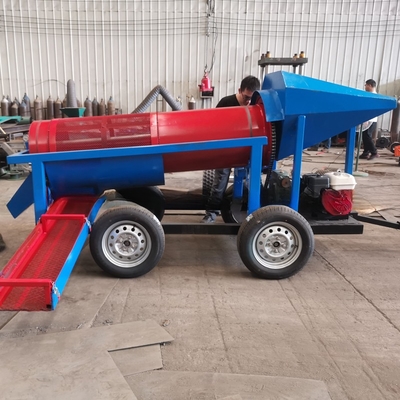

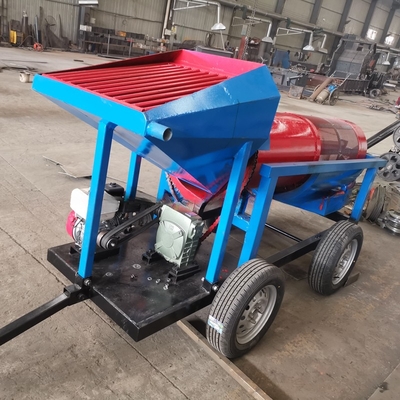

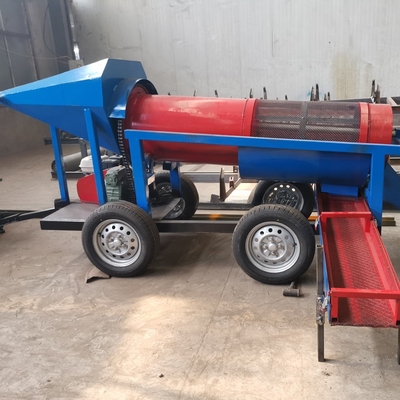

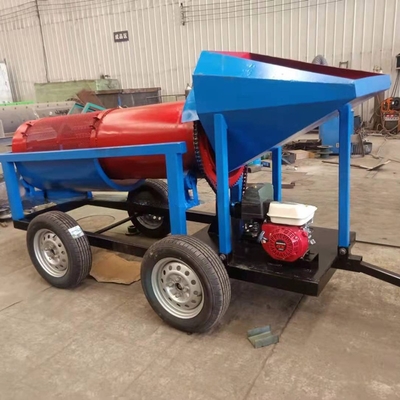

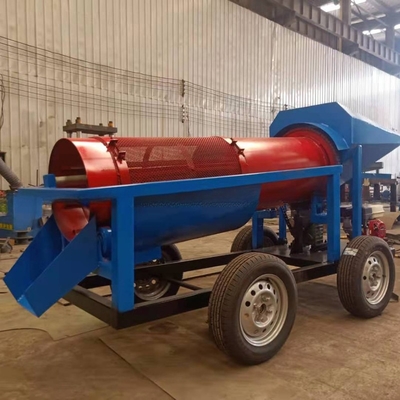

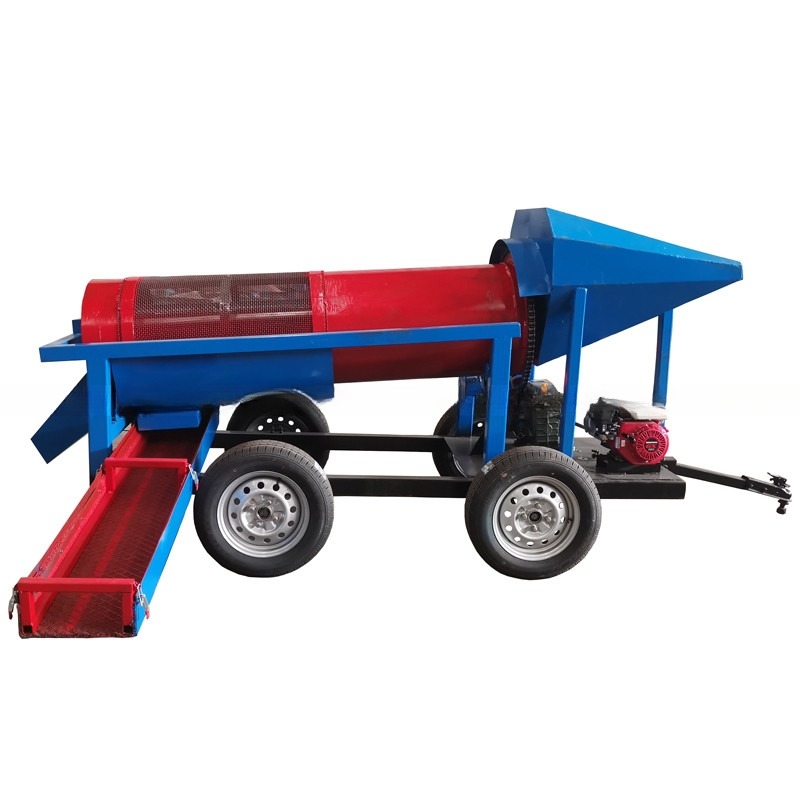

Mobile gold trommel screen is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.
The first section of mini gold trommel is l 910mm steel drum, the second section is 840mm with manganese wire mesh, aperture 5mm,while the third section steel reel 160mm,Round steel diameter 10mm, small opening 50mm, tire diameter , four tires, one axle.
It is equipped with HONDA diesel engine, with reducer, chain, leg, roller. The width of the discharge tank is 400mm and the length 1500mm contains gold panning grass.
Main technical parameter
|
Model
|
Capacity
(t/h)
|
Capacity
(t/h)
|
Diameter
(mm)
|
Length
(mm)
|
Discharge
(mm)
|
Input
(mm)
|
Dimension
((mm)
|
|
GMTS0519
|
5-10
|
5-10
|
500
|
1910
|
0-100
|
≤300
|
3000x1000x1800
|
|
GMTS1020
|
10-30
|
10-30
|
1000
|
2000
|
0-100
|
≤300
|
3390×1400×2140
|
|
GMTS1225
|
30-50
|
30-50
|
1200
|
2500
|
0-100
|
≤300
|
4146×1600×2680
|
|
GMTS1548
|
80-150
|
80-150
|
1500
|
4800
|
0-100
|
≤400
|
8460×2300×2500
|
|
GMTS1848
|
100-200
|
100-200
|
1800
|
4800
|
0-100
|
≤400
|
8460×2300×2700
|
|
GMTS2060
|
200-350
|
200-350
|
2000
|
6000
|
0-100
|
≤400
|
9680×2300x3420
|
