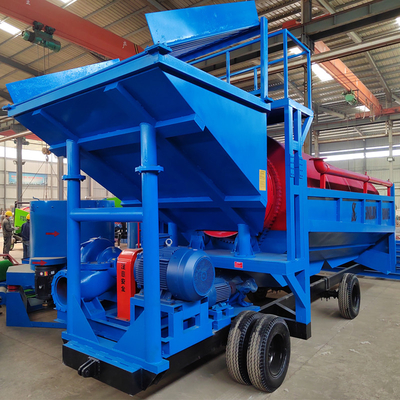

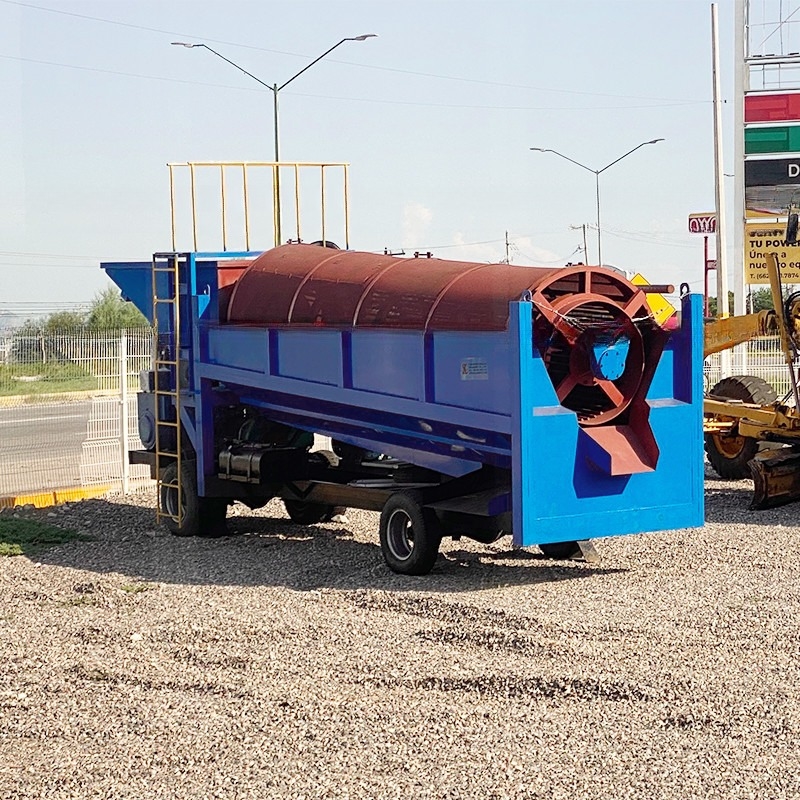

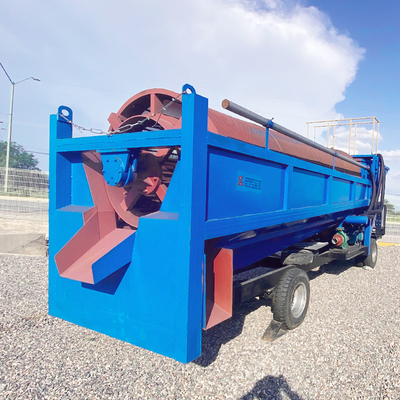

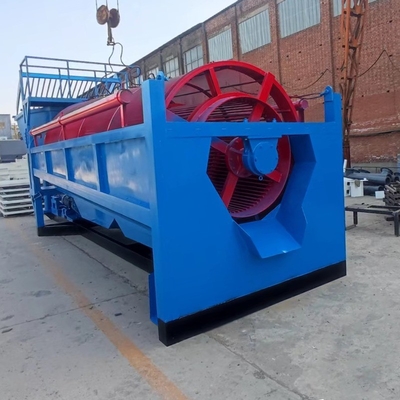

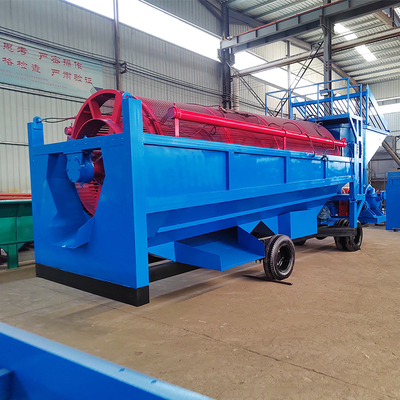

Mini Industrial Trommel Screen Mobile Gold Washing Plant for Waste Management System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00 - $17,500.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. <br>Motor is packed |
| Supply Ability: | 40 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Circular | Application: | Ore, Waste, Mulch, Organics, Bark, MSW, Building Waste |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
| Weight: | KG | Warranty: | 1 Year |
| Product Name: | Mining Machine Industrial Trommel Screen Mobile Gold Washing Plant | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
| Power: | 3-45KW | Dimension: | According To Capacity |
| Installation: | Supply Manual To Guide User | Capacity: | 50-500 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Port: | Qingdao, Dalian, Tianjin, Lianyungang, Dalian, Shanghai, Guangzhou( As Client Request) |
Product Description
Mini Mining Machine Industrial Trommel Screen Mobile Gold Washing Plant
Placer gold machine, placer gold beneficiation machinery as a mining, recovery of sand gold heavy metal machine is currently used in the global scope of sand gold mining areas. They come in many sizes, but they are all designed and made with the aim of recycling gold.
The alluvial gold machine movement is very convenient and can be applied to a variety of terrain, terrain is soft sandy or hard rock, stone or more can be applied, and must also very convenient, can satisfy the development of mining while walking. This method has a good effect on a large range of sand gold mining areas, which can save more production costs and increase mining efficiency.
Gold washing trommel working principle::
1. Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.
2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.
3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.
| Model | Capacity (t/h) | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
| GMTS0519 | 5-10 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |
| GMTS1020 | 10-30 | 10-30 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
| GMTS1225 | 30-50 | 30-50 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
| GMTS1548 | 80-150 | 80-150 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
| GMTS1848 | 100-200 | 100-200 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
| GMTS2060 | 200-350 | 200-350 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
| The gold washing machine can be used for gold washing and screening. The gold washing machine offer an expanded processing capacity that rivals all competitor mobile gold wash plant trommel equipment. The gold washing machine has an average of 100-300 m³/h OR 170-510 tons per hour based upon 1.7 tons of material weight per cubic meter conversion. |
| Input of raw materials | |
| Motor
|
| Screen mesh
| |
| Gold washing mat |
| Fine Size Gold Recovery System Quantity: 2- 4 pcs
| |
| Gold shaking table is a gravity dressing machine,which has high separation efficiency.It is designed to wet gravity-based separation of minerals and other granular materials. Gold shakint table does not need reagent compared with the traditional process as well as it can make the materials concentrated at one time. Gold shaking table is mainly composed of bed head, electromotor, adjusting gradient device, bed surface, ore chute, water chute, rifle bar and lubricating system |
| Powering system
| |
| Mercury Amalgamator |
| Gold Smelting Furnace Moulds: 100g; 200g; 500g; 1000g
| |
if you need more photos and video , please click here to contact me :
if you need more photos and video , please click here to contact me :
if you need more photos and video , please click here to contact me :
Question 1: Can you give me a solution and quotation?
Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
Question 2: Way of payment
Answer: Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
Question 3: What’s the delivery time after I pay the deposit ?
Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
Question 4: How long of your machine quality guarantee terms?
Answer: Equipment from Zhengzhou Sinolion Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.
| | |
| Small Gold Trommel Screen | Centrifugal concentrator | Shaking Table |
