Hydraulic Coal Briquette Machine will pass coal powder on to the two pressure roller without binder. The two sides and roll rotation, in both the rotating roll, Coal powder enter the ball roll mode, with the roll rotation, material pressure on a small become larger, when coal powder to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the coal powder becomes coal briquettes.
 |
Dry Powder Quicklime Fines Charcoal Briquette Making Machine with and Visit Any Time
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00 - $120,000.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel box, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 36 Set/Sets per Month briquette making machine |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Building Material Shops, Manufacturing Plant, Energy & Mining |
|---|---|---|---|
| Showroom Location: | Canada, United States, Mexico, Russia, Kenya, Nigeria, Australia | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Condition: | New | Production Capacity: | 1-10t/h |
| Motor Type: | AC Motor | Dimension(L*W*H): | Based On Different Model Briquette Machine |
| Warranty: | 1 Year | Briquette Shape: | Oval, Pillow And Oblate |
| Roller Diameter: | 150-240mm | Roller Material: | 9Cr2Mo/High Chromium Alloy |
| Applicable Material: | Lime, Silicon, Manganese Powder, Lime Powder, Iron Ore, Dry Powder | Material Size: | Less Than 3mm |
| Material Moisture: | Less Than 10% | Spare Parts: | Supply Whole Life Of Coal Briquette Machine |
| Service Life: | Supply Whole Life Of Coal Briquette Machine | Factory Visit: | Any Time |
| Local Service Location: | Canada, United States, Mexico, Russia, Australia, Kenya, Nigeria | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Product Introduction
Hydraulic Coal Briquette Machine also named dry power coal briquette machine. The Hydraulic Coal Briquette Machine mainly applies on the briquette making of non-ferrous metal and ferrous metal mineral powder, it enters the furnace directly to increase the additional value. All metallurgy industry waste and accessory that need furnace use ball briquetting machine. Such as dedusting ash, pool mud, oxide, slag, iron flavor powder, aluminum ash powder, silicon manganese ore powder, etc. Pressed powder materials into a ball to reduce dust and facilitate transport. Such as iron powder, charcoal, clay, coke breeze, coal, lime powder, etc.
Working Principle
Hydraulic Coal Briquette Machine Working Principle
Product Parameters
Type | Diameter(mm) | Roller Width(mm) | Power(kw) | Capacity(kg/h) |
LYQ 0.5 | Φ299 | 180 | 18.5 | 500 |
LYQ 1.0 | Φ367 | 183 | 37 | 1000 |
LYQ 1.5 | Φ367 | 183 | 45 | 1500 |
LYQ 2.0 | Φ399.5 | 252 | 45 | 2000 |
LYQ 3.0 | Φ522 | 196 | 55 | 3000 |
LYQ 5.0 | Φ700-738 | 210/225 | 75 | 5000 |
LYQ 6.0 | Φ738 | 225 | 90 | 6000 |
LYQ 8.0 | Φ758 | 225 | 110 | 8000 |
LYQ 10 | Φ858 | 300 | 110 | 10000 |

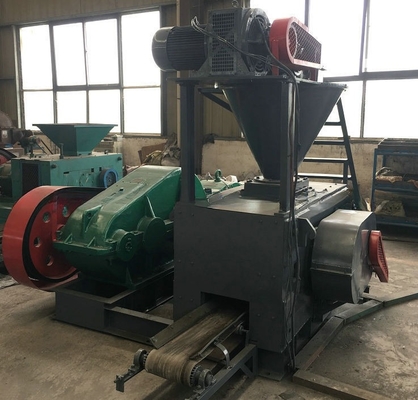

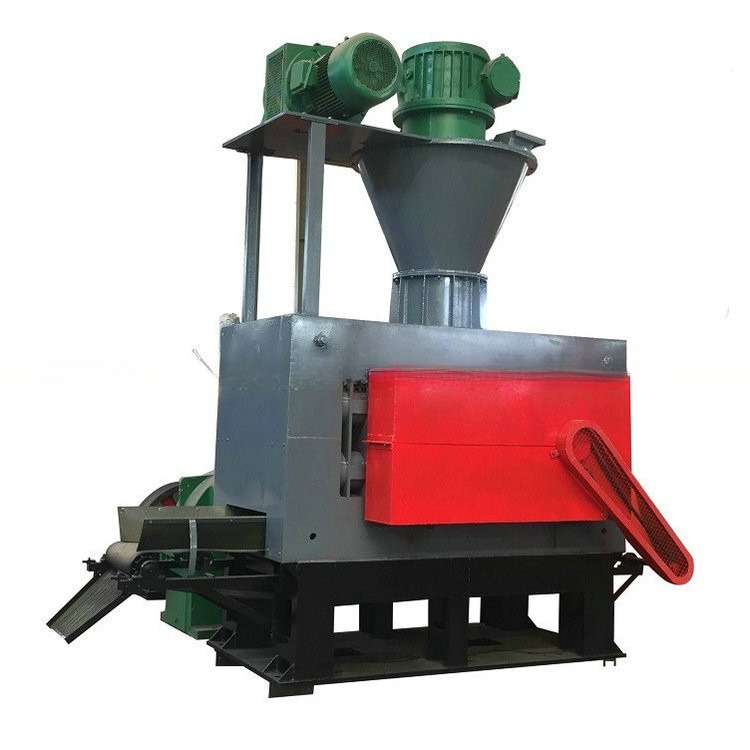

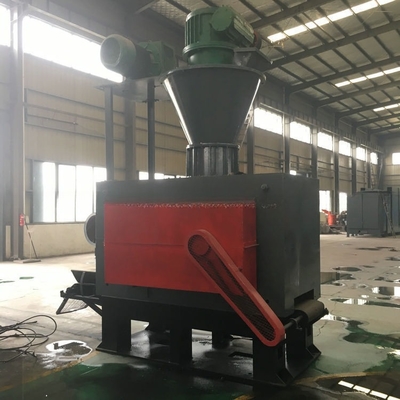

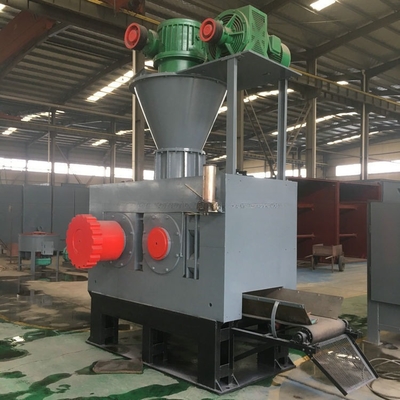

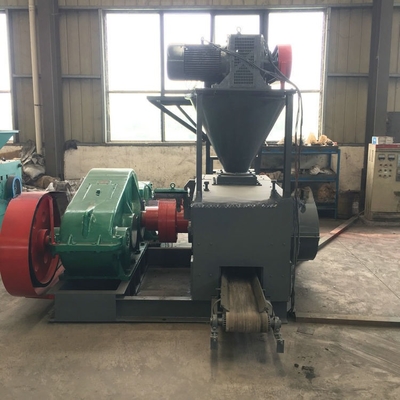

Product Details Show
Hydraulic coal briquette machine requirment of raw material
1. Material size about 80 to 200 mesh.
2. Materials are not allowed has hard metal objects to avoid damaging the pressure roller.
3. Return materials should not have too much clumps(≤3mm), return materials is not more than 50% in the feeding materials.
4. Supply of materials must be sufficient, use variable speed screw feeder is better.
Hydraulic System
Working Site
Main Products
Briquette machine
100% Technical support
Briquette machine roller
Long-term Spare parts supply
Briquette mesh belt dryer
Whole briquette line Design
Wheel grinding mixer
Mix raw material with binder
Rotary drum Dryer
Dry raw material before briquetting
Vertical briquette dryer
Another choose of briquette dryer
Company Profile
Want to Know more details about this product
