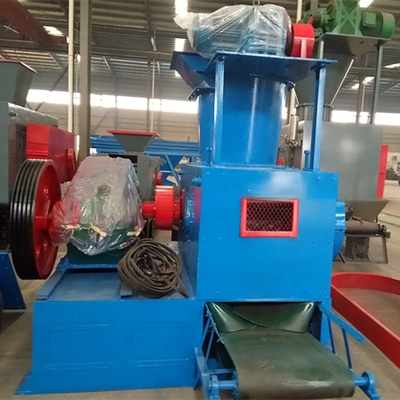

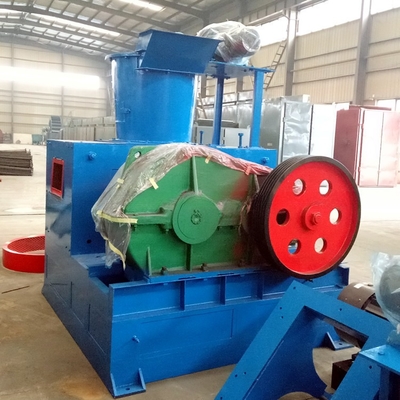

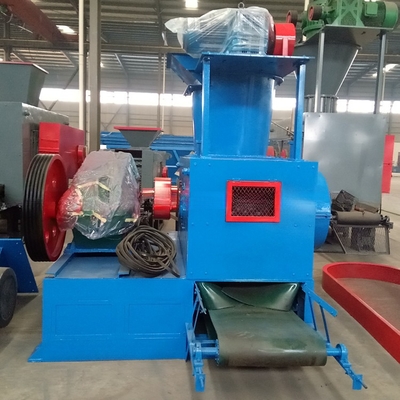

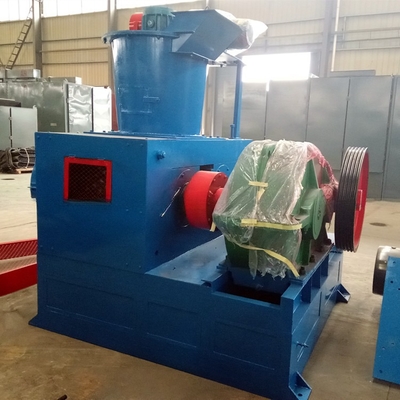

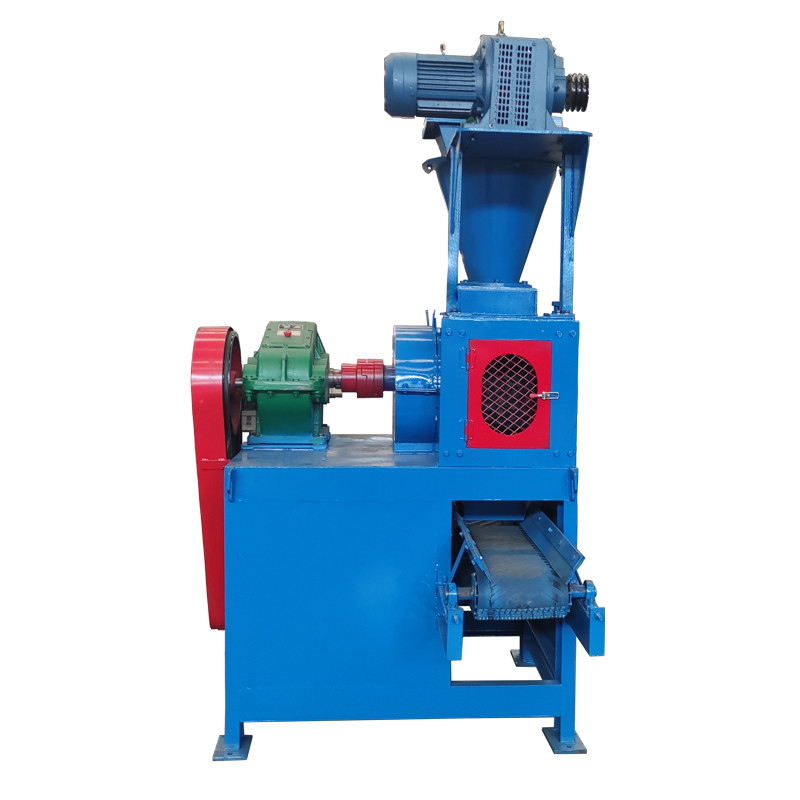

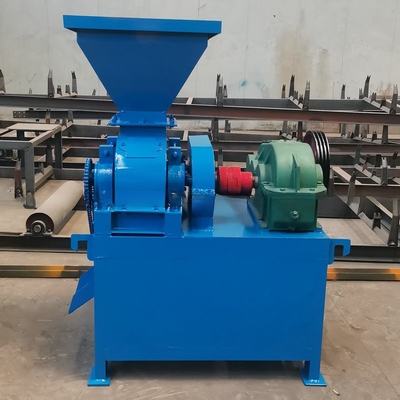

Make Oval Oblate Pillow Ground Square Ball Briquettes Pellets Iron Briquette Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion fines briquette machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $120,000.00/sets >=1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Energy & Mining |
|---|---|---|---|
| Weight (KG): | 800 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Gearbox, Motor | Condition: | New |
| Production Capacity: | 1-30t/h Iron Briquette Machine | Motor Type: | AC Motor |
| Dimension(L*W*H): | Based On Different Model Fines Briquette Machine | Warranty: | 1 Year |
| Briquette Shape: | Oval, Pillow And Oblate Ground Square Ball Pellets Briquettes | Roller Diameter: | 290-1000mm |
| Roller Material: | 65Mn/9Cr2Mo | Applicable Material: | Iron, Silicon, Manganese, Gypsum, Fluorite, Clay |
| Material Size: | Less Then 5mm | Material Moisture: | Less Then 18% |
| Spare Parts: | Supply Whole Life Fines Briquette Machine | Service Life: | Supply Whole Life Fines Briquette Machine |
| Factory Visit: | Any Time | ||
Product Description
Briquette machine can be used to press coal powder, iron powder, coke, mineral powder, iron ore fines, metal dust, mill scale, iron oxide skin, carbon powder, slag, gypsum, tailing, sludge, kaolin clay, activated carbon, coke breeze and other powder and waste material .The briquette machine is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc. industries. The final products have features of environmental friendly, easy to transport, improving the waste recycling, and good economic and social benefits.
Feature :
Briquette machine unique design is with lowest operating cost and very less maintenance for years makes it very successful & different from others.
| Model | Reducer | Roller size | Power (Kw) | Yield (t/h) | Roller Material | Roller pressure (t/cm) |
| XM290 | ZQ300 | Φ290 | 5.5 | 0.8-2 | 65Mn | 1 |
| XM360 | ZQ350 | Φ360 | 7.5 | 2-3.5 | 65Mn/9Cr2Mo | 1 |
| XM400 | ZQ400 | Φ400 | 11 | 4-5 | 65Mn/9Cr2Mo | 1 |
| XM430 | ZQ400 | Φ430 | 11 | 5-7 | 65Mn/9Cr2Mo | 1-2 |
| XM500 | ZQ500 | Φ500 | 18.5-30 | 6-8 | 65Mn/9Cr2Mo | 1-2.5 |
| XM650 | ZQ650 | Φ650 | 22 | 8-12 | 65Mn/9Cr2Mo | 1-2.5 |
| XM750 | ZQ750 | Φ750 | 30-75 | 12-18 | 65Mn/9Cr2Mo | 1-2.5 |
| XM850 | ZQ850 | Φ850 | 55-90 | 18-25 | 65Mn/9Cr2Mo | 1-2.5 |
| XM1000 | ZQ1000 | Φ1000 | 75-130 | 25-30 | 65Mn/9Cr2Mo | 2-2.5 |
Packing Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.
Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.
