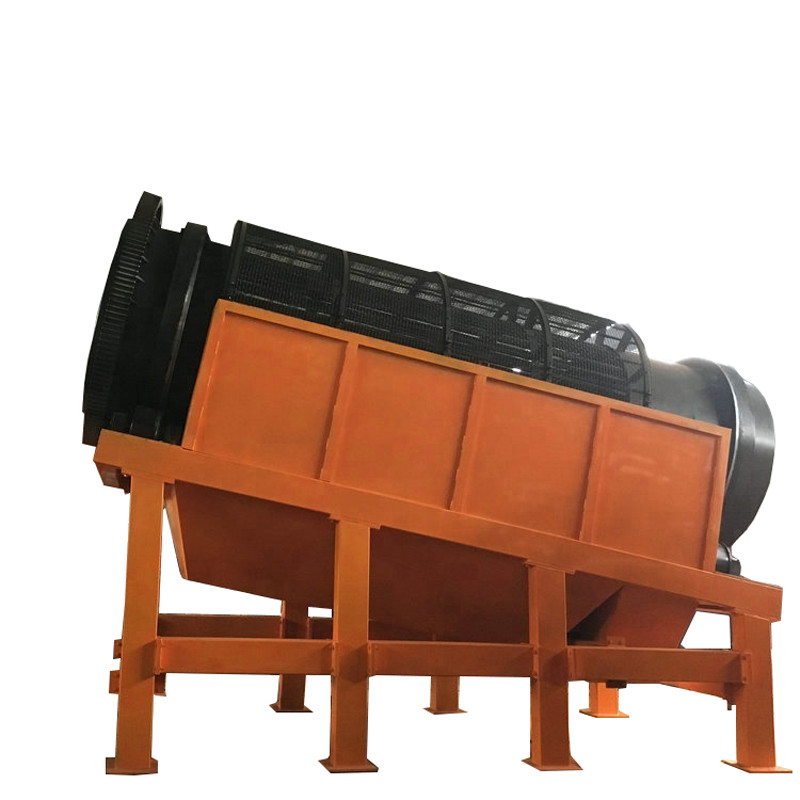

Construction Works Rotary Trommel Drum Sifter Sieve Drum Screening Machine for Mining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,000.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Circular | Application: | Ore, Waste, Mulch, Organics, Bark, MSW, Building Waste |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
| Weight: | 1230 KG | Warranty: | 1 Year |
| Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel | Power: | 3-45KW |
| Dimension: | According To Capacity | Installation: | Supply Manual To Guide User |
| Capacity: | 50-500 Tons Per Hour | Feeding Size: | Less Than 300mm |
| Discharge Size: | As Request | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description
Efficient and economical sand drum screen and sand screening washing machine price
Product Application
In the process of using sand washing machine, it runs slowly and evenly, has little impact vibration, works smoothly, and its installation is simple. Sometimes it does not even need special foundation. It can be placed directly on the flat floor or under the floor and silo. The sand washing machine is easy to close dust collection, minimal maintenance, simple maintenance and long service life. It is a commonly used equipment in the classification of refractories, coal, river sand and sand blocks.
working principle
The sand washing machine is simple in structure, mainly composed of motor, reducer, drum device, frame and so on. The circular drum device is tilted on the frame, and the motor is connected with the drum device through the coupling through the reducer. When the material enters the circular drum, the circular drum rotates under the action of the motor. The material moves in the direction of the drum rotation. The sieve holes installed in the drum are different in size. Then the materials with different sizes are gradually screened and separated with the rotation of the drum. The final product material is discharged from the discharge port under the drum to complete the screening work.
Features of sand washing machine
1. The screen hole is not easy to be blocked.
2. Stable operation and low noise.
3. Simple structure and convenient maintenance.
4. High reliability of the machine, less one-time investment.
5. Special screen is adopted for high screening efficiency and long service life.
More details of sand washing machine
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |
GTS1015 | 50 | 3.0 | 1000 | 1500 | 0-100 | ≤300 | 2600×1400×1700 |
GTS1020 | 100 | 4.0 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
GTS1225 | 160 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
GTS1530 | 250 | 7.5 | 1500 | 3000 | 0-100 | ≤300 | 4460×1900×2820 |
GTS1545 | 350 | 11 | 1500 | 4500 | 0-100 | ≤400 | 5960×1900×3080 |
GTS1848 | 450 | 15 | 1800 | 4800 | 0-100 | ≤400 | 6500×2350×4000 |
GTS2055 | 600 | 22 | 2000 | 5500 | 0-100 | ≤400 | 7500×2550×4800 |
GTS2265 | 800 | 30 | 2200 | 6500 | 0-100 | ≤400 | 8500×2750×5000 |
Design and produce sand washing machine based on customer special requirement
We put more focus on individual customers, provide shorter lead times, and take relatively small orders.
▽ Cost Efficiency: as a real and reliable manufacturer of sand washing machine, we do foreign trade with a Comparatively Reasonable Price.
▽ Commercial Principle: we keep win-win principle with our customers.
▽ Strong R&D Team: we will specially design for you according to your raw materials, self construction of factory building and capitalbudget to ensure the applicability of sand washing machine.
▽ Offer most suitable and efficient sand washing solution according to your specific requirements.
▽ On-time shipment and pre-shipment products quality safeguards.
