High Capacity Compost Sieve Trommel Screen Machine for White Color Sorting and Sieving
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00 - $28,750.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | United States, Brazil, Mexico, Colombia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Circular | Application: | Ore |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
| Weight: | 4000 KG | Warranty: | 1 Year |
| Product Name: | Hot Selling Factory High Capacity Compost Drum Trommel Screen | Keyword: | Compost Trommel Screen And Belt Conveyor |
| Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel | Dimension: | According To Capacity |
| Installation: | Supply Manual To Guide User | Capacity: | 60m³/h |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | After-sales Service Provided: | Field Installation, Commissioning And Training |
Product Description
Good quality High capacity compost sieve trommel screen machine for sell

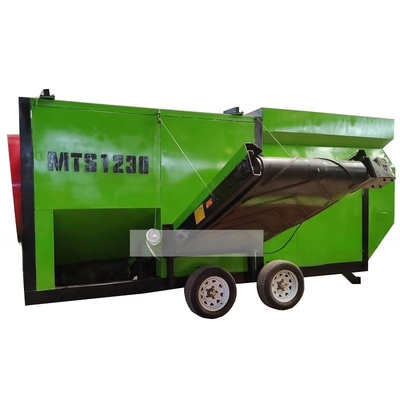

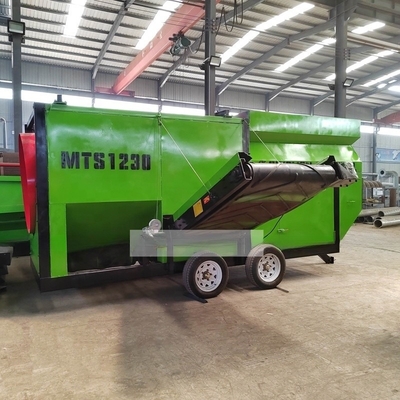

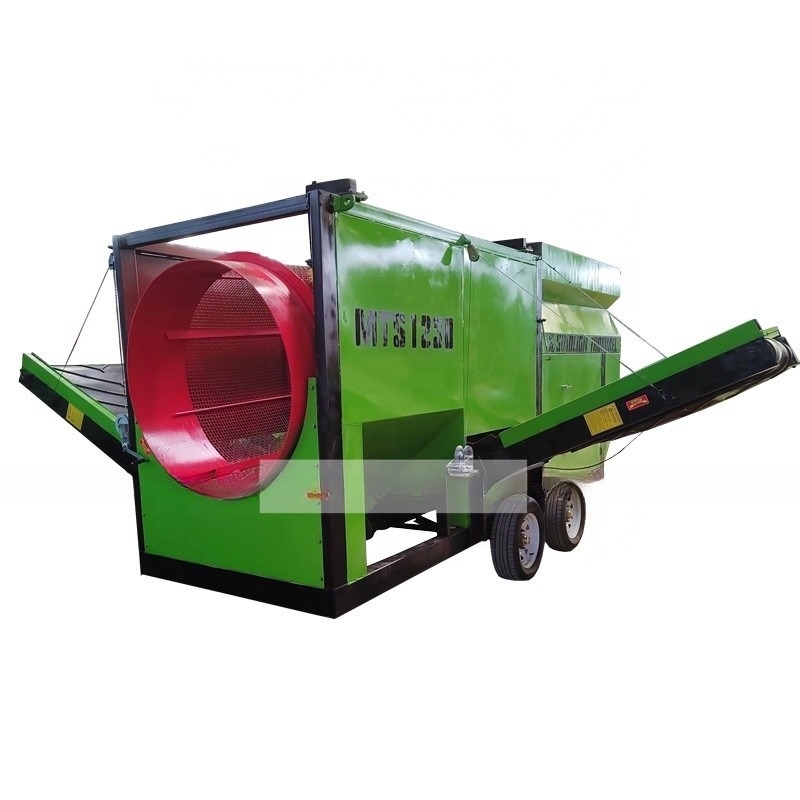

The MTS1230 mobile gold panning screen is one of the best selling trommel screens in our factory. It can be used to screen compost, wood or cow, sheep manure, etc.

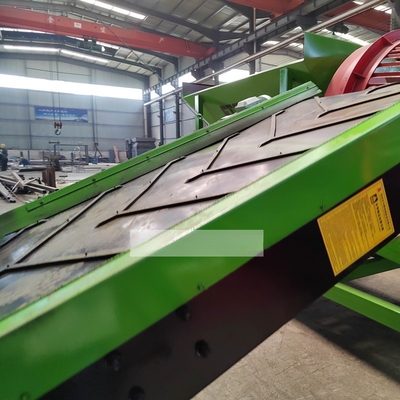

It including a 4kw electric type,screen area is 8.3m2,processing capacity is also 60m³/h per hour,product size is 5400*2100*2700mm. It has left and right conveyor belts and brushes.
The working principle of the trommel screen is that after the material enters the trommel screen from the feed hopper, under the action of power, the material enters the trommel screen and is screened into materials of specific particle size. The screened material is transported out by the side belt conveyor
| Model | Trommeldiameter | Trommel length | Capacity | motor power (KW) | Weight | Dimensions |
| MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
| MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
| MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
| MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
| | |
