Gold Beneficiation Equipment with Stainless Steel Screen Material 's Best Choice
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00 - $27,500.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, United States, Brazil, Mexico, Russia, Kenya |
|---|---|---|---|
| Condition: | New | Type: | Gold Screening |
| Production Capacity: | 98% | Voltage: | 380v/415v/440v |
| Dimension(L*W*H): | Depends On Gold Trommel Screening | Weight: | 1700 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Pump, PLC, Engine |
| Key Selling Points: | Easy To Operate | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Power: | 3-45kw | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
| Application: | Coal, Coke, Mulch, Organics, Bark, MSW, Building Waste | Installation: | Supply Manual To Guide User |
| Capacity: | 50-500t/h | Feeding Size: | Less Than 300mm |
| Discharge Size: | As Request | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Product Name: | Gold Beneficiation Equipment, Mobile Gold Trommel Screening Machine | ||
Product Description

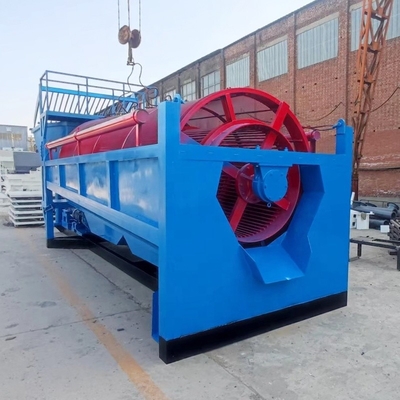

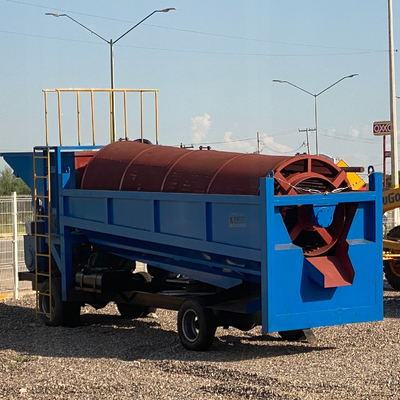

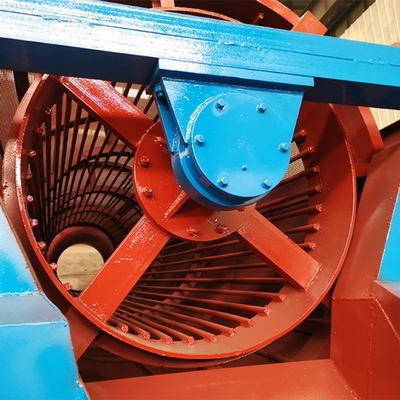

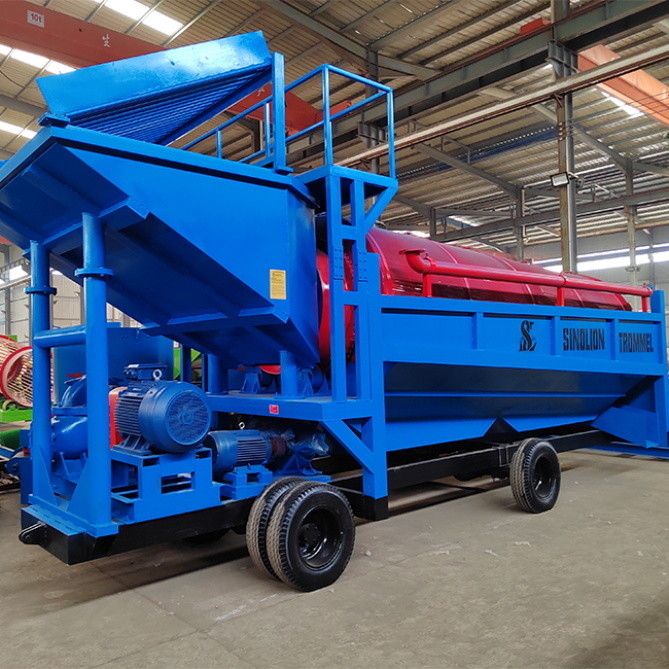

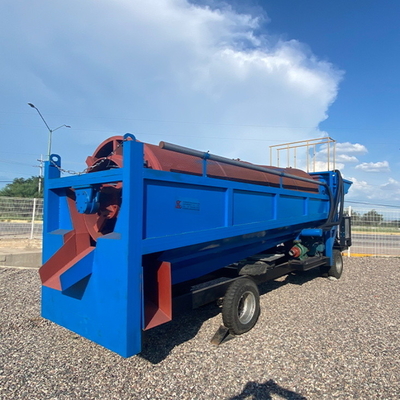

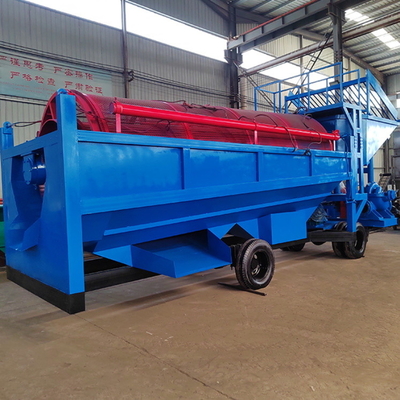

Gold beneficiation equipment, mobile gold trommel screening machine in China
Placer gold machine, placer gold beneficiation machinery as a mining, recovery of sand gold heavy metal machine is currently used in the global scope of sand gold mining areas. They come in many sizes, but they are all designed and made with the aim of recycling gold.
The alluvial gold machine movement is very convenient and can be applied to a variety of terrain, terrain is soft sandy or hard rock, stone or more can be applied, and must also very convenient, can satisfy the development of mining while walking. This method has a good effect on a large range of sand gold mining areas, which can save more production costs and increase mining efficiency.
Gold washing trommel working principle::
1. Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.
2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.
3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.
| Model | Capacity (t/h) | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
| GMTS0519 | 5-10 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |
| GMTS1020 | 10-30 | 10-30 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
| GMTS1225 | 30-50 | 30-50 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
| GMTS1548 | 80-150 | 80-150 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
| GMTS1848 | 100-200 | 100-200 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
| GMTS2060 | 200-350 | 200-350 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
if you need more photos and video , please click here to contact me :
if you need more photos and video , please click here to contact me :
if you need more photos and video , please click here to contact me :
Question 1: Can you give me a solution and quotation?
Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
Question 2: Way of payment
Answer: Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
Question 3: What’s the delivery time after I pay the deposit ?
Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
Question 4: How long of your machine quality guarantee terms?
Answer: Equipment from Zhengzhou Sinolion Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.
| | |
| Small Gold Trommel Screen | Centrifugal concentrator | Shaking Table |
